Supermaket Racking Shelf Panel Roll Forming Machine With Hydraulic Cutting Bending

 1). 5 Ton Hydraulic Uncoiler

1. Machine frame: welding structure with shot lastingtreatment

2. Components: Base, brake device, inner hole support, Expanding / tighten device

3. Weight capacity: 5 Ton

4. I.D: 500mm

5. Max. coil width: 500mm

6. O.D: Max. 1500mm

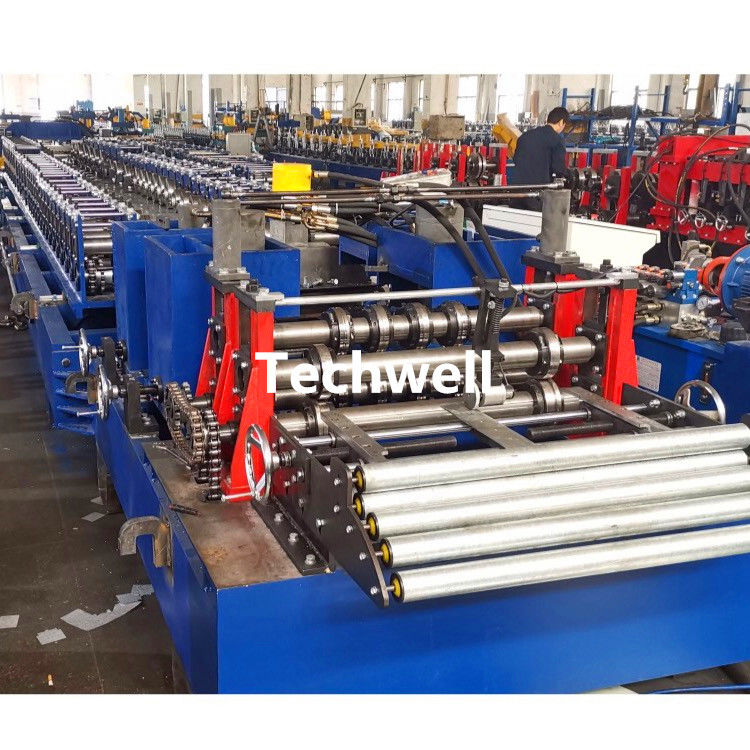

 2). Servo Feeding & Punching Device

1. 2 Rollers pinch feeding,
2. 5 rollers leveling (Upper 2 rollers, lower 3 rollers)
3. Punching & notching mould: SKD11 material

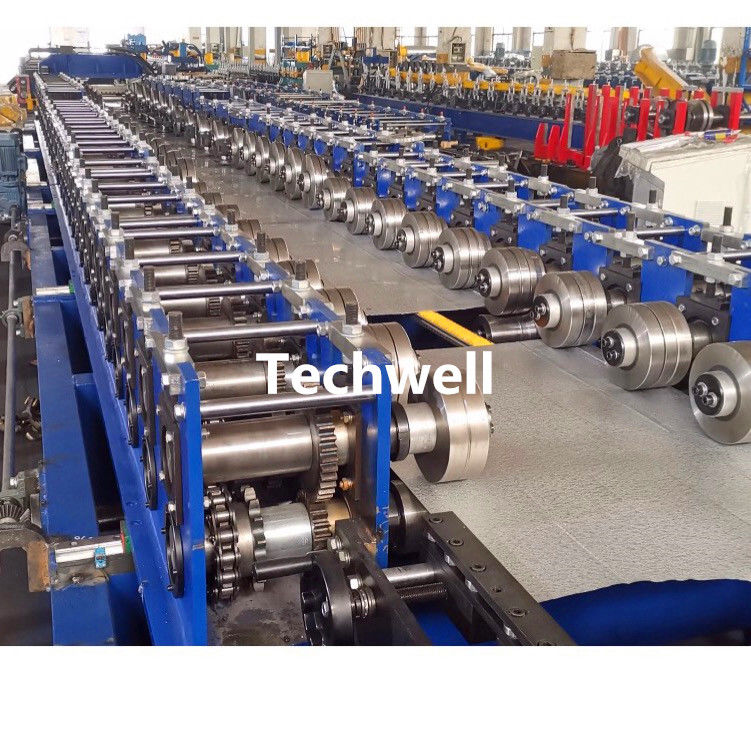

 3). Main Roll Forming Part

1. Forming material thickness: 0.6-1.4mm
2. Forming material type: GI or Carbon Steel
3. Machine Frame: high grade steel welded and tempering treatment
4. Shaft Material: 45# high grade steel tempering treatment (HB220-260)
5. Shaft Diameter: Φ 80mm
6. Bearing: HRB bearing ( Top Chinese brand )
7. Roller Material: high grade GCr15 steel, quenched and heated process HRC58-62
8. Forming Station: ≈ 24 stations
9. Forming Speed: 0-15m/min, excluding cutting bending time
10. Forming Motor: ≈11KW
11. Drive type: Chain Drive

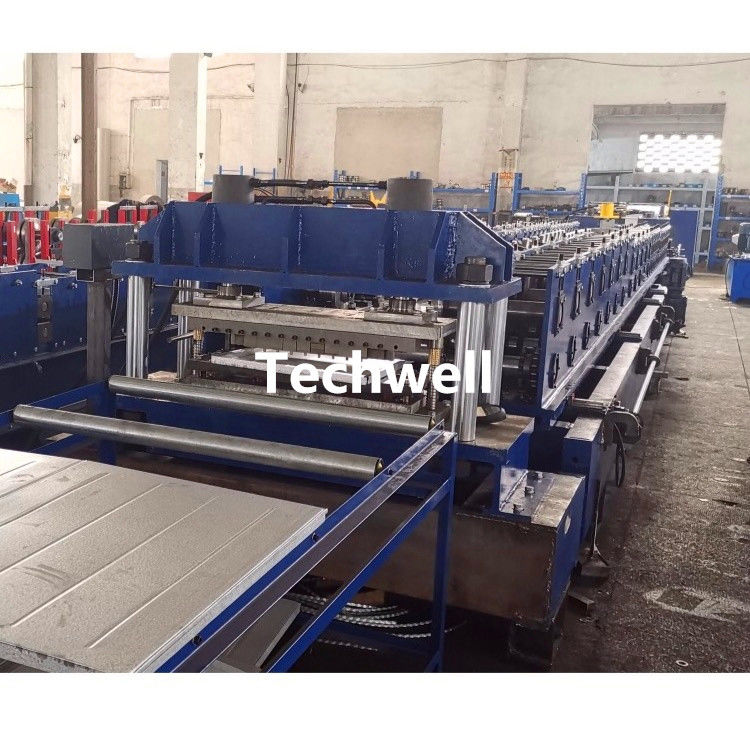

 4). Hydraulic Cutting Bending & Hydraulic Station

1. Cutting type: hydraulic cutting & bending
2. When cutting, bending, machine stop
3. cutting tolerance: 10m+/-1.5mm
4. Hydraulic Power: 15KW

 5). PLC Control System

1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

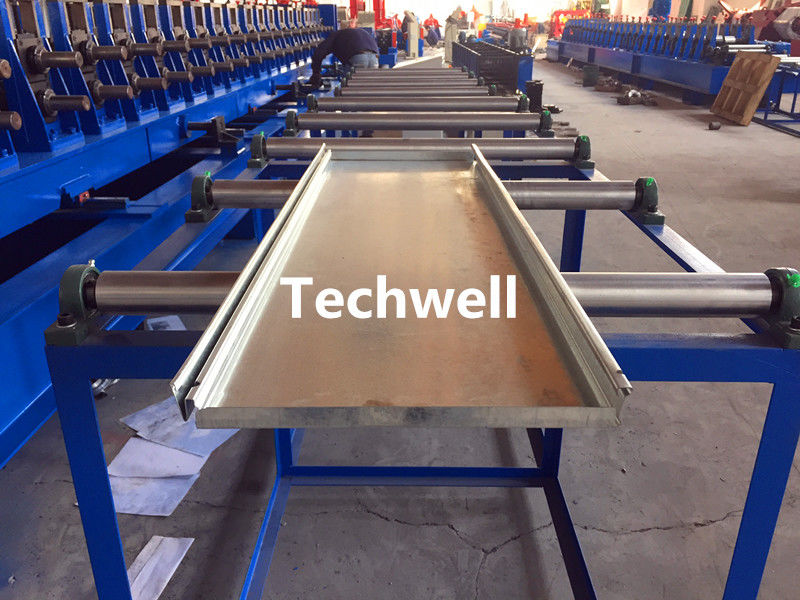

 6). Run-out Table

1. Form: Steel welding structure, no-power exit rack
2. Quantity:1 pieces
