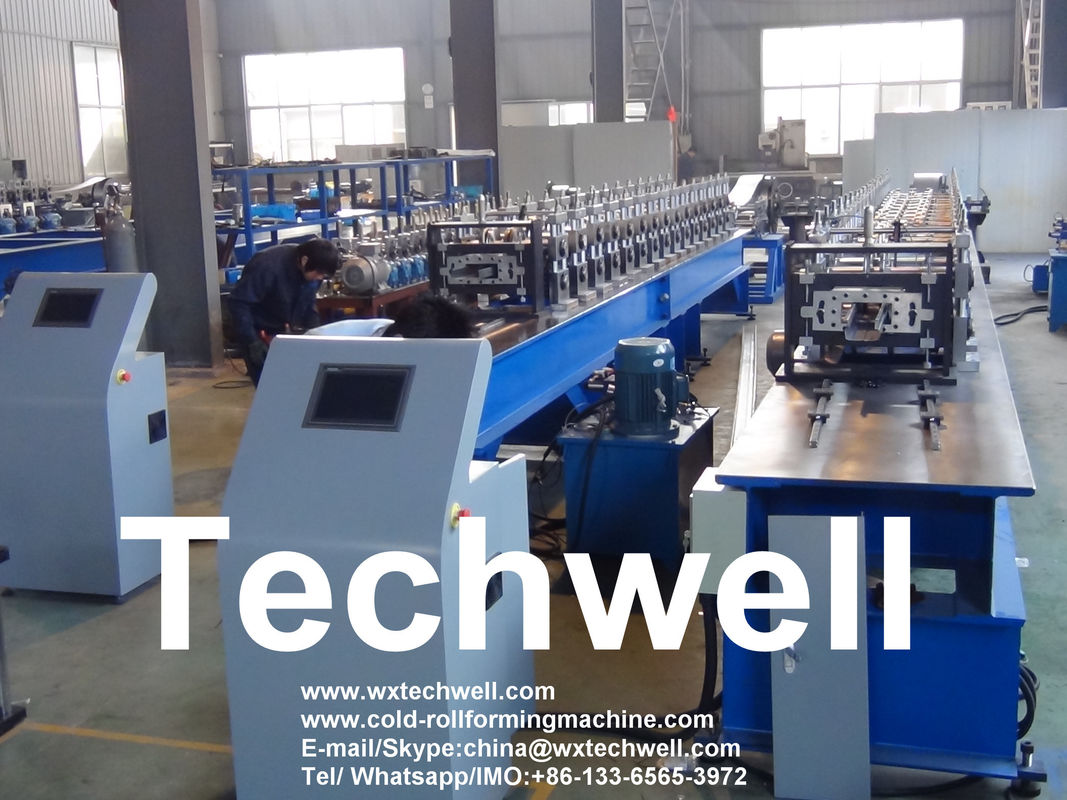

Touch Screen PLC Control Rack Upright Roll Forming Machine For Hydraulic Station Power 5.5kw With Thickness 1.5-2.5mm
Description of Rack Roll Forming Machine
Rack Upright Roll Forming Machine is a kind of Racking Roll Forming Machine, which can also be called as shelf roll forming machine.
The products of the Rack Upright can be widely used. We can always see its application in factories, warehouses, make shift houses, plants and so forth.
Main Specifications of Rack Forming Machine
|
SN
|
Item
|
Specification
|
||
|
1
|
Coil
|
1.0-2.0mm carbon steel
|
||
|
2
|
Profile dimension
|
80*120mm
|
||
|
3
|
Profile tolerance
|
+-1.0mm
|
||
|
4
|
Rollers
|
19 groups, Gcr15 bearing steel, quenching (HRC55-58)
|
||
|
5
|
Cutting blade
|
Cr12Mov, vacuum quenching (HRC58-62)
|
||
|
6
|
Drive method
|
by gearbox
|
||
|
7
|
Main motor power
|
Abt 22KW
|
||
|
9
|
Control system
|
Panasonic PLC, Yaskawa VFD, Omron encoder
|
||
|
10
|
Weight/ Container
|
Abt 15 tonne/ 1*40'GP and 1*20'GP
|
||
Working Flow of Rack
Decoiler – Feeding - Leveling– Servo Feeding –Hydraulic Punching – Pinch Feeding --- Main Roll Forming – Straightness Device – Hydraulic Cutting -- Run out table
Main Components
| Hydraulic Decoiler | 1 Unit |
| Leveling | 1 Unit |
| Servo Feeding | 1 Unit |
| Hydraulic Punching | 1 Unit |
| Main Roll Forming Machine | 1 Unit |
| Hydraulic Cutting | 1 Unit |
| Hydraulic Station | 1 Unit |
| Electrical Control System | 1 Unit |
| Run out table | 1 Unit |
Rack Upright Profile Drawing
Application
Storage rack, storage shelf, Steel rack,steel shelf, rack beam
