Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots

15m/min Shelf Roll Forming Machine

Werehouse Shelf Roll Forming Machine

Warehouse Rack Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-RACK100

Contact Us

Request A Quote
Product Details
Material:
GI Or Carbon Steel
Material Thickness:
1.5-2.0mm
Profile Size:
Adjustable
Forming Stations:
16 Stations
Work Speed:
0-15m/min
Cutting Type:
Flying Cutting
Punching Type:
Hydraulic Punching
Drive Type:
Gearbox Driving
Product Description

Upright Rack Roll Forming Machine Line is for producing upright racks for storage warehouse pallet rack system. The rack profile sizes and thickness is adjustable and customized.



    Introduction of Upright Rack



Upright racks, also called uprights or upright columns, are varied in size and design depend on the load capacity and styles, such as L shape type is light capacity, C shape type is Medium capacity, Special C type for heavy capacity. Holes can be tear drop design and slots are punched during producing so that the load beams can be mounted into the upright racks. The heavy upright racks are for industrial usage and thickness up tp 2.5mm or 3.0mm.



    Upright Rack Profile Drawing

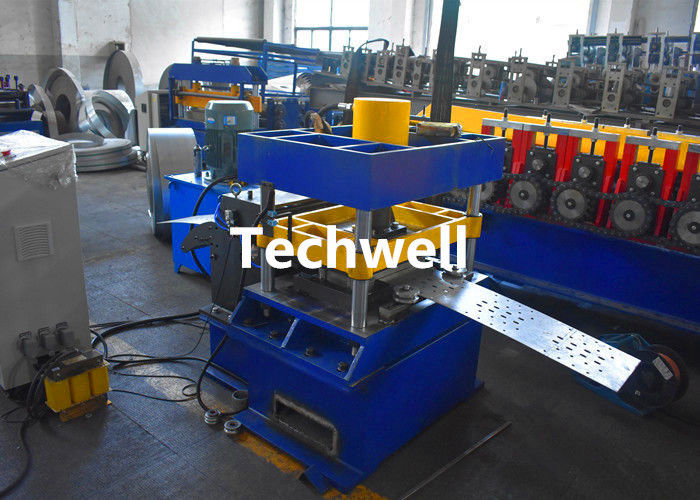

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots 0



   The Layout of Upright Rack Roll Forming Machine

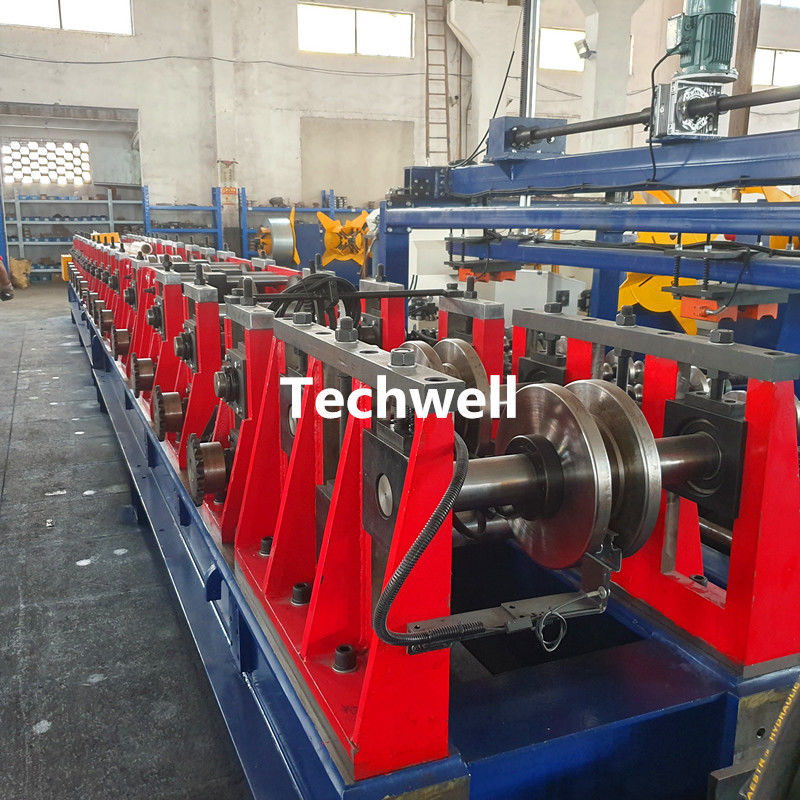

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots 1



   Main Specifications of Upright Rack Roll Forming Machine



Upright Racking Roll Forming Machine
Item Especificación Configuración optional
Machinable Material : A) Galvanized Coil Thickness(MM):1.5/1.8/2.0/2.5/2.75/3.0
B) PPGI
C) Cold-rolled Steel
D) Stainless Steel
E) Aluminum
F) Carbon steel Coil
Yield strength : 250 - 350 Mpa
Tensil stress : 350 Mpa-500 Mpa
Nominal forming speed(M/MIN) 0-15 excluding punching
Forming station : 18 * According to your profile drawings
Decoiler : Manual decoiler * Hydraulic decoiler (Optional)
Punching system Hydraulic punching station * Punching press (Optional)
Main machine motor brand : Shanghai Dedong (Sino-Germany Brand)
Driving system : Chain drive * Gearbox drive (Optional)
Machine structure: Forged Iron station * Cantilever type (Optional)
Rollers’ material : Steel #45 * GCr 15 (Optional)
Cutting system : Post-cutting
Frequency changer brand : Yaskawa * Siemens (optional)
PLC brand : Siemens
Power supply : 380V 50Hz * Or Customized
Machine color : Industrial blue * Or Customized



    Main Components of Upright Rack Production Line



 Hydraulic Decoiler  1 Unit
 Leveling  1 Unit
 Servo Feeding  1 Unit
 Hydraulic Punching ( or Press Machine)  1 Unit
 Main Roll Forming Machine  1 Unit
 Hydraulic Cutting  1 Unit
 Hydraulic Station  1 Unit
 Electric Control System  1 Unit
 Run out Table  1 Unit



   The finished Rack Profile

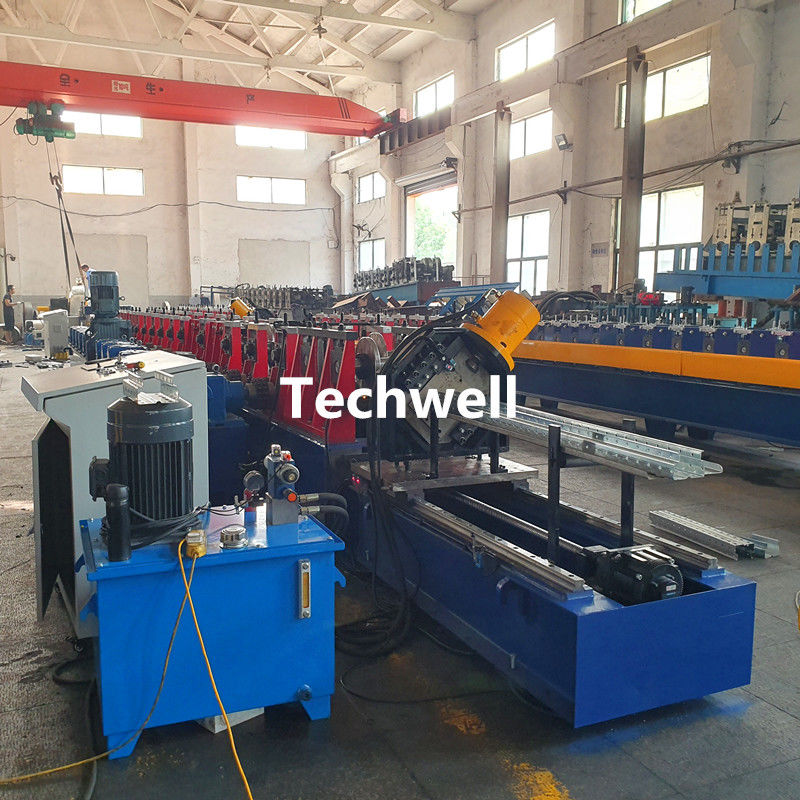

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots 2



   More Upright Rack Forming Machine Pictures

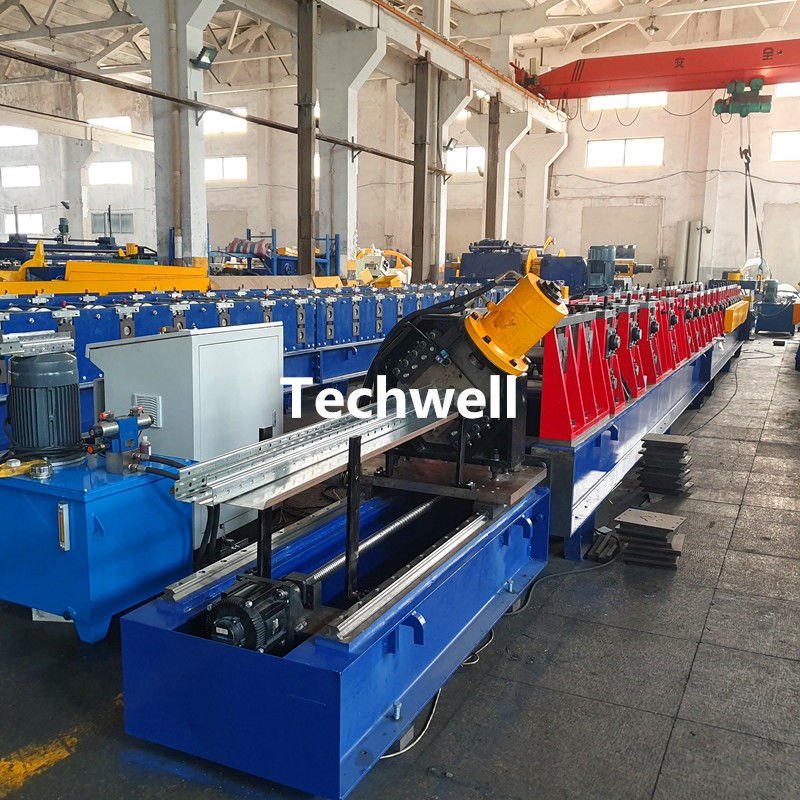

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots 3

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots 4

Werehouse Shelving Upright Rack Roll Forming Machine With Flying Cutting, for Tear Drop Holes Slots 5
