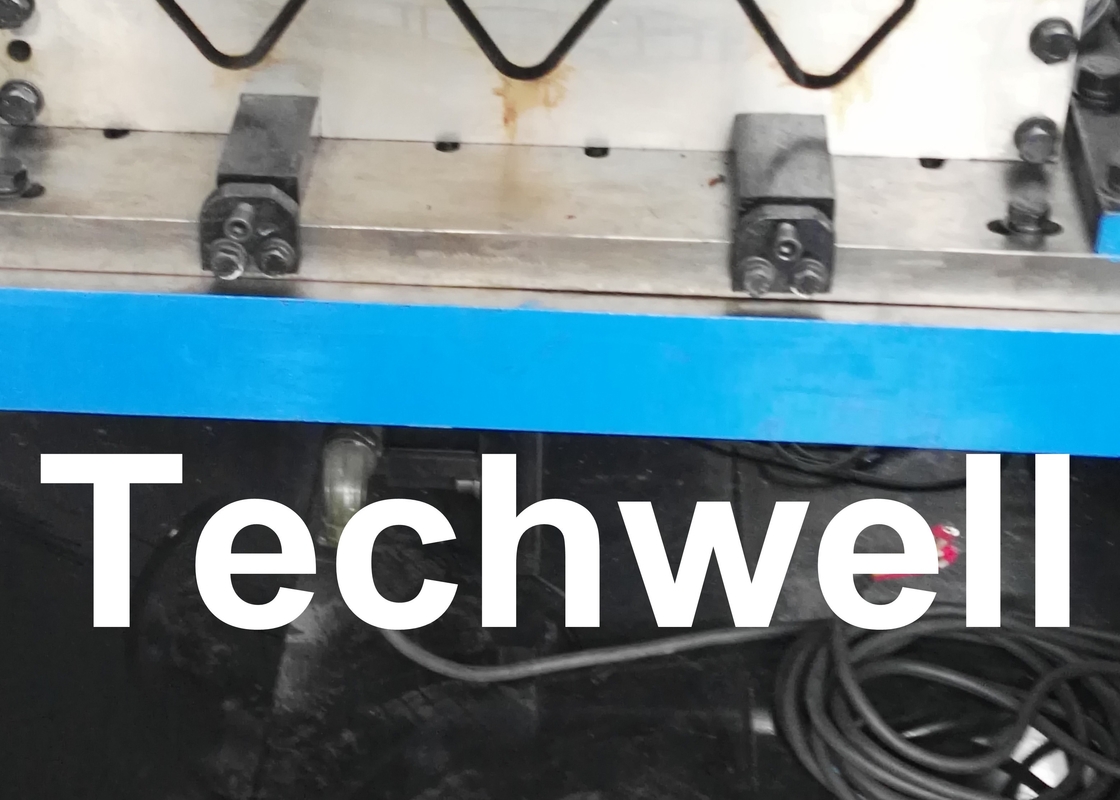

Galvanized Steel Guardrail Roll Forming Machine with PLC control

Galvanized Steel Guardrail Roll Forming Machine with PLC control
Galvanized Steel Guardrail Roll Forming Machine with PLC control

Large Image :  Galvanized Steel Guardrail Roll Forming Machine with PLC control

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-W312
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
High Light:

Galvanized Guardrail Roll Forming Machine

,

4mm Guardrail Roll Forming Machine

,

10m/min highway guardrail machine

Galvanized Steel Highway Guardrail Roll Forming Machine Construction Machine





   Summary of W Beam Guardrail Roll Forming Machine





The machine consists of coil loading, leveling, flatting and head cutting, punching, cold roll forming, hydraulic cutting, automatic stacking system, electric control system, and hydraulic system. Machine flatting hot roll steel, punching, cold roll forming and cutting off the highway guardrail as required with high production efficiency, automation and low labor intensity.



Feeding trolley

Function: send the coil material to the position of the uncoiler and help to wear the coil material on the uncoiler spindle.

The feeding trolley is composed of a walking chassis and a lifting rack.



The trolley seat is on two rails, and the lifting material rack is pushed by the oil cylinder to lift the material coil to the same height as the spindle axis of the uncoiler. The motor drives the walking chassis to move, and the material coil is wound on the spindle of the uncoiler. After the feeding is in place, the coil hold the material and tighten it. Then the material frame will be lowered and the trolley drived back to the next loading position.



Uncoiler

Function: Unwinding and discharging

Structure: The uncoiling machine is hydraulic expansion and contraction type. The material is fed into the uncoiler reel and then the drum is expanded and tightened with auxiliary support device. It is active rotation with damping.





  • Material Thickness: 2-4mm
  • Forming Station: 15 excluding the feeding rollers and leveling rollers
  • 7 Rollers leveling
  • Principal Axis Diameter: ¢100mm
  • Working Speed: 10-12m/min
  • Main Power: 30KW
  • Leveling Power: 2.2KW
  • Hydraulic Power: 15KW
  • Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
  • Gross Weight of Machine: about 18 Ton
  • Voltage: 380V, 3 Phase 50Hz








   Main Components



  • Hydraulic Decoiler ------------------------------------------ 1 Unit
  • Leveling and Feeding Guide -------------------------------- 1 Unit
  • Punching Device ------------------------------------------- 1 Unit
  • Roll Forming Machine -------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------------ 1 Unit
  • PLC Contol System ---------------------------------------- 1 Unit
  • Runout Table ---------------------------------------------- 1 Unit
  • Spare Coupling -------------------------------------------- 1 Unit





Galvanized Steel Guardrail Roll Forming Machine with PLC control 0









   Reference Drawing









Galvanized Steel Guardrail Roll Forming Machine with PLC control 1








Galvanized Steel Guardrail Roll Forming Machine with PLC control 2





   Our Advantage





  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience







  Machine Picture









Galvanized Steel Guardrail Roll Forming Machine with PLC control 3

Galvanized Steel Guardrail Roll Forming Machine with PLC control 4

Galvanized Steel Guardrail Roll Forming Machine with PLC control 5

Galvanized Steel Guardrail Roll Forming Machine with PLC control 6











  Factory Pictures







Galvanized Steel Guardrail Roll Forming Machine with PLC control 7

Galvanized Steel Guardrail Roll Forming Machine with PLC control 8

Galvanized Steel Guardrail Roll Forming Machine with PLC control 9









Galvanized Steel Guardrail Roll Forming Machine with PLC control 10









  Certificate









Galvanized Steel Guardrail Roll Forming Machine with PLC control 11
