Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine

China Wuxi Techwell Machinery Co., Ltd certification
China Wuxi Techwell Machinery Co., Ltd certification
Wuxi TECHWELL provide good quality roll forming machines, till now, the machines have been working 3 years, no any break, we are very satisfied.

—— Javier



I'm Online Chat Now

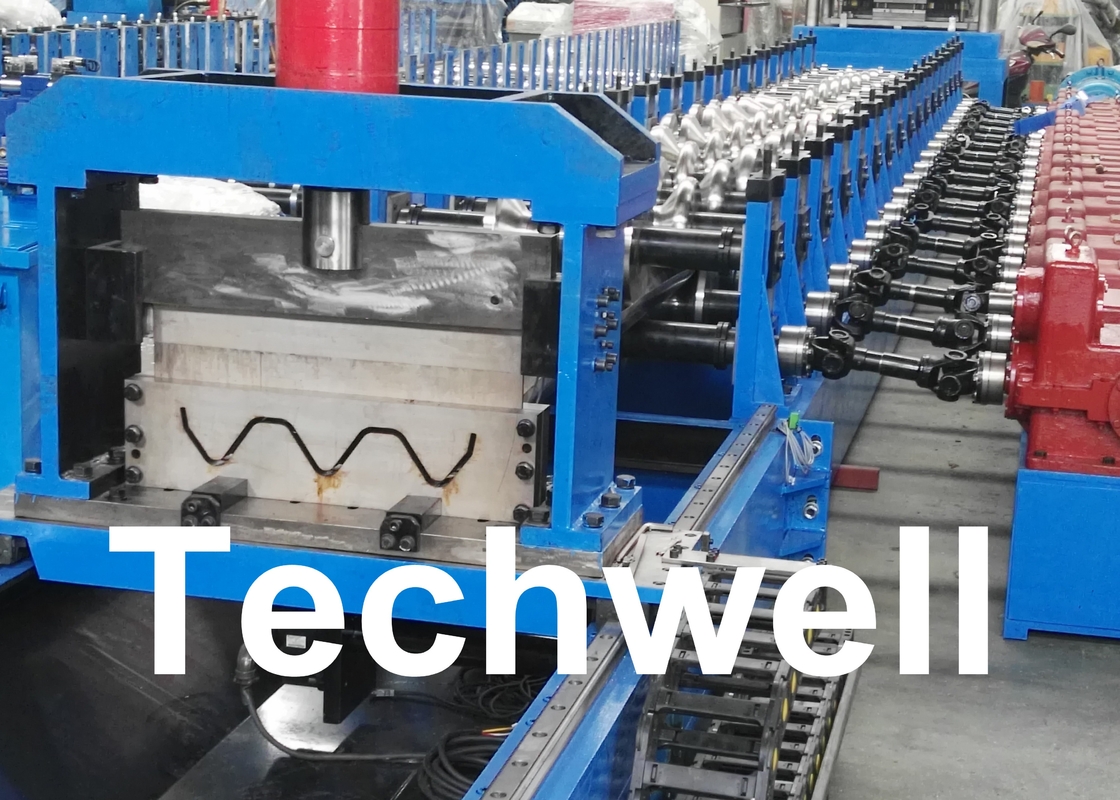

Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine

Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine
Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine

Large Image :  Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-W400
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: T/T
Supply Ability: 20 sets
Detailed Product Description
Cutting Method: Traking Hydraulic Cutting Material Thickness: 2-4mm
Principal Axis Diameter: ¢100mm Working Speed: 0 -12m/ Min
Hydraulic Power: 15KW Drive: Gearbox Drive
High Light:

W Beam highway guardrail forming machine


12m/min highway guardrail forming machine


Safety Road highway guardrail machine

Automatic Safety Road Steel W Beam Making Machine Highway Guardrail Roll Forming Machine


   A). Main Specifications

Item Name Description
1 Decoiler Capacity:5 tons
2 Material Steel Coil
3 Thickness 0.5-2.5mm
4 Transmission Chain/Gear/Gearbox
5 Speed 10-15m/min
6 Roller Steel with quenched treatment,chromed on the surface
7 Shaft steel with tempering treatment
8 Cutting type Hydraulic cutting
9 Cutting material Cr12 with quenched treatment Hardness58°-62°
10 Welding Automatic spot welding
11 Control system PLC
12 Electric brand Delta,Siemens,Schneider
13 Voltage

380V,50HZ,3PH(or as customers' request)




   B). Main Components


This guardrail forming machine mainly consists of decoiler, guide equipment, levelling system, hydraulic station, punching, roll forming system, tracking cutting system, runout table.

  1. Hydraulic Decoiler ----------------------------------------------- 1 Unit
  2. Leveling and Feeding Guide ---------------------------------- 1 Unit
  3. Punching Device ------------------------------------------------- 1 Unit
  4. Roll Forming Machine ------------------------------------------- 1 Unit
  5. Hydraulic Tracking Cutting ------------------------------------- 1 Unit
  6. Hydraulic Station ------------------------------------------------- 1 Unit
  7. PLC Control System --------------------------------------------- 1 Unit
  8. Runout Table ------------------------------------------------------ 1 Unit
  9. Spare Coupling --------------------------------------------------- 1 Unit


   C). Applications


Highway guardrail, w beam, w beam guardrail, crash barrier...



   D). Competitive Advantages


1.Durable and widely used products

2.Simple to operate when assemble

3.Easy to handle the products

4.Direct manufacturer, provide with high quality and best price.

5.Provide sample in free.

6.Products and design solution supplied fast and freely

7.Cutting service.

8.Best design oriented for your special requirements

9.Lifelong technical support

10.Professional team support



   E). More Pictures of Highway Guardrail Former


Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine 0Automatic Safety Road Steel W Beam Highway Guardrail Forming Machine 1


   F). FAQ


1)Q: What is the Warranty Machine ?
A: For our roll forming machine, we have 1 year warranty. If any quality problems in this period ,we will take on the shipping cost and replacement.

2)Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.

4)Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

5) Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.

6) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. We have good reputation in this field for ten years' experience. And you can come to our factory to see the working flow of machine at anytime you need.


   G). More Contact Methods & Reference Videos


Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp /IMO +86-15861597732
