Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin

China Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin supplier
Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin supplier Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin supplier Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin supplier Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin supplier

Large Image :  Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-C300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Coil Thickness: 1.5-3.0mm Raw Material: Galvanized Coil
Forming Stations: 18 Stations (Depend On Profiles) Forming Speed: About 0-15m/min Excluding Punching, Cutting Time
Shaft Diameter: 80mm Drive Type: Chain Drive

Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin






   Main Specifications of C Purlin Roll Forming Machine





  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Machine diameter: about 11500x1500x1300mm ( LXWXH )
  • Weight of machine: about 10 Ton
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: 14
  • Principle axis: 75mm diameter
  • Forming speed: 0-15m/min
  • Drive type: 1.5' chain transmission
  • Roller material: GCr15 steel, quenched  and heated process
  • Main power: 15KW
  • Hydraulic power: 11KW
  • Punching: hydraulic punching
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



   Working Flowing





Manual Decoiler --- Feeding Guide & Leveling Device --- Roll Forming --- Punchign & Cutting --- Run out table





   Main Components





  • Decoiler ----------------------------------------------------------------------- 1 Unit
  • Feeding & Leveling --------------------------------------------------------- 1 Unit
  • Main roll forming machine ------------------------------------------------- 1 Unit
  • Hydraulic punching device ------------------------------------------------ 1 Unit
  • Cutting device --------------------------------------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------------------------------ 1 Unit
  • PLC computer control ----------------------------------------------------- 1 Unit
  • Output table ------------------------------------------------------------------ 1 Unit





    Profile Drawing







Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin

Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin







   Application





C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure







   Our Advantage







High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

Simple to operate when assemble

Easy to handle the products

Direct manufacturer, provide with high quality and best price.

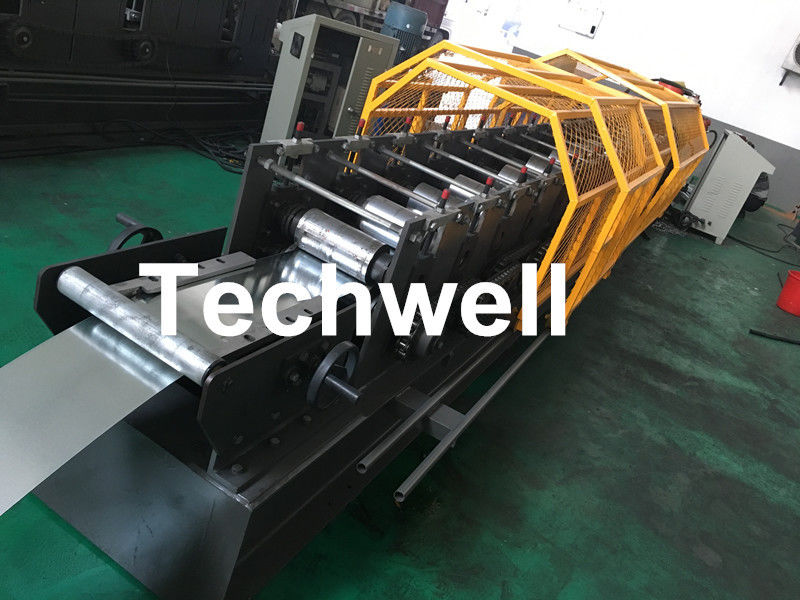

   Machine Pictures



Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin
