Hydraulic Cutting 14 Station C Shape Purlin Roll Forming Machine With Post - Cutting

Hydraulic Cutting 14 Station C Shape Purlin Roll Forming Machine With Post - Cutting

CZ Purlin Roll Forming Machine

C Purlin Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-C300

Contact Us

Request A Quote
Product Details
Roller Material:
GCr15 Steel, Quenched And Heated Process
Forming Station:
About 17
Material Thickness:
1.5-3.0mm
Main Power:
20KW
Product Description

Hydraulic Cutting 17 Stations C Shape Purlin Roll Forming Machine With Post - Cutting



   Main Specifications of C Shape Purlin Roll Forming Machine





  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Machine diameter: about 11500x1500x1300mm ( LXWXH )
  • Weight of machine: about 10 Ton
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: 18 stations
  • Principle axis: 75mm diameter
  • Forming speed: 0-15m/min
  • Drive type: 1.5' chain transmission
  • Roller material: GCr15 steel, quenched and heated process
  • Main power: 11KW
  • Hydraulic power: 7.5KW
  • Punching: hydraulic punching
  • Cutting Type: Hydraulic cutting
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



    Profile Drawing







Hydraulic Cutting 14 Station C Shape Purlin Roll Forming Machine With Post - Cutting 0

Hydraulic Cutting 14 Station C Shape Purlin Roll Forming Machine With Post - Cutting 1









    Working Flow






Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table





   Main Components





  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding & Leveling -------------------------------- 1 Unit
  • Main roll forming machine ------------------------ 1 Unit
  • Hydraulic punching device ----------------------- 1 Unit
  • Hydraulic cutting device -------------------------- 1 Unit
  • Hydraulic Station ----------------------------------- 1 Unit
  • PLC computer control ----------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit

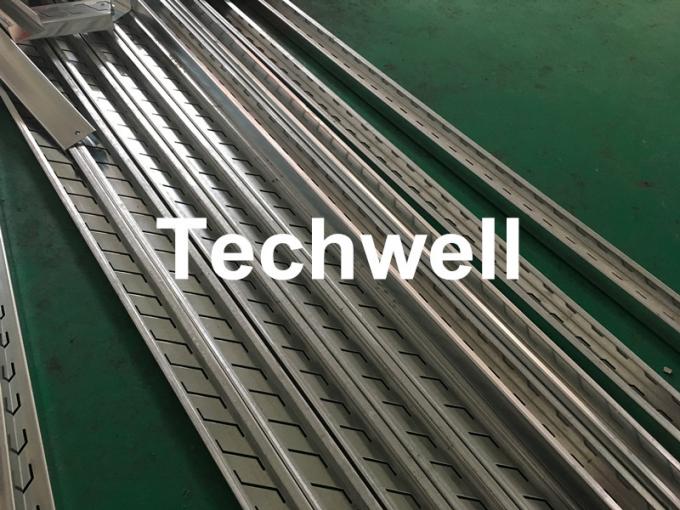

   Application





C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure



Hydraulic Cutting 14 Station C Shape Purlin Roll Forming Machine With Post - Cutting 2





   Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

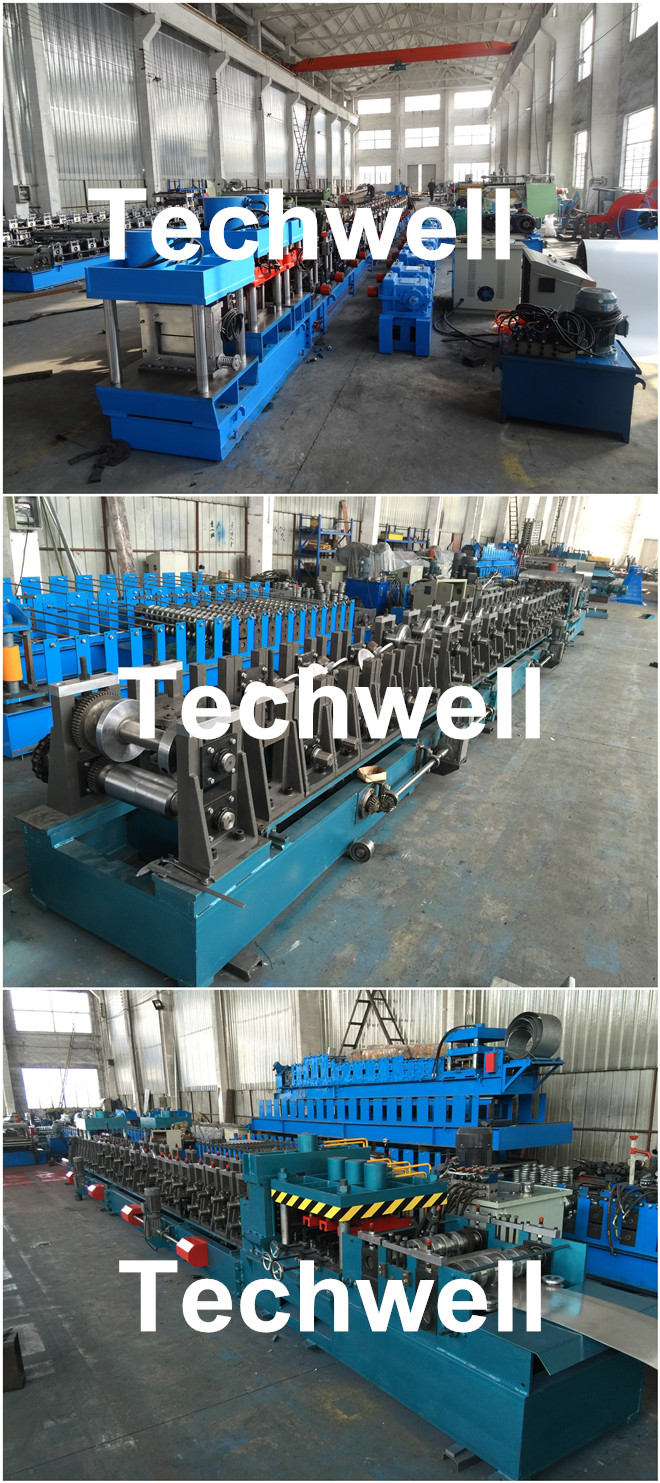

   Machine Pictures
