Custom Steel Lip Channel / C Profile / C Section Roll Forming Machine For GI, Carbon Steel

Custom Steel Lip Channel / C Profile / C Section Roll Forming Machine For GI, Carbon Steel

   Main Specifications of C Section Roll Forming Machine

• Material: GI, Carbon steel
• Material thickness: 1.5-3.0mm
• Machine diameter: about 11500x1500x1300mm ( LXWXH )
• Weight of machine: about 10 Ton
• Decoiler: Manual or hydraulic decoiler ( customer can choose )
• Weight capacity of decoiler: 5 Ton
• Forming station: 14
• Principle axis: 75mm diameter
• Forming speed: 0-15m/min
• Drive type: 1.5' chain transmission
• Roller material: GCr15 steel, quenched  and heated process
• Main power: 15KW
• Hydraulic power: 11KW
• Punching: hydraulic punching
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand

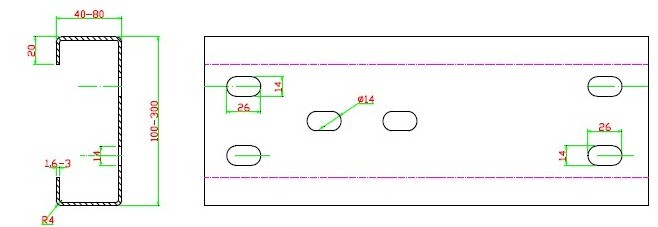

    Profile Drawing

    Working Flow

Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table

   Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding & Leveling -------------------------------- 1 Unit
• Main roll forming machine ------------------------ 1 Unit
• Hydraulic punching device ----------------------- 1 Unit
• Hydraulic cutting device -------------------------- 1 Unit
• Hydraulic Station ----------------------------------- 1 Unit
• PLC computer control ----------------------------- 1 Unit
• Output table ----------------------------------------- 1 Unit

   Application

C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure

   Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

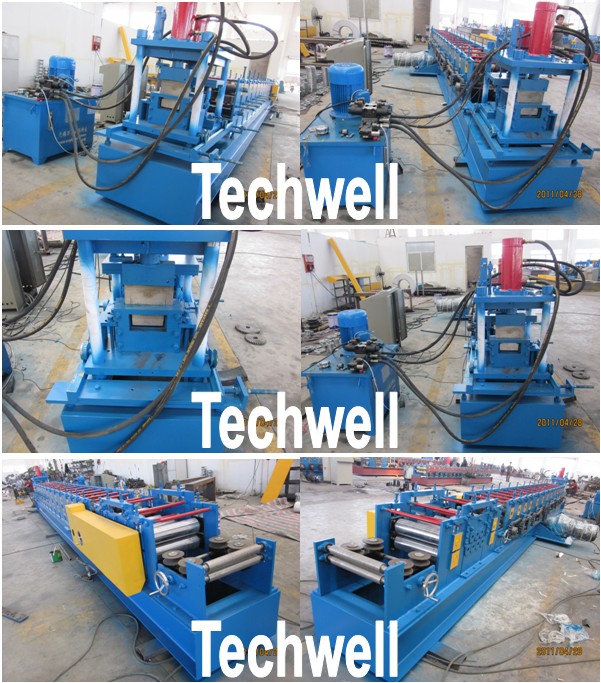

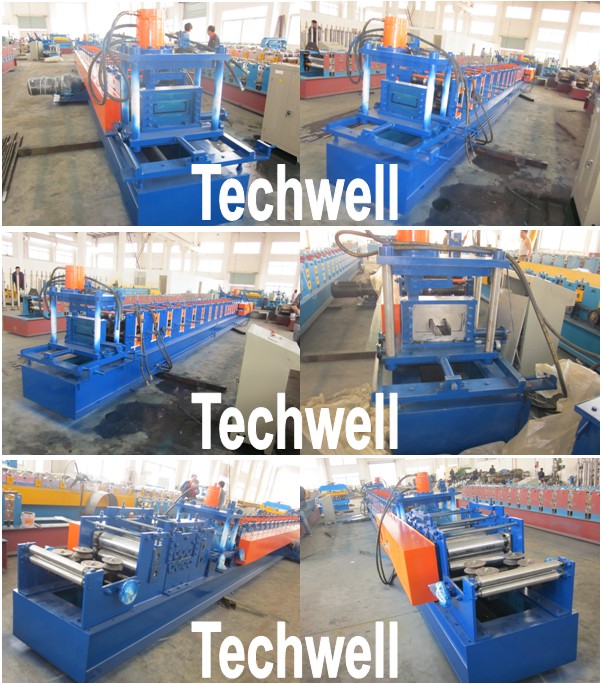

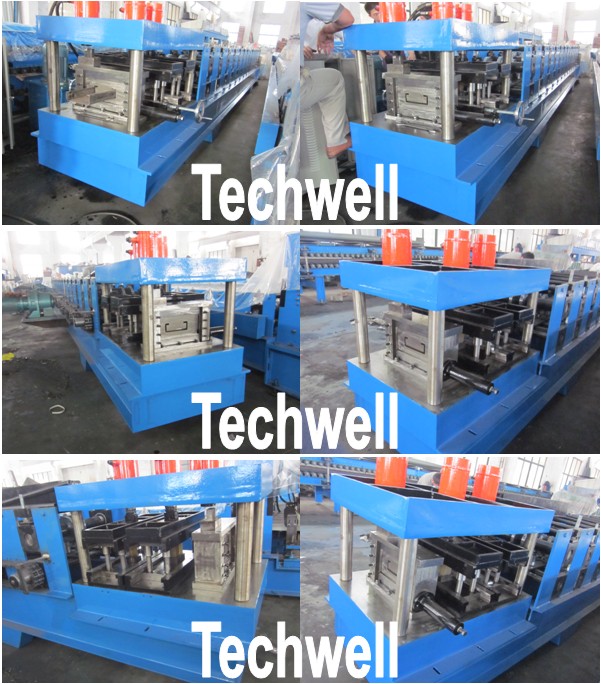

   Machine Pictures

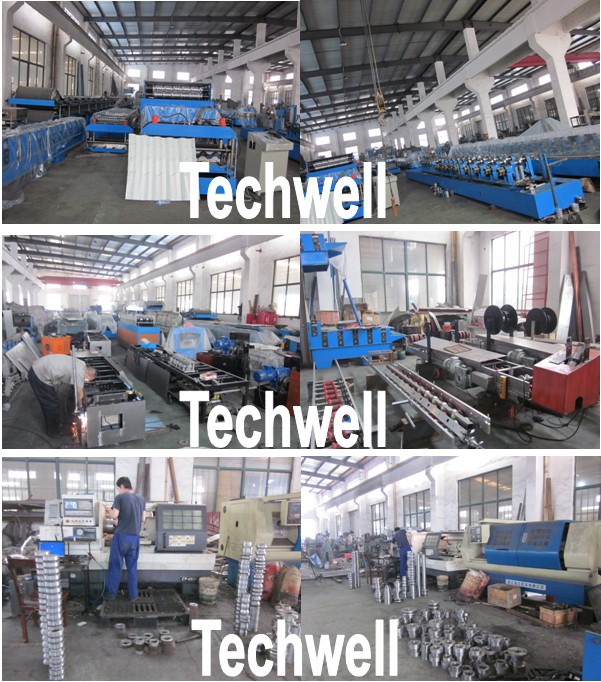

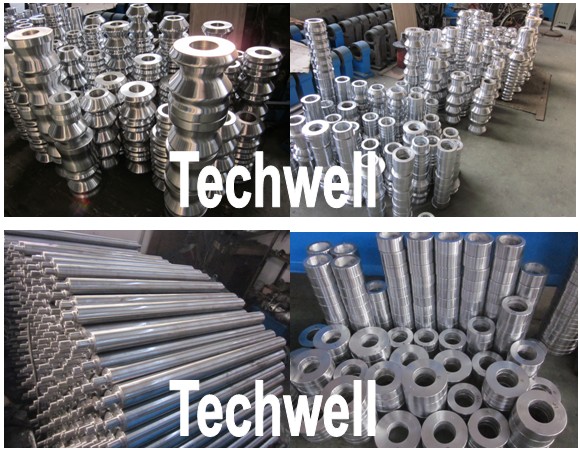

  Factory Pictures

  Certificate
