Automatic Adjustable C / Z Purlin Roll Forming Machine for C Z Purlins, Steel CZ Purlins, Metal CZ Purlin

Automatic Adjustable C / Z Purlin Roll Forming Machine for C, Z Purlins, Steel CZ Purlins, Metal CZ Purlin


   Main Specifications of C / Z Purlin Roll Forming Machine

• Material: G.i Coil or Carbon steel
• Material Thickness:1.5-3.0mm
• Landscape orientation adjustment range of Hole distance : 45-500mm
• Length of purlin: >3m
• Forming Stations: about 17 Main rollers
• Leveling Stations: 7
• Feeding Stations: 2
• Main Power: 20KW
• Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
• Weight of machine: about 18.5 Ton
• One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
• C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
• This line main forming drive adopt reducer motor and frequency conversion control, speed control…
• It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

   Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding & Leveling ----------------------------------- 1 Unit
• Hydraulic punching device ---------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Main roll forming machine ---------------------------- 1 Unit
• Hydraulic Station ------------------------------------ 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table ----------------------------------------- 1 Unit

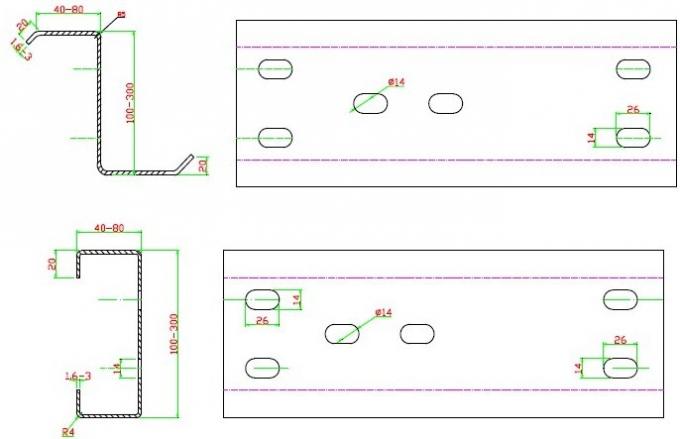

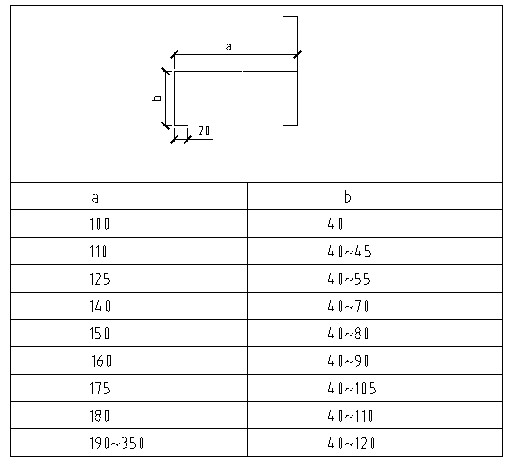

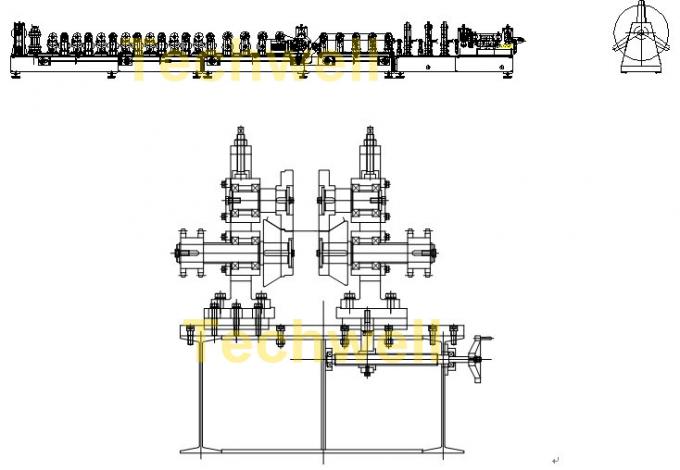

   Reference Drawing

   Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

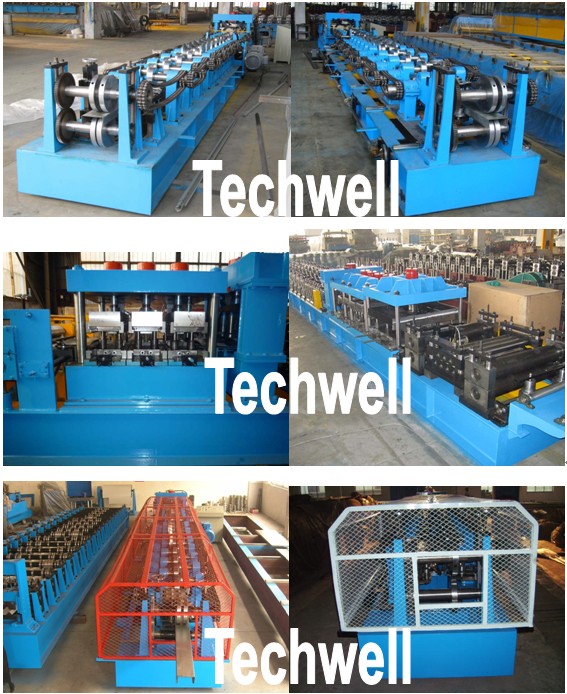

  Machine Picture

  Factory Pictures

  Certificate
