80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm

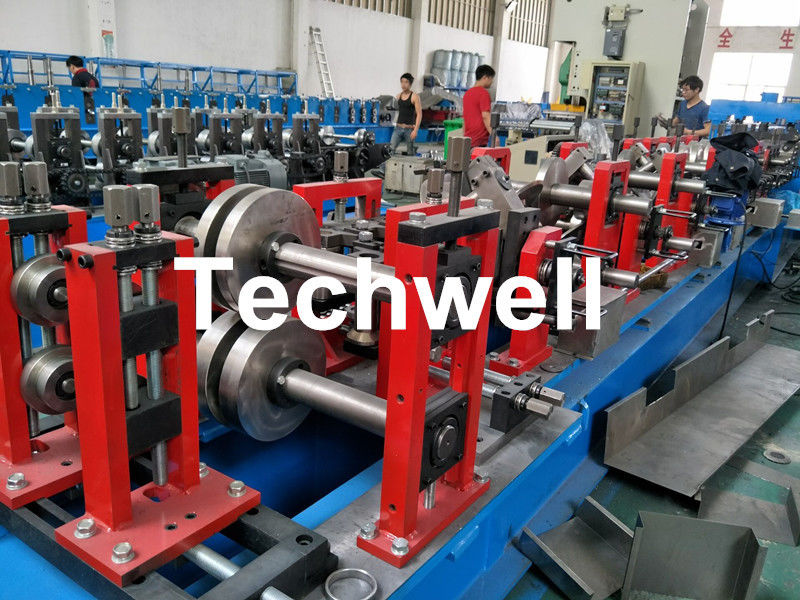

Large Image : 80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-CZ300

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

CZ Purlin Roll Forming Machine

C Purlin Roll Forming Machine

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm

Main Specifications of C Z Purlin Roll Forming Machine

Material: G.i Coil or Carbon steel
Material Thickness:1.5-3.0mm
Landscape orientation adjustment range of Hole distance : 45-500mm
Length of purlin: >3m
Forming Stations: about 17 Main rollers
Leveling Stations: 7
Feeding Stations: 2
Main Power: 20KW
Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
Weight of machine: about 18.5 Ton
One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
This line main forming drive adopt reducer motor and frequency conversion control, speed control…
It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

Main Components

Decoiler ---------------------------------------------- 1 Unit
Feeding & Leveling ----------------------------------- 1 Unit
Hydraulic punching device ---------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Main roll forming machine ---------------------------- 1 Unit
Hydraulic Station ------------------------------------ 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ----------------------------------------- 1 Unit

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 0

Reference Drawing

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 1

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 2

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 3

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 4

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Machine Picture

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 5

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 6

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 7

Factory Pictures

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 8

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 9

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 10

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 11

Certificate

80-350mm Quick Interchangeable C Z Purlin Roll Forming Machine for Thickness 1.5 - 3.0mm 12
