Product Description

G.i Coil / Carbon Steel Cold Roll Forming Machine for C Z Purlins Of 1.5 - 3.0mm Thickness

Main Components

Decoiler / Uncoiler	1 Unit
Pinch Feeding & Leveling	1 Unit
Punching	1 Unit
Cutting	1 Unit
Main Roll Forming Machine	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Table	2 Units

Working Flow

Decoiler ---> Pinch Feeding & Leveling ---> Punching ---> Cutting ---> Main Roll Forming ---> Runout Table

Carbon Steel Cold Roll Forming Machine 0

Main Specifications

Coil Material	Thickness	1.5-3.2mm
	Coil width	Custom-made
	Yield Strength	250-350Mpa
	Material	GI. Carbon Steel
Purlin Sizes	Web width	80-350mm
	Height	40-80mm
	Lip	15-25mm
	C-C different sizes	Approx. 2-5 minutes
	Z-Z different sizes	Approx. 2-5 minutes
	C-Z or Z-C	Approx. 5-15 minutes
Decoiler / Uncoiler	Coil Width	Max. 600mm
	I.D	508-610mm
	O.D	Max. 1500mm
	Coil weight	Max. 5 Ton
	Decoiler type	Manual type or Hydraulic or Automatic type
Pinch Feeding & Leveling	Pinch feeding	2 Units ( 4 Rollers )
Pinch Feeding & Leveling	Leveling	5 Rollers ( Upper 2 Rollers, Bottom 3 Rollers )
Punching	Punching type	Hydraulic Punching, Pre-punching
	Punching die material	Cr12 Mov Steel, HRC58-62
	Punching station	1 or 3 or 3 Unites ( depend on hole patterns )
	Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.
Cutting	Cutting type	Hydraulic Cutting, Pre-Cutting ( cutting sheet before forming )
	Cutting blades material	Cr12 Mov steel, with heat treatment HRC58-62
	Length Measuring	Automatic length measuring by encoder & PLC.
	Cutting Tolerance	10m +/-2mm
Roll Forming Machine	Forming Stations	17 Stations
	Rectifying	1 Station
	Roller material	GCr15 steel, heat treatment
	Diameter of shaft	80mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission, 1.2" Double chain
	Forming speed	0-15m/min
	Main power	15KW
	Servo motor	2 Units
Electrical control	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	MCGS Brand or Custom-made
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic Station	Hydraulic power	7.5KW
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Reference Drawing

Carbon Steel Cold Roll Forming Machine 1

Our Advantage

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

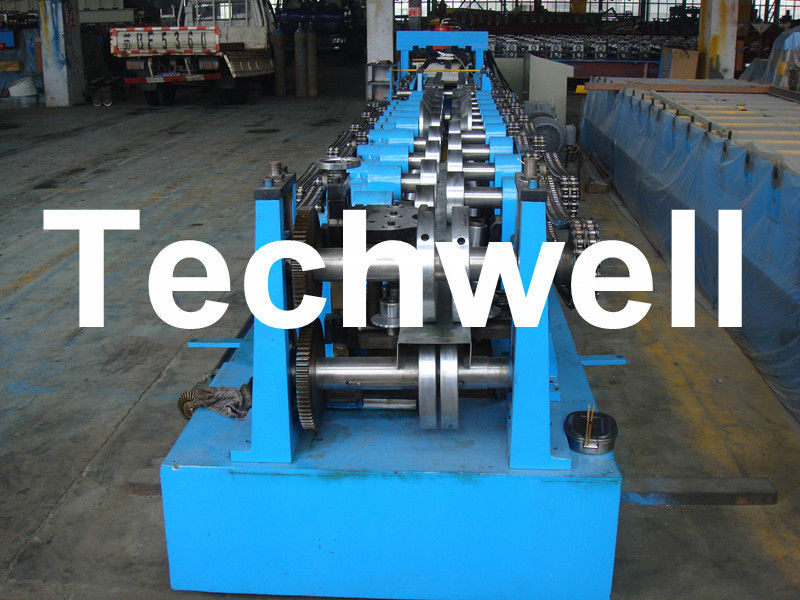

Machine Pictures

Carbon Steel Cold Roll Forming Machine 2

Carbon Steel Cold Roll Forming Machine 3

Carbon Steel Cold Roll Forming Machine 4
