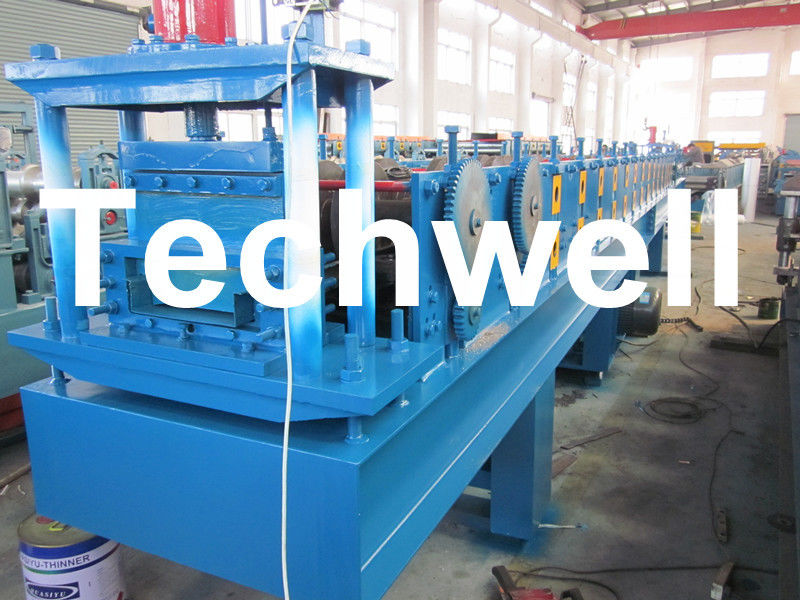

18 Forming Station Hat Channel / Furring Channel Roll Forming Machine TW-HCM100

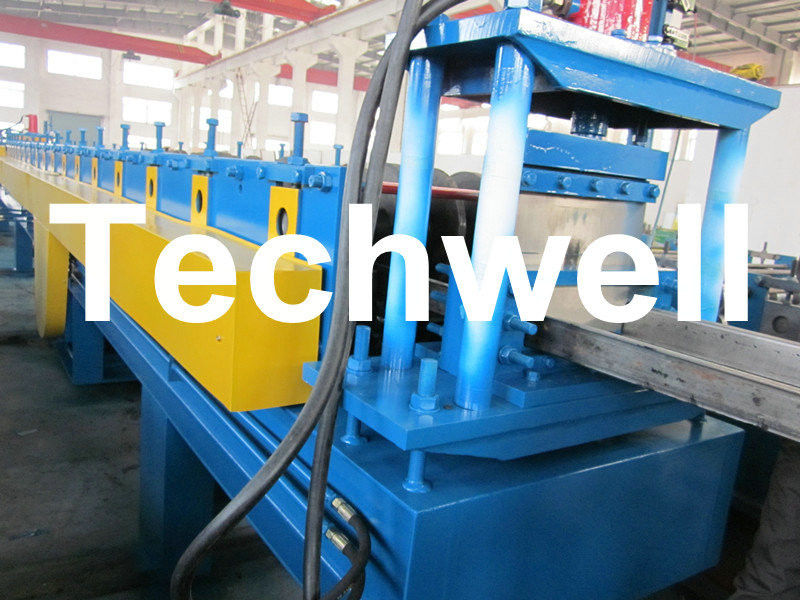

18 Forming Station Hat Channel / Furring Channel Roll Forming Machine TW-HCM100


  Work Flowing of Furring Channel Roll Forming Machine

Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table

  Main Specifications

• Material: GI, Carbon steel
• Material thickness: 1.5-3.0mm
• Main power: 15KW
• Machine diameter: about 11500x1500x1300mm ( LXWXH )
• Weight of machine: about 10 Ton
• Main Technical Specification:
• Decoiler: Manual or hydraulic decoiler ( customer can choose )
• Weight capacity of decoiler: 5 Ton
• Forming station: 18
• Principle axis: 75mm diameter
• Forming speed: 0-15m/min
• Drive type: 1.5' chain transmission
• Roller material: GCr15 steel, quenched  and heated process
• Main power: 15KW
• Hydraulic power: 7.5KW
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand

  Main Component

• Decoiler ----------------------------------------------- 1 Unit
• Feeding & Leveling ------------------------------------ 1 Unit
• Hydraulic punching device ----------------------------- 1 Unit
• Main roll forming machine ----------------------------- 1 Unit
• Hydraulic cutting device ------------------------------- 1 Unit
• Hydraulic Station -------------------------------------- 1 Unit
• PLC computer control --------------------------------- 1 Unit
• Output table ------------------------------------------ 1 Unit

  Application

Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

  Our Advantage

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

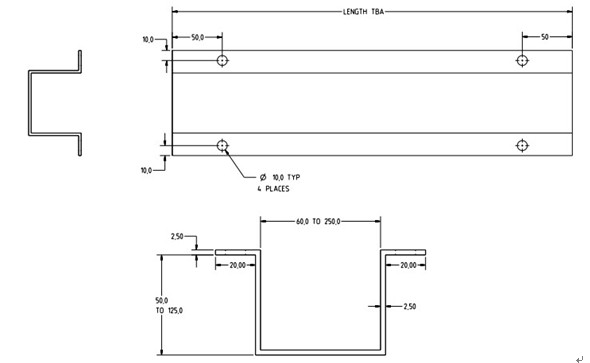

  Reference Drawing

  Factory Pictures

  Certificate
