U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel

Name: U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel
Brand: TECHWELL
SKU: TW-U100
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (140 reviews)

Large Image : U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-U100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

Z Purlin Roll Forming Machine

C Purlin Roll Forming Machine

U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel

Main Specifications of U Channel Roll Forming Machine

Material: HRC, CRC, GI
Material thickness: 1.5-3.0mm
Main power: 11KW
Hydraulic power: 5.5KW
Decoiler: Manual or hydraulic decoiler
Weight capacity of decoiler: 5 Ton
Axis diameter: 75mm
Forming Station: 12 stations
Principal axis material: 45# high grade steel, heated and quenched
Roller material: GCr15 steel, quenched and heated process, HRC58-62
Forming speed: 0-20m/min
Drive: Chain transmission
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand

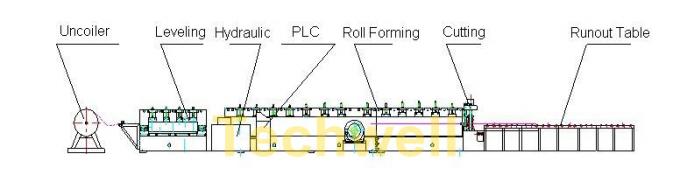

Working Flow

Decoiler --- Fedding & Leveling --- Roll Forming --- Cut-to-length --- Run out table

U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel 0

Main Components

Decoiler ------------------------------------------------- 1 Unit
Feeding & Leveling ----------------------------------- 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic cutting device ----------------------------- 1 Unit
Hydraulic Station -------------------------------------- 1 Unit
PLC computer control ------------------------------- 1 Unit
Output table -------------------------------------------- 1 Unit

Profile Drawing

U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel 1

Application

u purlin, u shaped purlin, u channel, u section, u profile, u shape, steel u purlin,u purlin steel structure

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

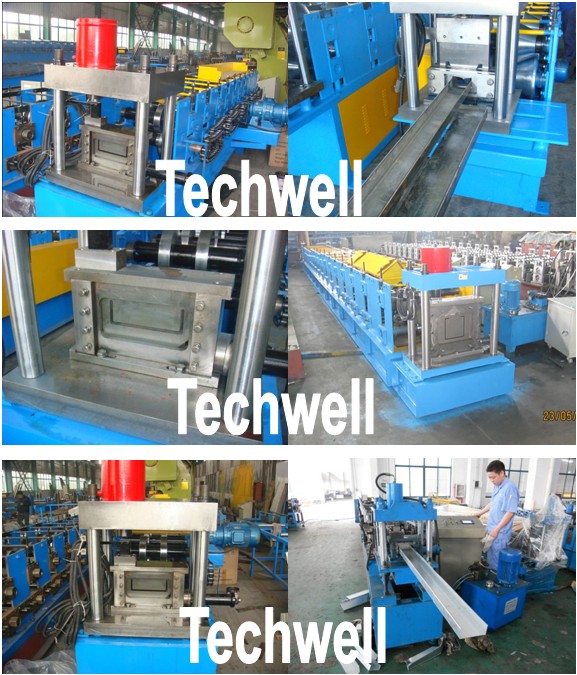

Machine Pictures

U Channel Roll Forming machine For Steel U Purlin, U Section, U Profile, U Channel 4
