GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

China GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure supplier
GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure supplier GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure supplier

Large Image :  GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-Z300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description





GI, Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure






  Specifications of Z Purlin Roll Forming Machine



  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Machine diameter: about 11500x1500x1300mm ( LXWXH )
  • Weight of machine: about 12 Ton
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: about 17
  • Principle axis: 80mm diameter
  • Forming speed: 0-15m/min
  • Drive type: 1.5' chain transmission
  • Roller material: GCr15 steel, quenched  and heated process
  • Main power: 18.5KW
  • Hydraulic power: 11KW
  • Punching: hydraulic punching
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand







  Work Flowing






Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table



GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure







  Main Components





  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding & Leveling ----------------------------------- 1 Unit
  • Hydraulic punching device ---------------------------- 1 Unit
  • Main roll forming machine ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit



  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience





  Reference Drawing





GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

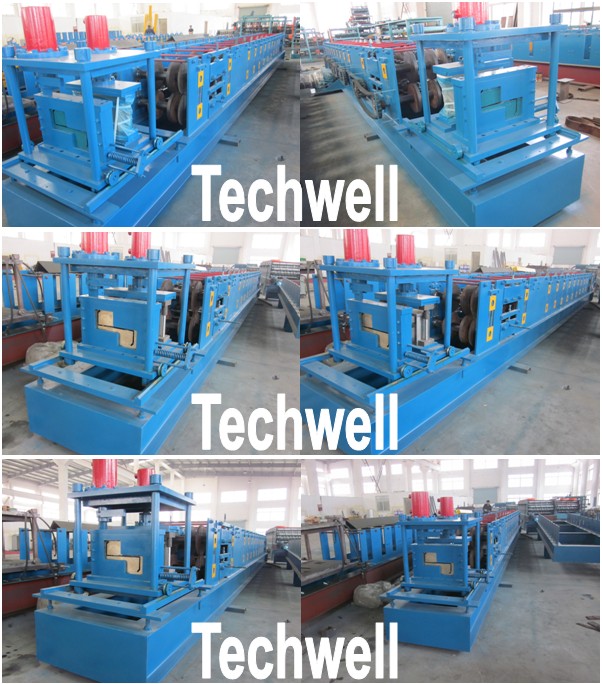

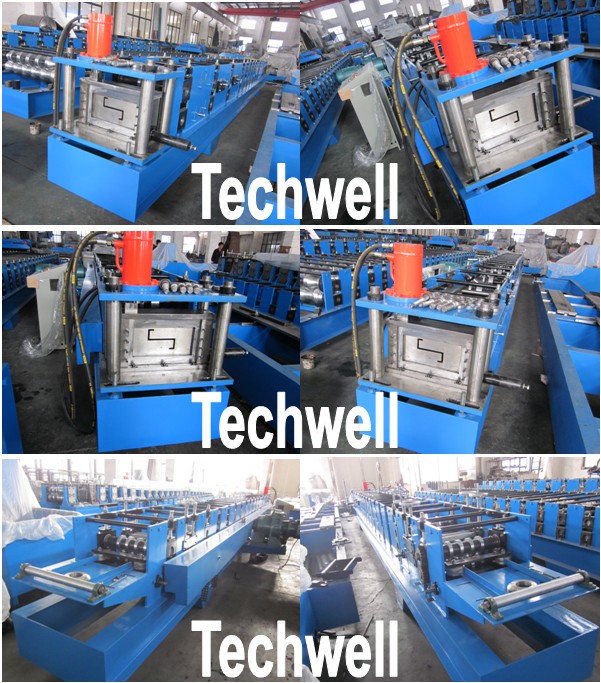

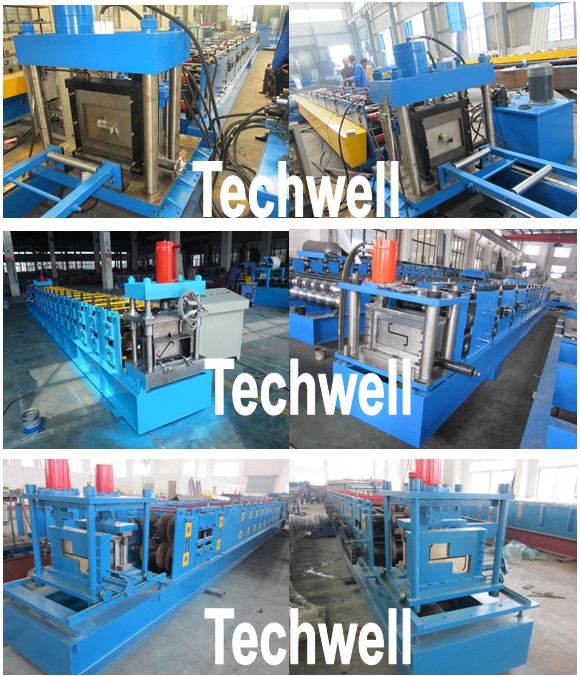

  Machine Pictures









GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure









  Factory Pictures









GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure

GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure









GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure









  Certificate





GI , Carbon Steel Material 1.5 - 3.0mm Z Purlin Roll Forming Machine For Steel Structure
