Roll Forming Machine for Z Purlin , Z Profile , Z Shape , Steel Z Purlin TW-Z300

Z Purlin Roll Forming Machine for Z Purlin, Z Profile, Z Shape, Steel Z Purlin TW-Z300

   Main Specifications of Z Purlin Roll Forming Machine

• Material: GI, Carbon steel
• Material thickness: 1.5-3.0mm
• Machine diameter: about 11500x1500x1300mm ( LXWXH )
• Weight of machine: about 12 Ton
• Decoiler: Manual or hydraulic decoiler ( customer can choose )
• Weight capacity of decoiler: 5 Ton
• Forming station: about 17
• Principle axis: 80mm diameter
• Forming speed: 0-15m/min
• Drive type: 1.5' chain transmission
• Roller material: GCr15 steel, quenched  and heated process
• Main power: 18.5KW
• Hydraulic power: 11KW
• Punching: hydraulic punching
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand

   Work Flowing

Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table

  Main Components

• Decoiler --------------------------------------------------- 1 Unit
• Feeding & Leveling ------------------------------------- 1 Unit
• Hydraulic punching device ---------------------------- 1 Unit
• Main roll forming machine ----------------------------- 1 Unit
• Hydraulic cutting device -------------------------------- 1 Unit
• Hydraulic Station ----------------------------------------- 1 Unit
• PLC computer control ----------------------------------- 1 Unit
• Output table ----------------------------------------------- 1 Unit

   Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

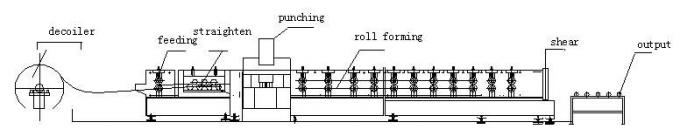

  Reference Drawing
