Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000

China Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000 supplier
Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000 supplier Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000 supplier

Large Image :  Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-PU1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 100-180 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description





Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000








   Summary of PU Sandwich Panel Machine







  • This pu sandwich panel production line is an automatic production line.
  •
  • In the PU sandwich paenl producing procedure, the product line can continuously produce sandwich panel with PU as its core material. The liquid state raw materials are continuously injected into the middle of two formed panels and reacting, foaming, solidifying in the double-beltl machine, furthermore, the PU sandwich panel could be cut out automatically according to the required length for users.
  •
  • The whole line is consisting of two decoilers, two film converers, cutting equipment, Two roll forming machines, one preheating, one PU foaming machine, one mobile injector, one double-belt laminator, one set of plastic blocks supporting corrugation skin, one hot-air circulator, one set of side chemical stopper, one automatic cutting machine, roller conveyor, steel platform, powered roller conveyor and auto control etc.
  •
  • Speed of the production line: Max. 8.6m/min ( frequency conversion to adjust speed )
  •
  • Total length of the production line: about 120 meters
  •
  • Total power of the production line: about 350KW
  •

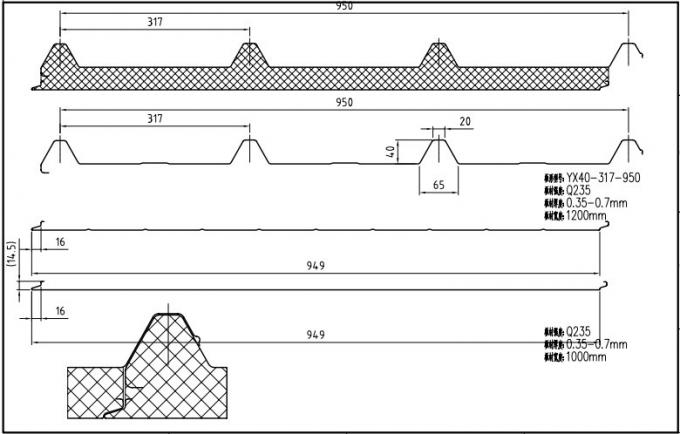

   Panel Profile Drawings









    Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000

    Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000











   Working Flow





Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000







   Applications





Roof Wall Sandwich Panel, Insulated Sandwich Panel, Prefabricated House, Prefab House, Mobile House, Cool Room...







   Our Advantages





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience









  Factory Pictures









Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000

Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000

Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000









Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000









  Certificate









Automatic Continuous PU Sandwich Panel Machine For Prefab House, Mobile House TW-PU1000
