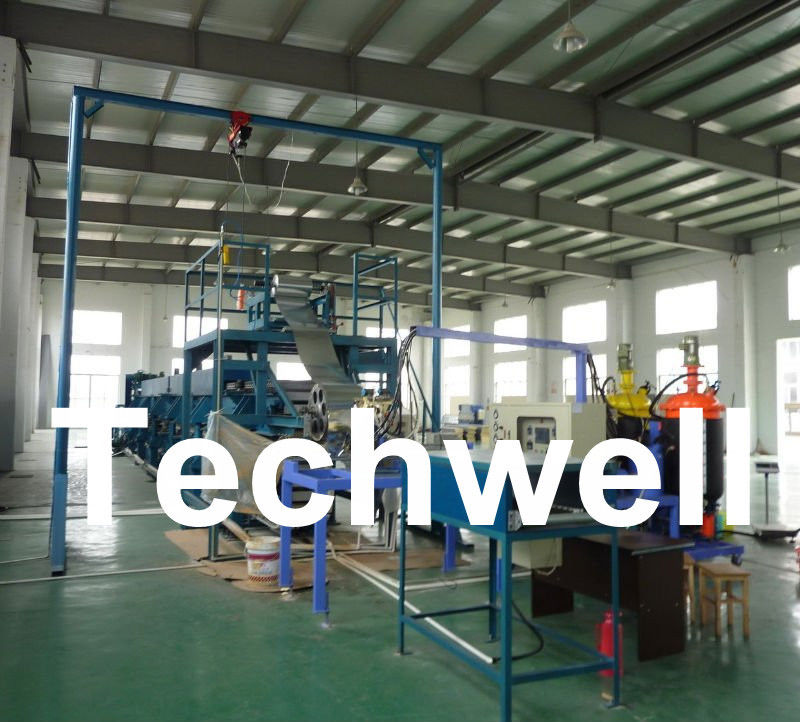

Double Belt Continuous PU Sandwich Panel Production Line / Sandwich Panel Machine

Name: Double Belt Continuous PU Sandwich Panel Production Line / Sandwich Panel Machine
Brand: TECHWELL
SKU: TW-PU1000
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (114 reviews)

Large Image : Double Belt Continuous PU Sandwich Panel Production Line / Sandwich Panel Machine

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-PU1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	100-180 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Material Of Roller:

40Cr

Finish Panel Width:

50-1150mm (or Depend On Customer's Requirements)

Thickness Of Panels:

40-200mm

Inner Diameter:

500-600mm

High Light:

Sandwich Panel Roll Forming Machine

Continuous Sandwich Panel Line

Double Belt Continuous PU Sandwich Panel Production Line / Sandwich Panel Machine

Summary of PU Sandwich Panel Production Line

This pu sandwich panel production line is an automatic production line.

In the PU sandwich paenl producing procedure, the product line can continuously produce sandwich panel with PU as its core material. The liquid state raw materials are continuously injected into the middle of two formed panels and reacting, foaming, solidifying in the double-beltl machine, furthermore, the PU sandwich panel could be cut out automatically according to the required length for users.

The whole line is consisting of two decoilers, two film converers, cutting equipment, Two roll forming machines, one preheating, one PU foaming machine, one mobile injector, one double-belt laminator, one set of plastic blocks supporting corrugation skin, one hot-air circulator, one set of side chemical stopper, one automatic cutting machine, roller conveyor, steel platform, powered roller conveyor and auto control etc.

Speed of the production line: Max. 8.6m/min ( frequency conversion to adjust speed )

Total length of the production line: about 120 meters

Total power of the production line: about 350KW

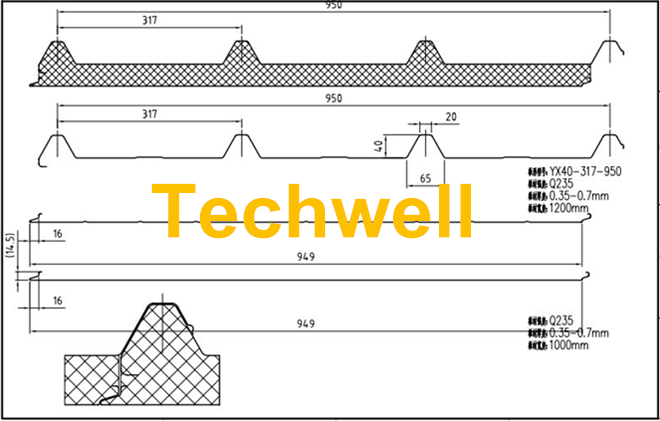

Panel Profile Drawings

Double Belt Continuous PU Sandwich Panel Production Line / Sandwich Panel Machine 0

Applications

Roof Wall Sandwich Panel, Insulated Sandwich Panel, Prefabricated House, Prefab House, Mobile House, Cool

Room...

Our Advantages

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

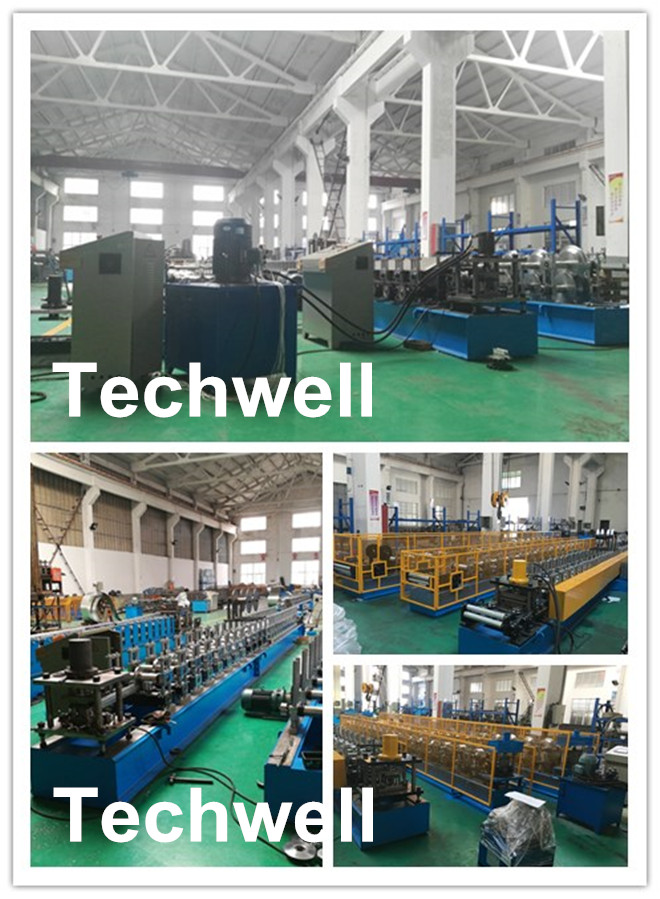

Workshop Machine Pictures

Double Belt Continuous PU Sandwich Panel Production Line / Sandwich Panel Machine 1
