2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312

2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312

Highway Guardrail Forming Machine

C Channel Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-W312

Contact Us

Request A Quote
Product Details
Product Description




2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312








   Summary of Highway Guardrail Roll Forming Machine





This highway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Thi

  • Material Thickness: 2-4mm
  • Forming Station: 15 excluding the feeding rollers and leveling rollers
  • 7 Rollers leveling
  • Principal Axis Diameter: ¢100mm
  • Working Speed: 10-12m/min
  • Main Power: 30KW
  • Leveling Power: 2.2KW
  • Hydraulic Power: 15KW
  • Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
  • Gross Weight of Machine: about 18 Ton
  • Voltage: 380V, 3 Phase 50Hz








   Main Components





  • Hydraulic Decoiler ------------------------------------------ 1 Unit
  • Leveling and Feeding Guide -------------------------------- 1 Unit
  • Punching Device ------------------------------------------- 1 Unit
  • Roll Forming Machine -------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------------ 1 Unit
  • PLC Contol System ---------------------------------------- 1 Unit
  • Runout Table ---------------------------------------------- 1 Unit
  • Spare Coupling -------------------------------------------- 1 Unit





2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 0

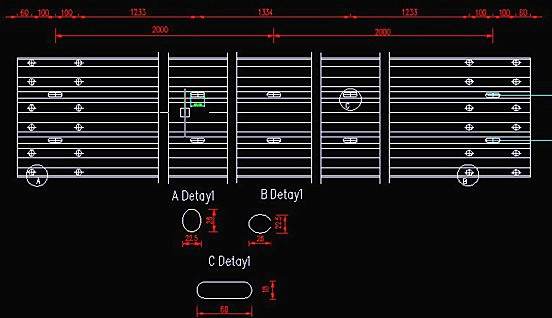

   Reference Drawing









2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 1

2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 2










   Our Advantage





  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience







  Machine Picture











2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 3

2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 4

2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 5





2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 6











  Factory Pictures







2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 7

2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 8

2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 9









2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 10









  Certificate









2 - 4mm Gimbal Gearbox Drive Highway Guardrail Roll Forming Machine With 7 Rollers Leveling TW-W312 11
