Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed

Highway Guardrail Roll Forming Machine

Highway Guardrail Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-W312

Contact Us

Request A Quote
Product Details
Product Description




Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed






   Summary of Highway Guardrail Roll Forming Machine





This highway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Thi

  • Material Thickness: 2-4mm
  • Forming Station: 15 excluding the feeding rollers and leveling rollers
  • 7 Rollers leveling
  • Principal Axis Diameter: ¢100mm
  • Working Speed: 10-12m/min
  • Main Power: 30KW
  • Leveling Power: 2.2KW
  • Hydraulic Power: 15KW
  • Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
  • Gross Weight of Machine: about 18 Ton
  • Voltage: 380V, 3 Phase 50Hz








   Main Components





  • Hydraulic Decoiler ------------------------------------------ 1 Unit
  • Leveling and Feeding Guide -------------------------------- 1 Unit
  • Punching Device ------------------------------------------- 1 Unit
  • Roll Forming Machine -------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------------ 1 Unit
  • PLC Contol System ---------------------------------------- 1 Unit
  • Runout Table ---------------------------------------------- 1 Unit
  • Spare Coupling -------------------------------------------- 1 Unit





Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 0









   Reference Drawing









Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 1

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 2








Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 3





   Our Advantage





  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

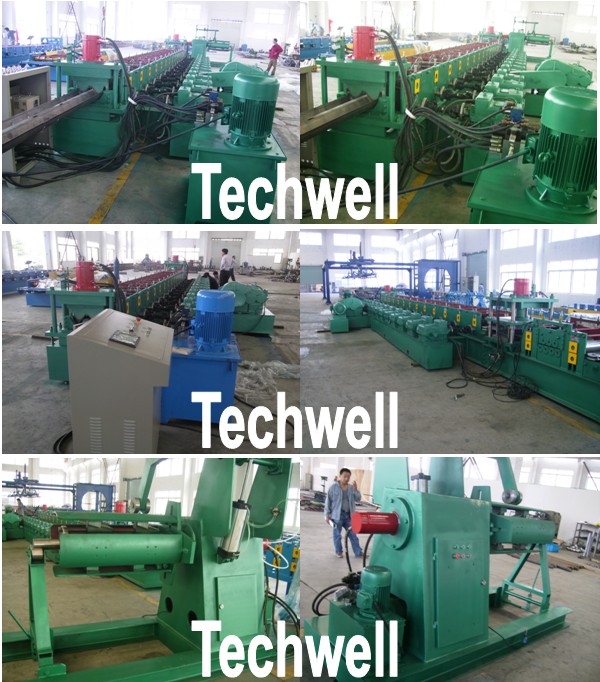

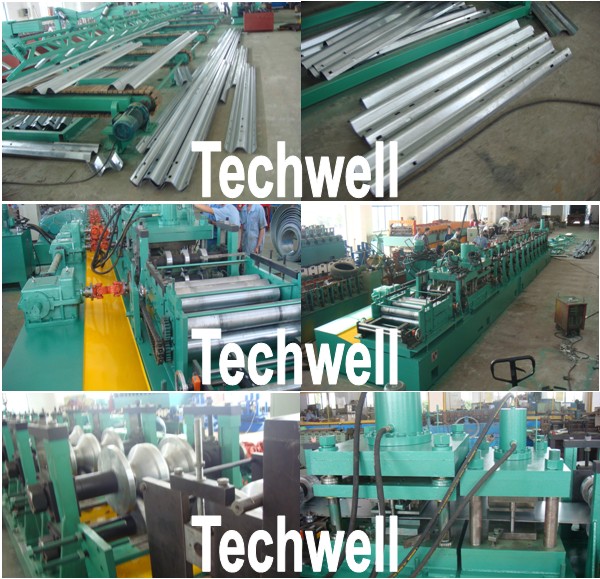

  Machine Picture









Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 4

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 5

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 6

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 7











  Factory Pictures







Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 8

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 9

Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 10









Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 11









  Certificate









Automatic PLC Control Highway Guardrail Roll Forming Machine With 10-12 m/min Working Speed 12
