30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed

Large Image : 30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-W312

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

Highway Guardrail Forming Machine

C Channel Roll Forming Machine

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed

Summary of 2 Wave Beam Roll Forming Machine

This 2 wave beam roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Thi

Material Thickness: 2-4mm
Forming Station: 15 excluding the feeding rollers and leveling rollers
7 Rollers leveling
Principal Axis Diameter: ￠100mm
Working Speed: 10-12m/min
Main Power: 30KW
Leveling Power: 2.2KW
Hydraulic Power: 15KW
Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
Gross Weight of Machine: about 18 Ton
Voltage: 380V, 3 Phase 50Hz

Main Components

Hydraulic Decoiler ------------------------------------------ 1 Unit
Leveling and Feeding Guide -------------------------------- 1 Unit
Punching Device ------------------------------------------- 1 Unit
Roll Forming Machine -------------------------------------- 1 Unit
Hydraulic Cutting ------------------------------------------ 1 Unit
Hydraulic Station ------------------------------------------ 1 Unit
PLC Contol System ---------------------------------------- 1 Unit
Runout Table ---------------------------------------------- 1 Unit
Spare Coupling -------------------------------------------- 1 Unit

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 0

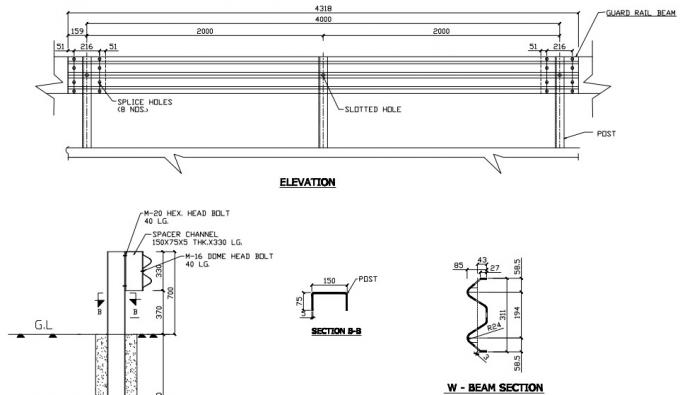

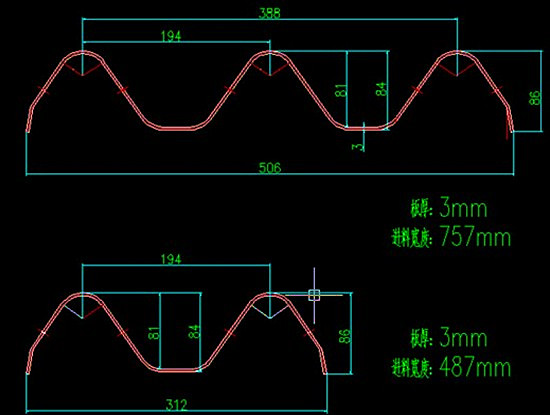

Reference Drawing

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 1

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 2

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 3

Our Advantage

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

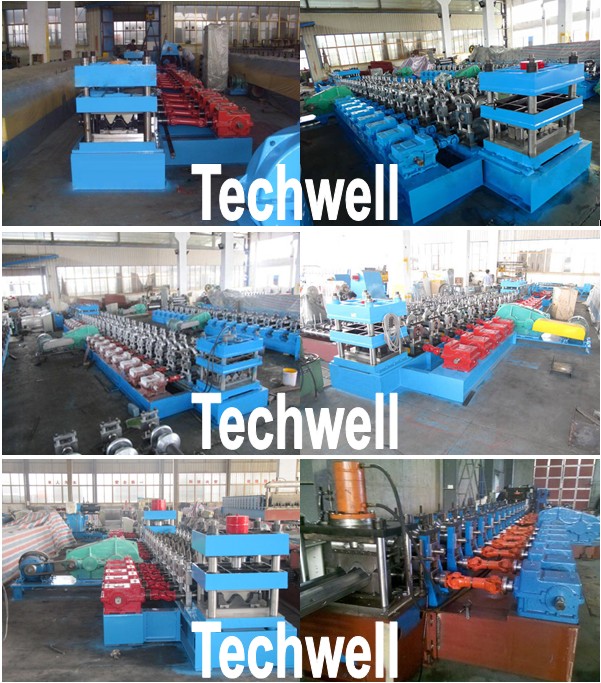

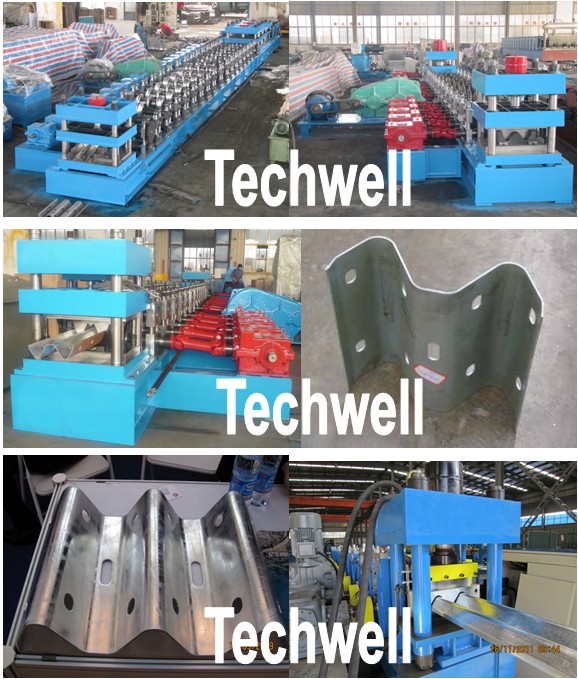

Machine Picture

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 4

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 5

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 6

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 7

Factory Pictures

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 8

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 9

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 10

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 11

Certificate

30KW, 3 Phase 50Hz 2 Wave Beam Roll Forming Machine With 10 - 12m/min Working Speed 12
