15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail

15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail

Highway Guardrail Forming Machine

C Channel Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-W312

Contact Us

Request A Quote
Product Details
Material Thickness:
2-4mm
Forming Station:
About 15 Stations
Axis Diameter:
¢100mm
Working Speed:
10-12m/min
Main Power:
30KW
Voltage:
380V, 3 Phase 50Hz
Product Description

15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail


   Summary of 3 Wave Guardrail Roll Forming Machine





This 3 wave guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Thi

  • Material Thickness: 2-4mm
  • Forming Station: 15 excluding the feeding rollers and leveling rollers
  • 7 Rollers leveling
  • Principal Axis Diameter: ¢100mm
  • Working Speed: 10-12m/min
  • Main Power: 30KW
  • Leveling Power: 2.2KW
  • Hydraulic Power: 15KW
  • Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
  • Gross Weight of Machine: about 18 Ton
  • Voltage: 380V, 3 Phase 50Hz




    Main Components



  • Hydraulic Decoiler ------------------------------------------ 1 Unit
  • Leveling and Feeding Guide ------------------------------1 Unit
  • Punching Device ------------------------------------------- 1 Unit
  • Roll Forming Machine -------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------------ 1 Unit
  • PLC Contol System ---------------------------------------- 1 Unit
  • Runout Table ---------------------------------------------- 1 Unit
  • Spare Coupling -------------------------------------------- 1 Unit





15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail 0





   Reference Drawing

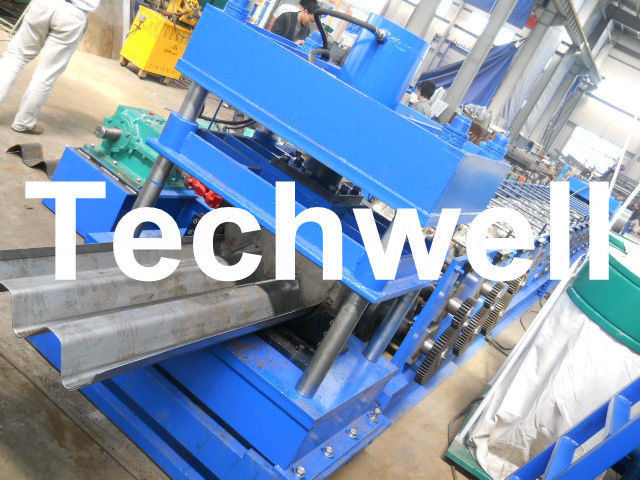

15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail 1





   Our Advantage





  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

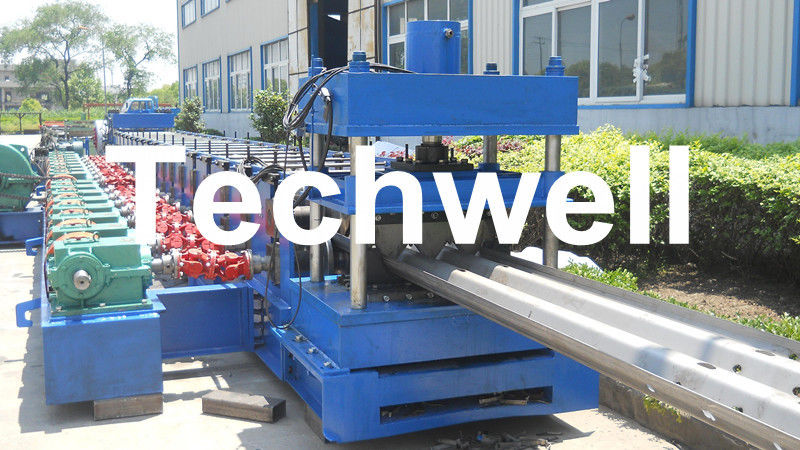

  Machine Picture



15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail 2

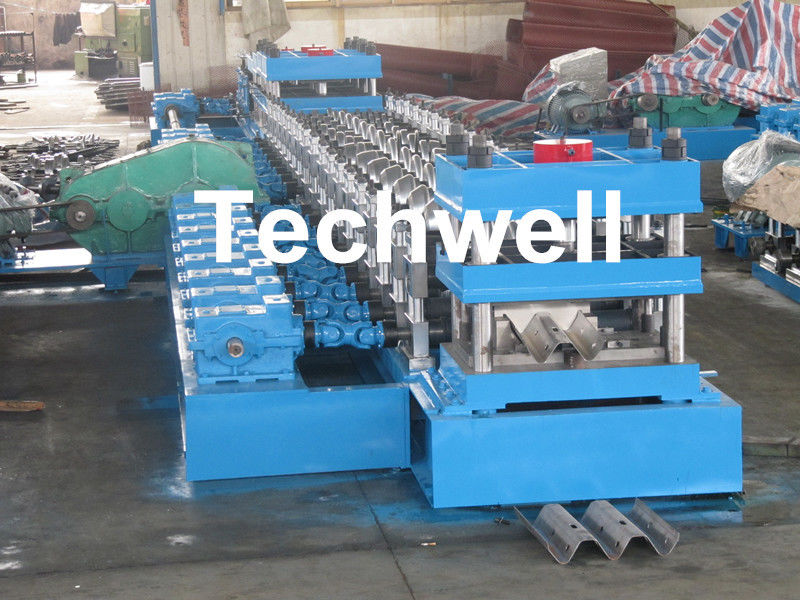

  Factory Pictures



15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail 3

15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail 4



  Certificate



15KW Highway Guardrail Roll Forming Machine With 7 Rollers Leveling For W Beam Guardrail 5
