16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness

16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness
16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness

Large Image :  16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-SG100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
High Light:

Highway Guardrail Forming Machine

,

C Channel Roll Forming Machine





16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness







   Main Specifications of Sigma Purlin Roll Forming Machine





  • Material thickness: 4mm
  • Main power: 21KW
  • Forming Station: 16 steps
  • Cutting power of Sigma Section Rll Forming Machine: 7.5KW
  • Drive of Sima Section Roll Forming Machine: Gearbox gimal transmssion
  • Roller Material: GCr15 steel, quenched and heated process
  • Shaft material: 45# Steel, heated and quenched treatment
  • Machine frame: Welded structural steel
  • Machine base: 36# H steel
  • Thickness of Frame steel: S18








   Main Components





  • Hydraulic Decoiler ------------------------------------------- 1 Unit
  • Leveling and Feeding Guide --------------------------------- 1 Unit
  • Roll Forming Machine --------------------------------------- 1 Unit
  • Punching Device -------------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------------- 1 Unit
  • PLC Contol System ----------------------------------------- 1 Unit
  • Runout Table ----------------------------------------------- 1 Unit
  • Spare Coupling --------------------------------------------- 1 Unit

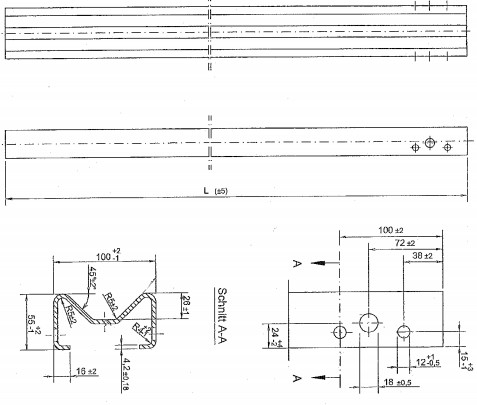

   Reference Sigma Profile Drawing









16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 0











   Applications







Sigma post, guardrail post, sigma section, sigma profile, sigma shape, sigma purlin...





16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 1







   Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience









   Sigma Purlin Forming Machine Pictures









16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 2









  Factory Pictures









16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 3

16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 4

16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 5









16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 6









  Certificate









16 Steps Forming Station Sigma Purlin Roll Forming Machine With 4mm Thickness 7
