High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

China High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection supplier
High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection supplier High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection supplier

Large Image :  High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-CBT300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 100-120 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 sets
Contact Now
Detailed Product Description




High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection






  Main Specifications Of Cable Tray Forming Machine







  • Material: Q235 cold rolled strip or Hot-dip Galvanizing stee strip
  • Material Thickness:2.0mm,
  • Material Width: 400mm
  • Rolling Product Length: 0 limited, 0-any mm
  • Rolled Product Straightness Error: 1-1.5mm/1500mm
  • Rolling Product Angle Error: ≤±1.5/1000mm
  • Motors Explosion-proof Rating: ExdllCT4
  • Motor Protection: IP55
  • Total Installed Capacity Power: about 31.4 KW
  • Forming Station of Cable Tray Roll Forming Machine: 16 Steps
  • Speed of Line: 0-10m/min.
  • Weight of machine: about 11.5 Ton

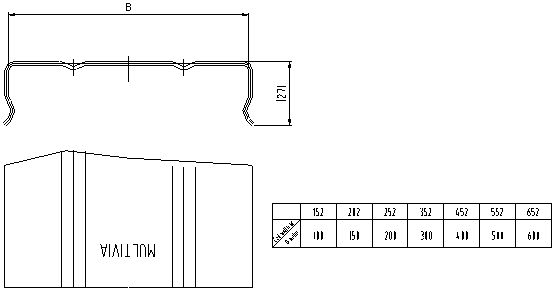

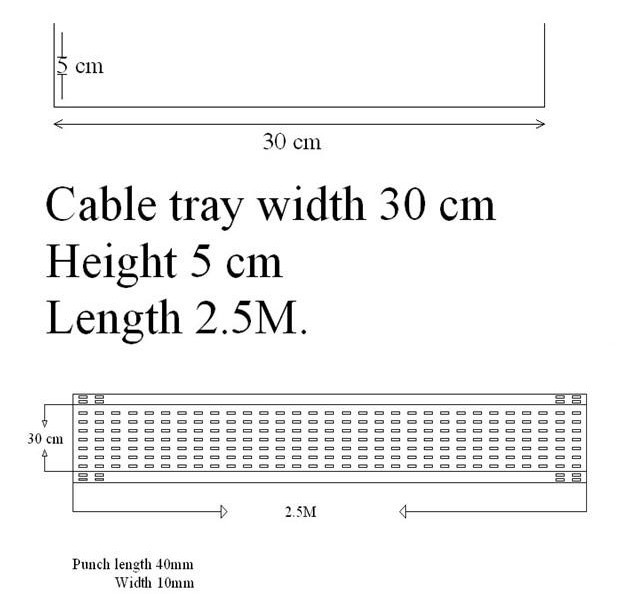

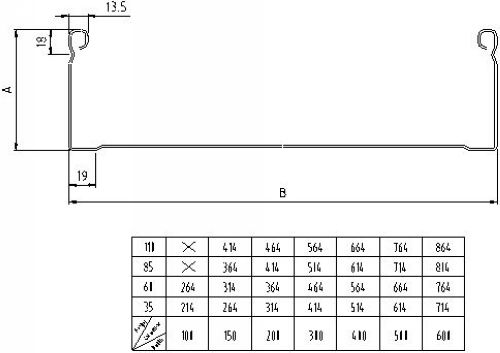

  Cable Tray Profile Drawings









High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

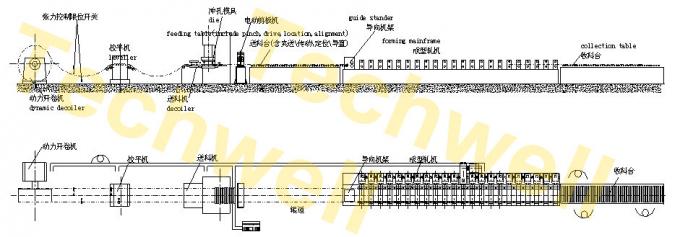

  Working Flow







Auoto Decoiler – Tranporting & 9 Rollers Leveling – Servo Feeding -- 100 Ton Punching machine -- Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table



High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

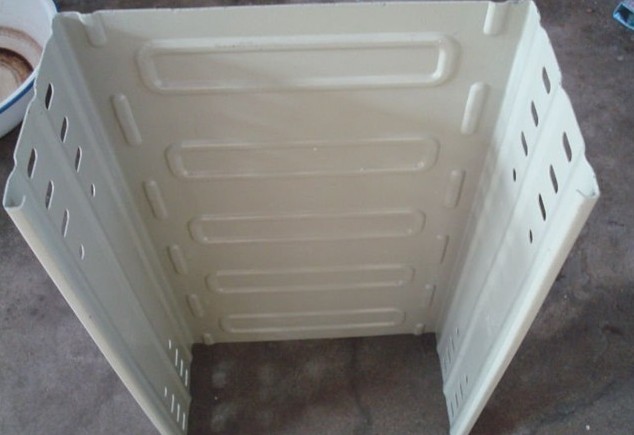

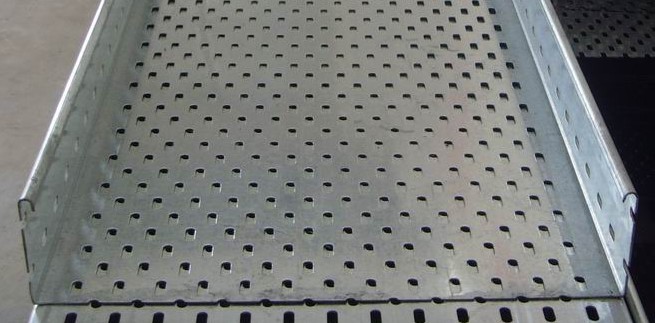

  Applications





Cable tray, cable ladder, cable profile, tray profile



High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection







   Our Advantages





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

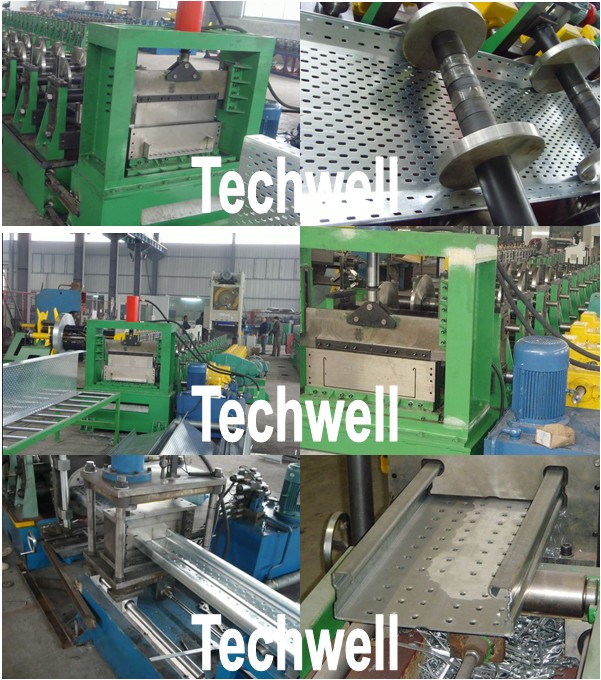

  Machine Pictures









High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

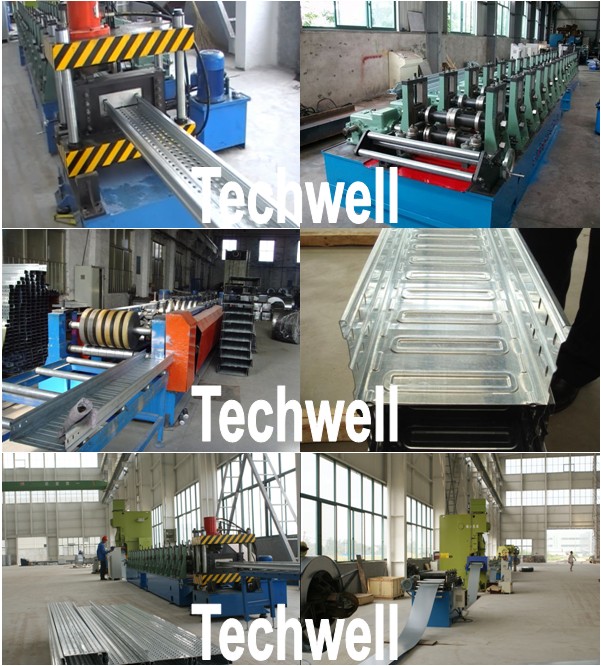

  Factory Pictures







High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection

High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection









High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection







  Certificate





 High Speed 0 - 10m/min Cable Tray Forming Machine With IP55Motor Protection
