7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe

Name: 7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe
Brand: TECHWELL
SKU: TW-DP100
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (129 reviews)

Large Image : 7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-DP100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	70-80 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Main Motor Power:

7.5KW

Diameter Of Axis:

75mm

Material Of Axis:

High Grade 45# Steel

Electrical Control:

PLC Frequency Control System With Touch Screen

High Light:

Round Downspout Machine

Downspout Roll Forming Machine

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe

Main Specifications

Main motor power: 7.5Kw
Number of forming station: About 20
Forming speed of downpipe roll forming machine: 6-12m/min
Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
Dimension of machine: About 12000mm*1100mm*1200mm
Machine wight: about 12 Ton
Material of Axis: High grade 45# steel
Diameter of Axis: φ75mm
Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
Materical of Machine Frame: A3 Steel, thickness 18mm
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand

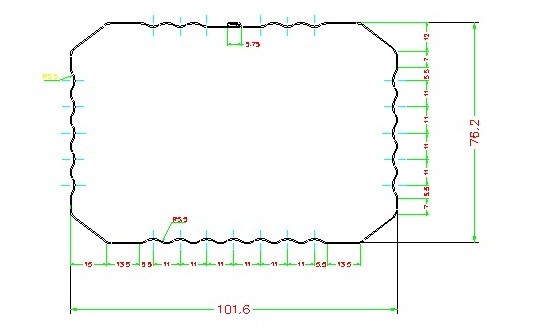

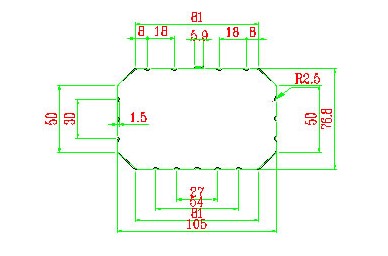

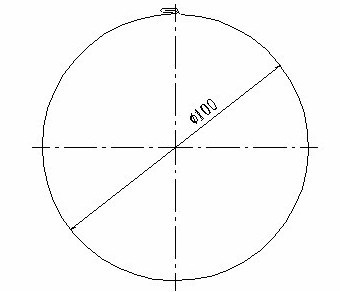

Reference Rainspout Drawing

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 0

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 1

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 2

Main Components

Decoiler -------------------------------------------------- 1 Unit
Feeding guide ------------------------------------------- 1 Unit
main roll forming machine ---------------------------- 1 Unit
Hydraulic cutting device ------------------------------- 1 Unit
Hydraulic Station ---------------------------------------- 1 Unit
PLC computer control --------------------------------- 1 Unit
Output table ---------------------------------------------- 1 Unit
Elbow machine ------------------------------------------ 1 Unit

Working Flow

Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device -> Cut to

length --> Out-put Table --> Curving machine

Applications

Rainwater downpipe, downspout, rainspout, water pipe, drainpipe

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 3

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 4

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

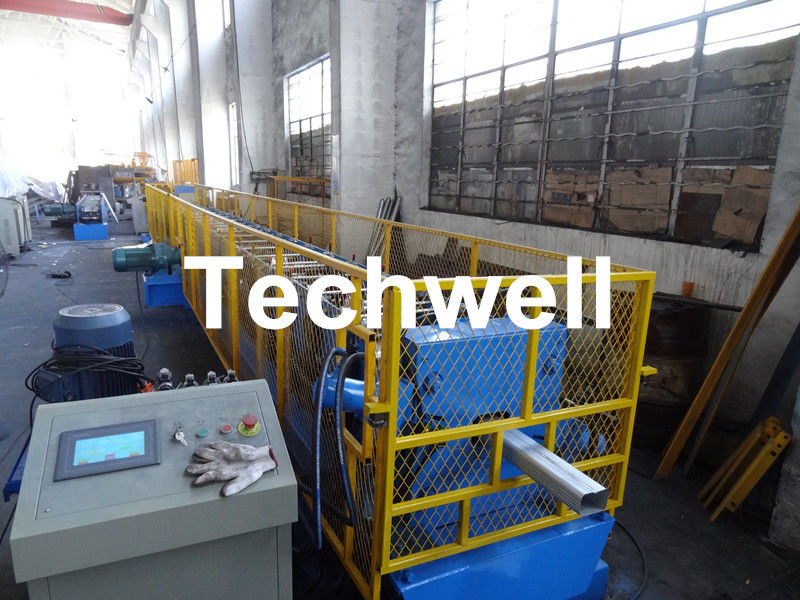

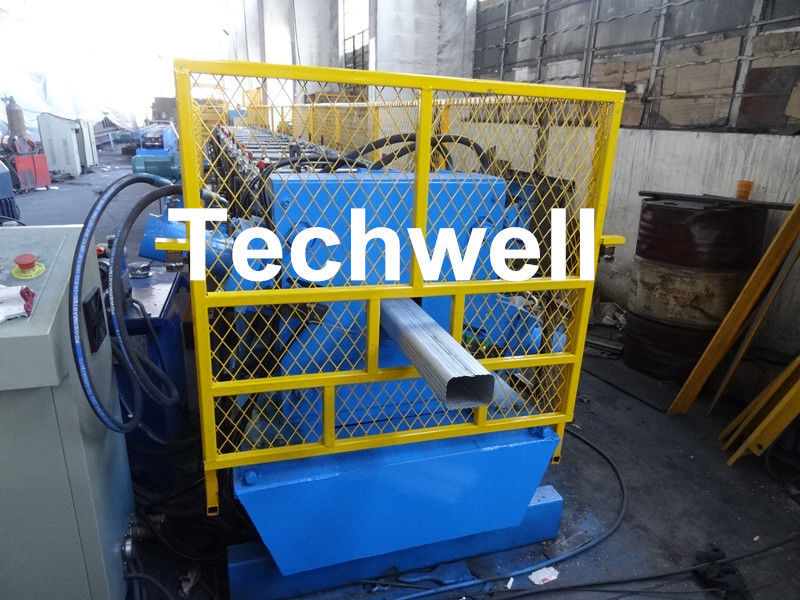

Machine Pictures

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 5

7.5Kw 20 Forming Station Custom Downpipe Roll Forming Machine For Rainwater Downpipe 6

Contatc of Details

Item	Contact Methods
Contact Person	Lemon
E-mail / Skype	sales@wxtechwell.com
Tel / Whatsapp/ IMO	+86-15861597732
Website	https://www.wxtechwell.com
Reference Videos	https://youtu.be/gkBqhWdUwmI
