30KW High Speed Simple Metal Sheet Slitting Machine Line To Cut Coil Into 10 Strips

30KW High Speed Simple Metal Sheet Slitting Machine Line To Cut Coil Into 10 Strips

Roll Slitting Machine

Steel Slitting Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-SSCT

Contact Us

Request A Quote
Product Details
Product Description





30KW High Speed Simple Metal Sheet Slitting Machine Line To Cut Coil Into 10 Strips







  Main Specifications





 1. Material specification:

  • Material: Carbon steel, GI, Color steel – Q235-Q350
  • Thickness: 0.2-2.0mm
  • Width: 400-1300mm
  • Inner diameter of coil: φ450—φ510
  • Outer diameter of coil: φ1500mm. Max.
  • Weight of coil: 5 Ton. Max.
  • Diamter of slitting blades: φ120
  • Material of slitting blades: 40Cr



2. Finished prodcuts data:

  • Tolerance of width: ≤±0.02mm
  • Max. strips to be slited: 10 pieces
  • Min. width of the pieces: 50mm





30KW High Speed Simple Metal Sheet Slitting Machine Line To Cut Coil Into 10 Strips 0

30KW High Speed Simple Metal Sheet Slitting Machine Line To Cut Coil Into 10 Strips 1







  Summary

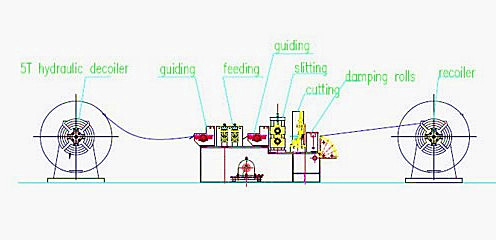

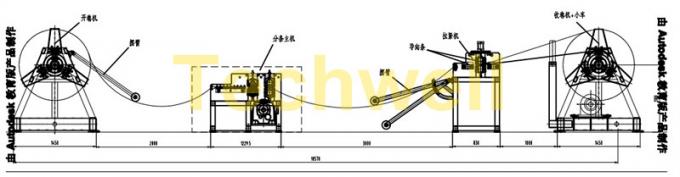

  • This line includes Uncoiler, Feeding Guide, Slitting Machine, Cantilevering Separating, Tension Control Board, Console and General electrical equipment.
  • Electrical Source: 380V/50Hz/3Ph ( or depend on local requirement )²
  • Speed of line: 0-30m/min.
  • Main power: 30 KW
  • Floor Area accupied by machine: 10m (L) x 3m ( Width )
  • Production operation: 1 Skilled Worker, 1 common worker







  Applications





Steel slitting cutting, metal slitting , metal sheet striping,





  Our Advantage





  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
