Hydraulic Cutting Z Channel Purlin Roll Forming Machine With 17 Forming Station TW-Z300
Main Specification of Z Channel Purlin Roll Forming Machine
| Hydraulic Cutting Z Channel Purlin Roll Forming Machine With 17 Forming Station TW-Z300 | |
| Material thickness | 1.5-3.0mm |
| Material |
GI, Carbon steel |
|
Machine diameter |
about 11500x1500x1300mm ( LXWXH ) |
|
Weight of machine |
about 12 Ton |
|
Decoiler |
Manual or hydraulic decoiler ( customer can choose ) |
|
Weight capacity of decoiler |
5 Ton |
|
Forming station |
about 17 |
|
Principle axis |
80mm diameter |
|
Forming speed |
0-15m/min |
|
Drive type |
1.5' chain transmission |
|
Roller material |
GCr15 steel, quenched and heated process |
|
Main power |
18.5KW |
|
Hydraulic power |
11KW |
|
Punching |
Hydraulic Punching |
|
Electrical Control |
PLC Frequency Control System with touch screen |
|
PLC |
PANASONIC Brand |
|
Encoder |
OMRON Brand |
|
Transducer |
PANASONIC Brand |
Main Components
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide & Leveling Device | 1 Unit |
| Hydraulic Punching | 1 Unit |
| Roll Forming Machine | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 1 Unit |
Work Flowing
Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table
Reference Drawing
Application
Z purlin, z shaped purlin, z channel, z section, z profile, z shape, steel z purlin, z purlin steel structure
Advantages

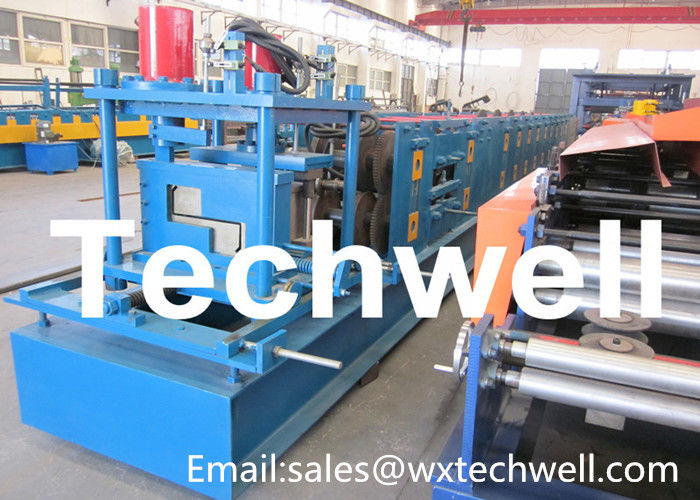

Machine Pictures
