Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet

Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet

Cable Tray Making Machine

cable tray manufacturing machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-CBT400

Contact Us

Request A Quote
Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet
Product Details
Material:
Hot-dip Galvanizing Steel Strip
Material Thickness:
2.0MM
Material Width:
400mm
Rolling Product Length:
0 Limited, 0-any Mm
Roller Material:
45# Steel
Weight Of Machine:
About 11.5 Ton
RELATED PRODUCTS
Good price Pre Cutting Press Cable Tray Bending Machine 80mm Shaft online

Pre Cutting Press Cable Tray Bending Machine 80mm Shaft

Get Best Price
Good price 18 Stations 2.5mm Cable Tray Roll Forming Machine With Hydraulic Decoiler online

18 Stations 2.5mm Cable Tray Roll Forming Machine With Hydraulic Decoiler

Get Best Price
Good price Carbon Steel 15m/Min 2.5mm Cable Tray Making Machine online Video

Carbon Steel 15m/Min 2.5mm Cable Tray Making Machine

Get Best Price
Good price Solid bottom 2.0mm Perforated Cable Tray Roll Forming Machine online Video

Solid bottom 2.0mm Perforated Cable Tray Roll Forming Machine

Get Best Price
Contact Us
86-510-83133431
monica@wxtechwell.com
86-510-83133431
Contact Now
Product Description

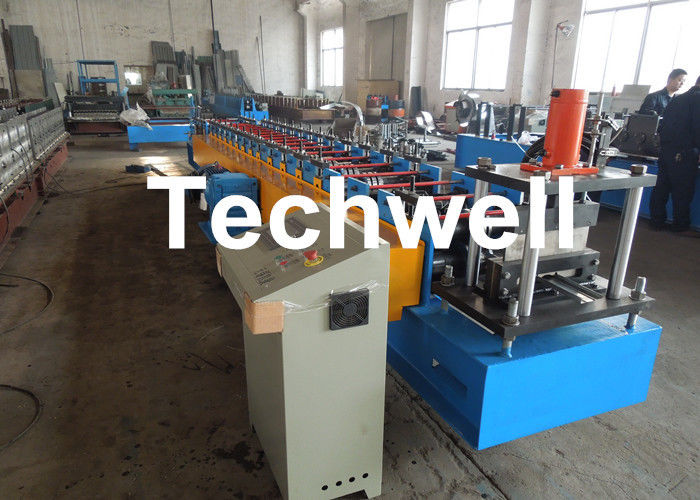

Hot-dip Galvanizing Steel Cable Tray Roll Forming Machine for Making Cable Tray Sheet





   A). Main Specifications



  1. Material:   Hot-dip Galvanizing steel strip
  2. Material Thickness:  2.0mm,
  3. Material Width:   400mm
  4. Rolling Product Length: 0 limited, 0-any mm
  5. Rolled Product Straightness Error:  1-1.5mm/1500mm
  6. Rolling Product Angle Error:      ≤±1.5/1000mm
  7. Motors Explosion-proof Rating:  ExdllCT4
  8. Motor Protection:    IP55
  9. Total Installed Capacity Power:   about 31.4 KW
  10. Forming Station:   16 Steps
  11. Speed of Line:    0-10m/min.
  12. Weight of machine:   about 11.5 Ton





   B). Working Flow


Auoto Decoiler – Tranporting & 9 Rollers Leveling – Servo Feeding -- 100 Ton Punching machine --



Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table

Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet 0





   C). Applications



Cable tray, cable ladder, cable profile, tray profile



   D). Competitive Advantages



High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience



   E). Reference Pictures



Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet 1Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet 2

Hot - dip Galvanizing Steel Cable Tray Forming Machine for Making Cable Tray Sheet 3
