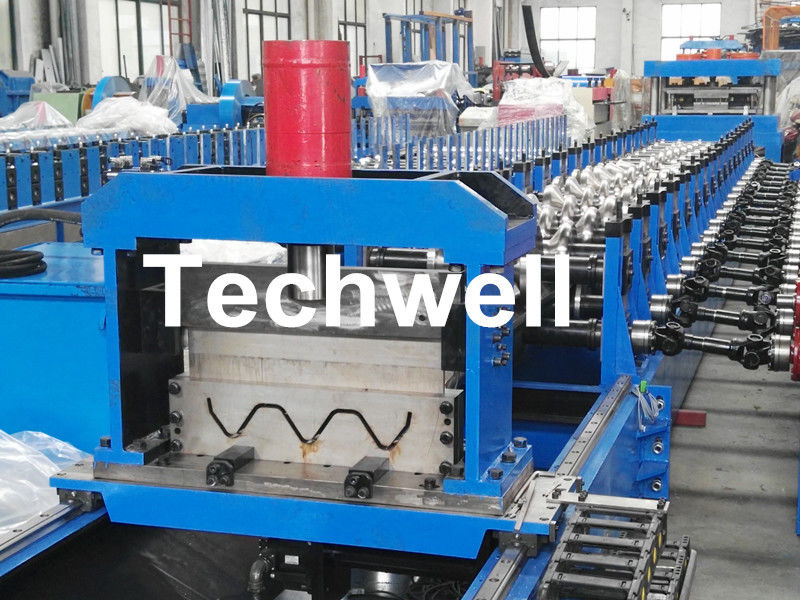

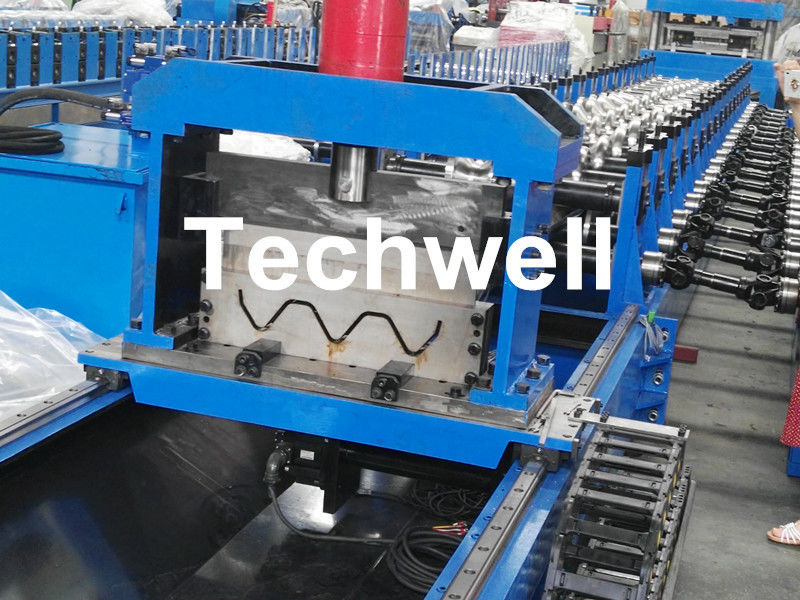

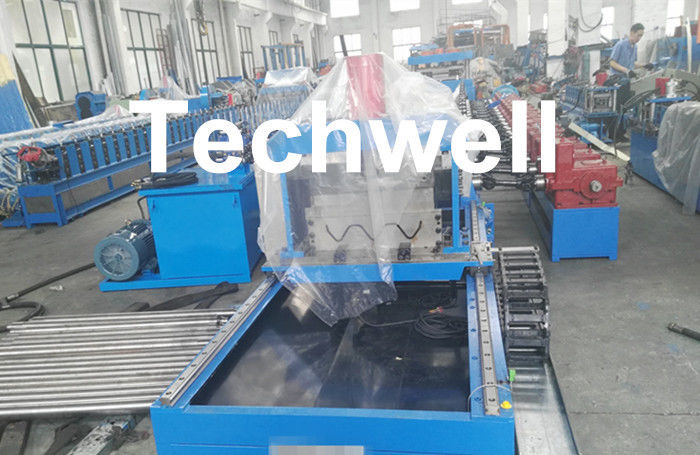

W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-W600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Material Thickness: 2.0-4.0mm Main Power: 30KW
Material: Carbon Steel, G.I.Steel, Q235 Diameter Of Axis: ￠100mm
Cutting Type: Hydraulic Cutting Method Material Width: 757MM ( Depend On Profile)
High Light:

Highway Guardrail Roll Forming Machine

,

C Channel Roll Forming Machine

W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier



   A). Specifiactions of Highway Guardrail Forming Machine

  1. Material Thickness: 2-4mm
  2. Forming Station: 15 excluding the feeding rollers and leveling rollers
  3. 7 Rollers leveling
  4. Principal Axis Diameter: ￠100mm
  5. Working Speed: 10-12m/min
  6. Main Power: 30KW
  7. Leveling Power: 2.2KW
  8. Hydraulic Power: 15KW
  9. Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
  10. Gross Weight of Machine: about 18 Ton
  11. Voltage: 380V, 3 Phase 50Hz

   B). Main Components



  1. Hydraulic Decoiler ----------------------------------------------- 1 Unit
  2. Leveling and Feeding Guide ---------------------------------- 1 Unit
  3. Punching Device ------------------------------------------------- 1 Unit
  4. Roll Forming Machine ------------------------------------------- 1 Unit
  5. Hydraulic Cutting ------------------------------------------------- 1 Unit
  6. Hydraulic Station ------------------------------------------------- 1 Unit
  7. PLC Contol System ---------------------------------------------- 1 Unit
  8. Runout Table ----------------------------------------------------- 1 Unit
  9. Spare Coupling --------------------------------------------------- 1 Unit

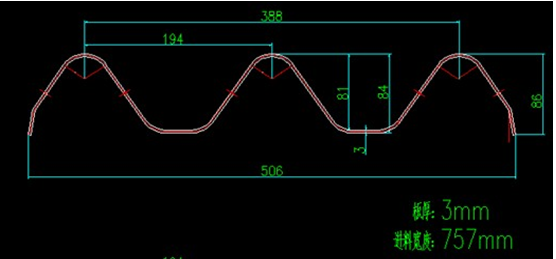

   C). Reference Guardrail Profile Drawing



W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier 0



   D). Application



Highway guardrail, w beam, w beam guardrail, crash barrier, guardrail post, fish retail...





   E). Competitive Advantages



High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

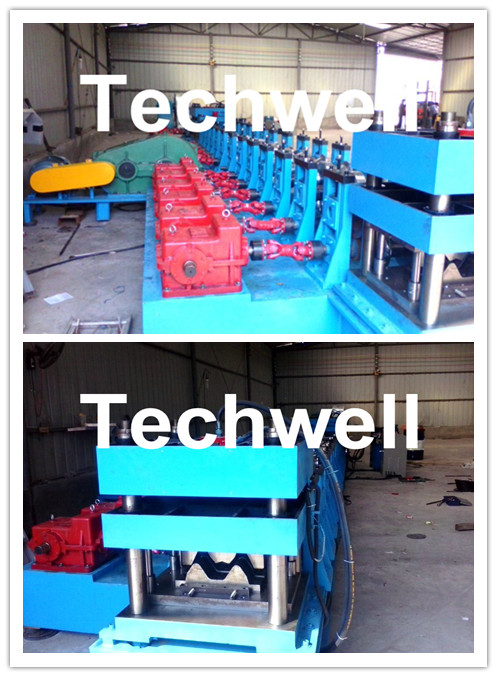

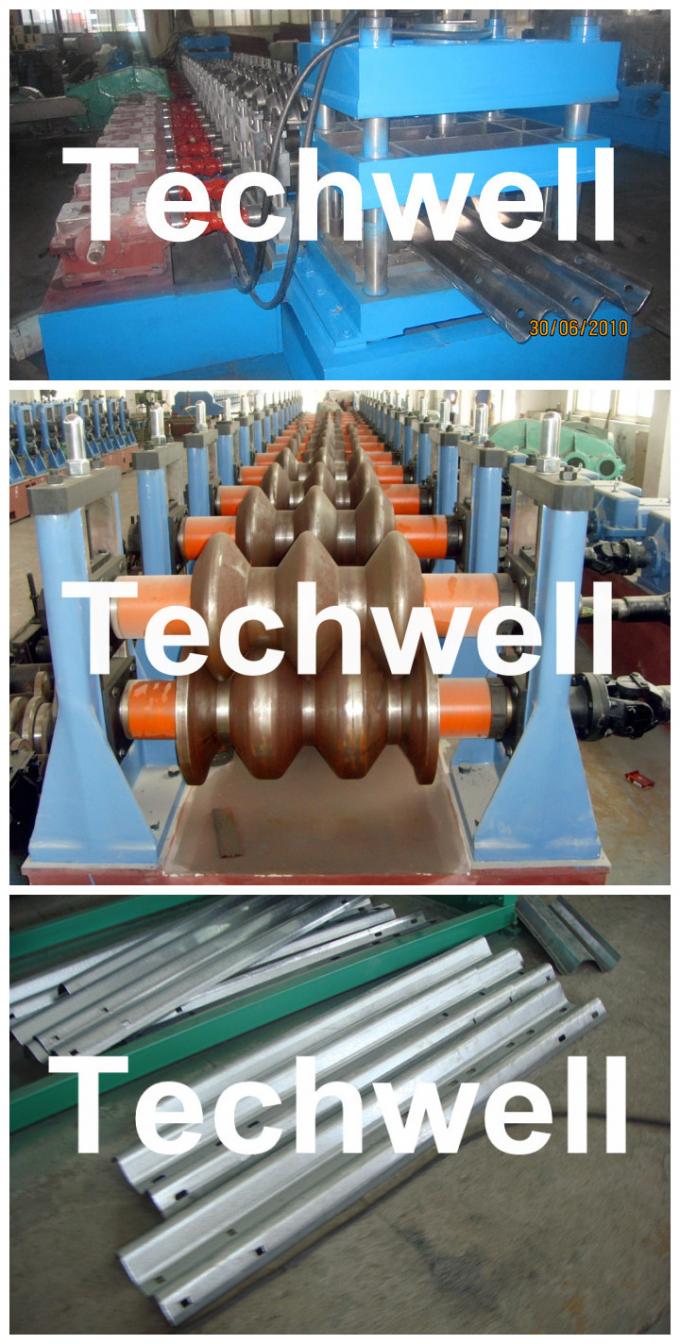

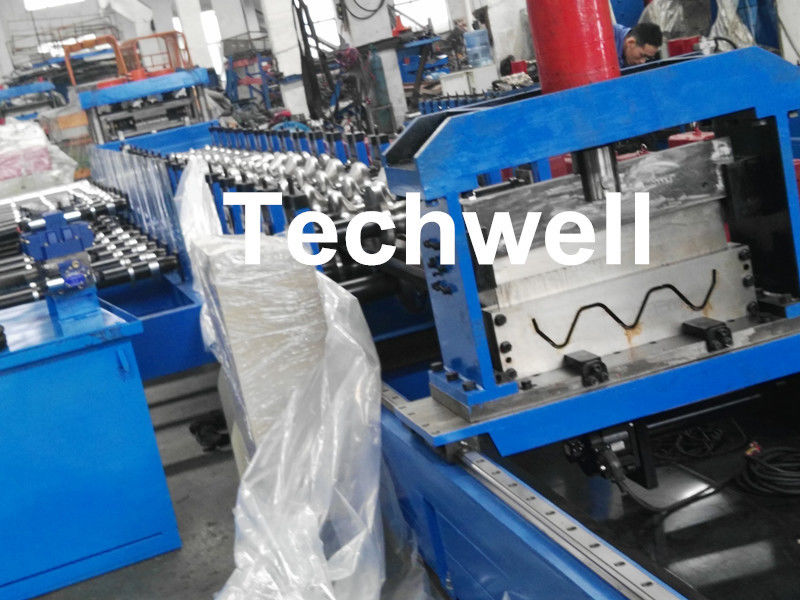

   F). Reference Machine Pictures



W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier 1

W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier 2

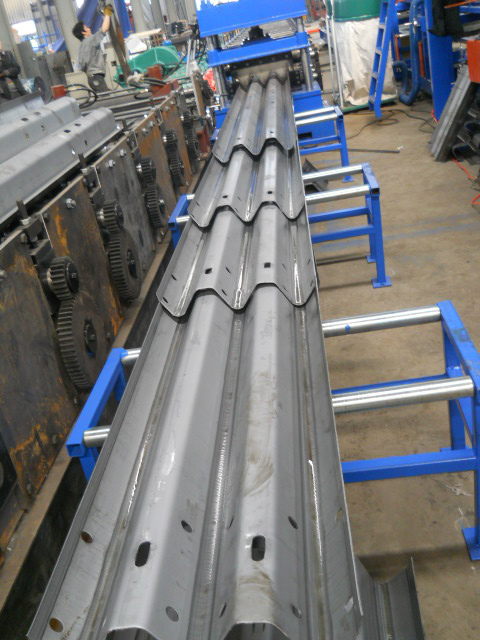

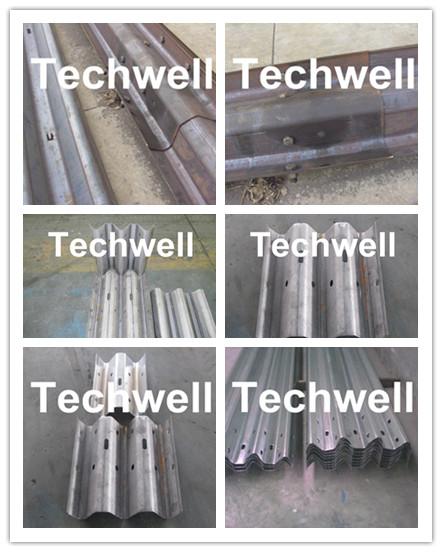

   G). Reference Products Pictures



W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier 3

W Beam Guardrail Roll Forming Machine for Highway Guardrail Crash Barrier 4





Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp/ IMO +86-15861597732
Website

https://www.wxtechwell.com

www.cold-rollformingmachine.com
Reference Video

https://youtu.be/NA7O3s82DxI

https://youtu.be/Kie3i9nKRiI
