2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission

China 2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission supplier
2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission supplier 2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission supplier 2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission supplier 2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission supplier

Large Image :  2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RACK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 100-120 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10sets
Contact Now
Detailed Product Description
Material: Q235 Cold Rolled Strip Or Hot-dip Galvanizing Stee Strip Motor Protection: IP55
Total Installed Capacity Power: 31.4Kw Yield Strength: Q235
Shearing Blade Material: Cr12Mov Punching: Depend On Hole Size

2.0mm Galvanized Steel Cable Profile Forming Machine With Panasonic PLC Touch Screen, Chain Transmission

   Main Specifications of Cable Profile


Raw Material Material Q235 cold rolled strip or Hot-dip Galvanizing stee strip
Thickness 2.0mm
Yield Strengh Q235
Production Profile Section Depend on Customer's Requirement
Roll Forming Machine  Roller Material GCr15 steel, quench HRC58-62
Shaft Material 45# Advanced steel
Cutting Blade Material Cr12Mov
Working Speed 0-10m/min
Forming Stations About 16 steps
Punching Depend on hole size Interchangeable Die
Drive Type Chain Drive or Gearbox Depend on customer's requirement
Cutting Hydraulic cutting
Electrical Control PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch Screen PANASONICE
Operation Type Touch screen & Button
Hydraulic Station Hydraulic Station Famous Chinese Brand
Run out Table Table Type Simple nonpower type
Function To support the finished panels

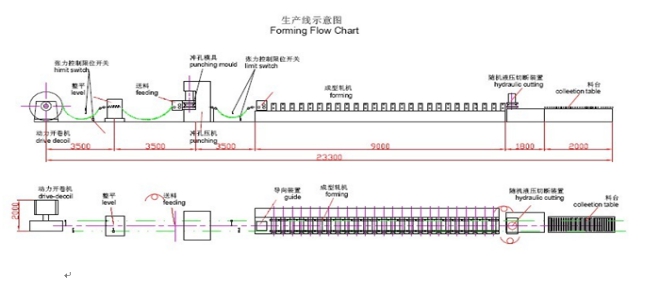

   Working Flow of Cable profile

Auoto Decoiler – Tranporting & 9 Rollers Leveling – Servo Feeding -- 100 Ton Punching machine -- Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table

2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission


   Main Components


  • Decoiler / Uncoiler ---------------------------------------------- 1 Unit
  • Leveling ----------------------------------------------------------- 1 Unit
  • Servo Feeding Device-------------------------------------------1 Unit
  • Hydraulic Punching-----------------------------------------------1 Unit
  • Main roll forming machine ------------------------------------- 1 Unit
  • Hydraulic cutting device ---------------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------------------- 1 Unit
  • PLC computer control ------------------------------------------- 1 Unit
  • Output table ------------------------------------------------------- 1 Unit

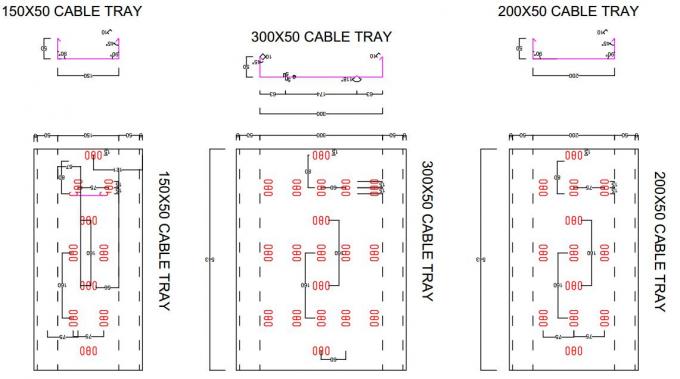

   Cable  Profile Drawings

2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission

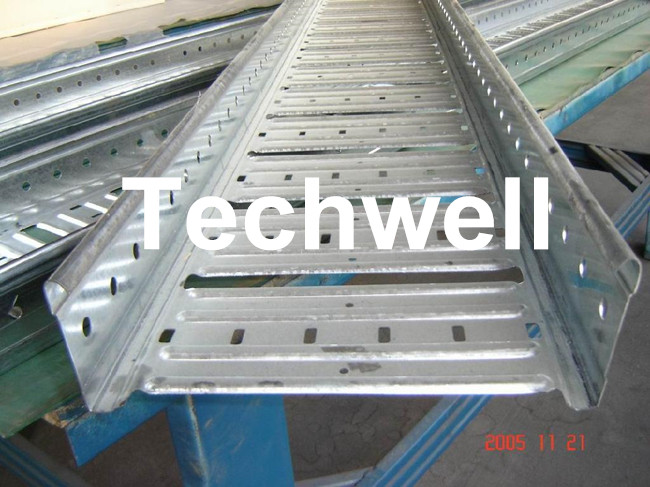

   Out Put Table Products

2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission

2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission


   Applications


Cable tray, cable ladder, cable profile, tray profile, cable tray profile, cable ladder profile


   Our Advantages


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience


   More Machine Pictures of Cable profile

2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission
