Quick Change C / Z Shaped Purlin Roll Forming Machine / Channel Roll Forming Machine

China Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine supplier
Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine supplier Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine supplier Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine supplier Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine supplier

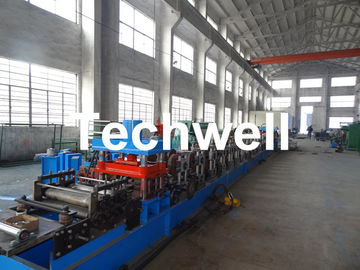

Large Image :  Quick Change C / Z Shaped Purlin Roll Forming Machine / Channel Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-CZ1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Profile Thickness: 1.5-3.0mm Punching Type: Pre-punching
Cutting Type: Pre-cutting Forming Speed: 0-20m/ Min
Main Power: 15 KW Forming Station: 16 Steps

Quck Change C / Z Shaped Purlin Roll Forming Machine for Making C / Z Purlin Sheet



   A). Basic Introduction of C Z Purlin Roll Former



  • The CZ Purlin formed by this CZ Purlin forming machine has many advantages: well compressive strength and flatness; automatic measuring, cutting and punching; high-level of automation and conveniently installation.
  • It can be used in large and medium-size enterprises civil construction with main body stress structure, like the plant, the warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, arbour supported by roofing load-bearing and wall surface.



   B). Main Specifications of C Z Purlin Roll Former

  1. Material: G.i Coil or Carbon steel
  2. Material Thickness:1.0-3.0mm
  3. Landscape orientation adjustment range of Hole distance : 45-500mm
  4. Length of purlin: >3m
  5. Forming Stations: about 16 Steps
  6. Leveling Stations: 7
  7. Feeding Stations: 2
  8. Main Power: 15KW
  9. Machine Diameter: about 12000mm(L) x 2300mm(W) x 1600mm(H) ( including main motor )
  10. Weight of machine: about 18.5 Ton
  11. One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  12. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  13. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
  14. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

   C). Main Components

  1. Decoiler ----------------------------------------------- 1 Unit
  2. Feeding & Leveling --------------------------------- 1 Unit
  3. Hydraulic punching device ------------------------ 1 Unit
  4. Hydraulic cutting device --------------------------- 1 Unit
  5. Main roll forming machine ------------------------- 1 Unit
  6. Hydraulic Station ------------------------------------ 1 Unit
  7. PLC computer control ------------------------------ 1 Unit
  8. Output table ------------------------------------------ 1 Unit



   D). Applications



Steel CZ purlins, C/Z purlins, Steel structuere CZ purlin, Metal CZ purlins,



   E). Competitive Advantages



Professional Team Support

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

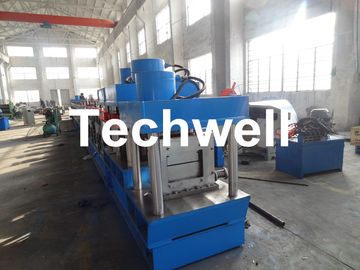

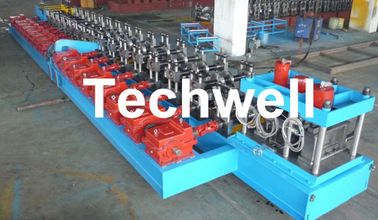

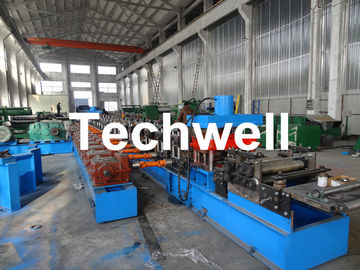

   F). More Machine Pictures



Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine

Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine





   G). Customer Visiting Photos



Quick Change C / Z Shaped Purlin Roll Forming Machine  / Channel Roll Forming Machine



   H). FAQ



Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine.



Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.



Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.



Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.



Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.



Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.



Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes. Regular updates on progress will be sent to you.



   I). More Contact Methods & Reference Videos





Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp/ IMO +86-15861597732
Reference Videos

https://youtu.be/KccDEQ1oZt4

https://youtu.be/KKu8MXCFV-Q
