Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine

China Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine supplier
Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine supplier Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine supplier Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine supplier Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine supplier

Large Image :  Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: CT-300-600X90

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: bare package
Delivery Time: 60-80 working days
Contact Now
Detailed Product Description
Material Thickness: 1.5-2.5mm Profile Model: Cable Tray CT200-600
Forming Station: 18 Main Power: 15KW
Hydraulic Power: 15KW PLC: Siemens Brand

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



   A). Cable Tray Profile Drawing & Finished Sample Sheets



Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



   B). Main Specifications





   1).  7 Ton Hydraulic Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Description: Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.

  3. Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling

  4. Electric releasing coil, hydraulic expanding, tension

  5. Weight capacity: 7 Ton

  6. I.D: 508mm

  7. Motor Power: 5.5KW

  8. Hydraulic System Power: 4KW

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine

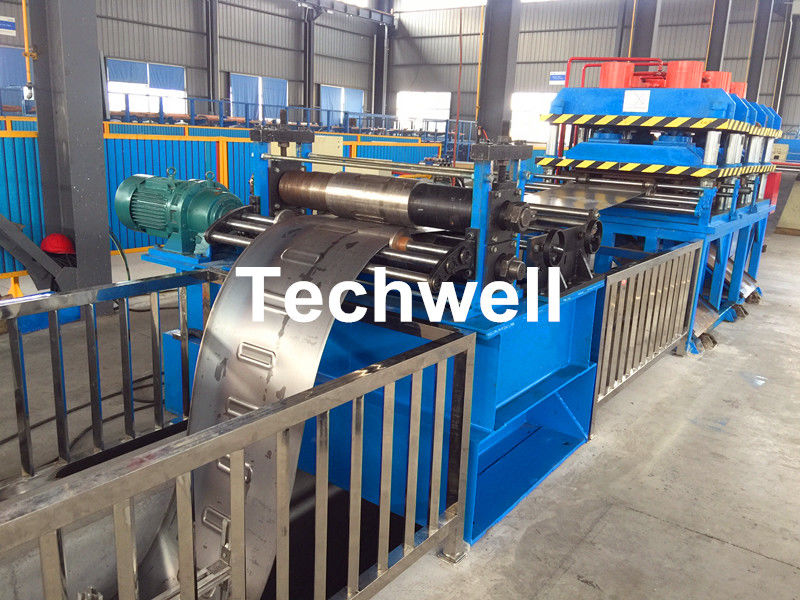

  2). 7 Roller Leveling Machine

  1. 2 Rollers pinch feeding, 7 rollers leveling
  2. leveling roller diameter: about Φ 90mm
  3. Leveling roller material: high grade 40Cr
  4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  5. Leveling motor power: 4KW

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



  3). Servo Feeding Machine

  1.   Servo motor power: 3KW
  2.   Servo motor brand: YASKAWA (JAPAN)
  3.   To exact accurately feed the sheet into punching machine according to the set program

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



  4). Hydraulic Pre-Punching Machine

  1. Punching Die: Cr12 Mov, quenching process
  2. Punching Die size: according to drawing
  3. Punching Power: 15KW
  4. Punching controlled by PLC

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine

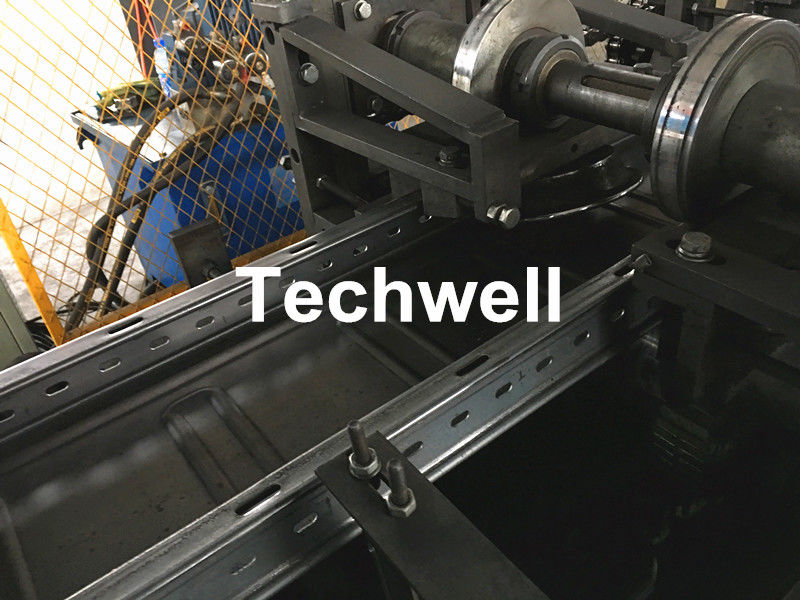

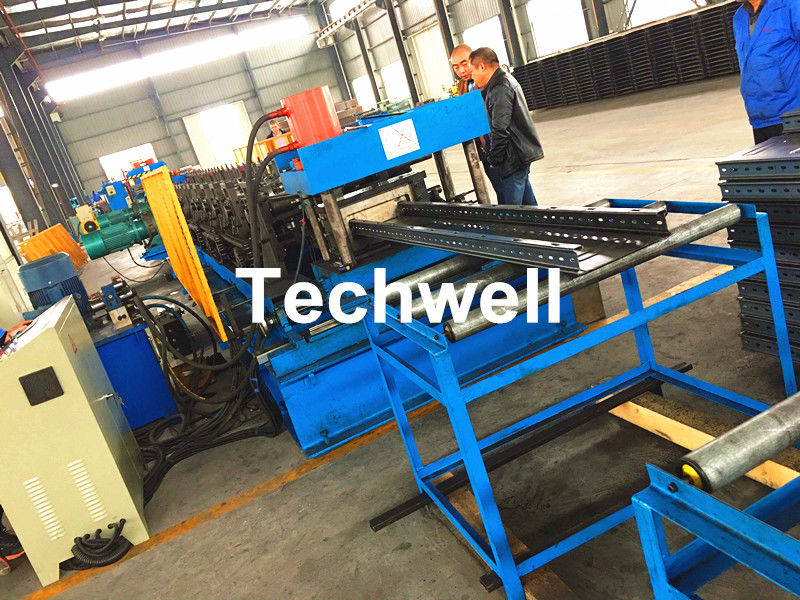

  5). Main Cable Tray Roll Forming Machine

  1. Forming material thickness: 1.5-2.5mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
  5. Shaft Diameter: Φ 65mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 18 stations
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 15KW
  11. Width adjustable motor 1.5KW
  12. Size adjustment: electrical power adjustment
  13. Drive type: Chain Drive

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



  6). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: Hydraulic Post-cutting after roll forming,
  2. When Cutting, Machine stop
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic Station Power: 15KW

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



  7). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine

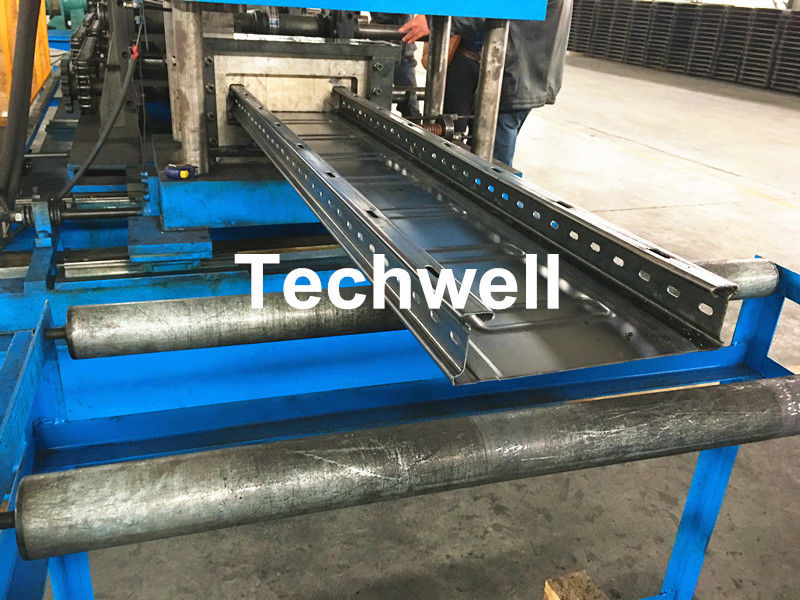

  8). Run-out Table

  1. Form: Steel welding structure, no-power exit rack
  2. Quantity:1 pieces

Auto Size Changing Cable Tray Profile Making Machine / Cable Tray Manufacturing Machine



   C). Main Components



 Components of Cable Tray Roll Forming Machine                      Quantity
 7 Ton Hydraulic Uncoiler                        1 Unit
 7 Rollers Leveling                        1 Unit
 Servo Feeding                        1 Unit
 Hydraulic Punching                        1 Unit
 Main Roll Forming Machine                        1 Unit
 Hydraulic Cutting                        1 Unit
 PLC Electrical Control Board                        1 Unit
 Hydraulic Stations                        1 Unit
 Run Out Tables                        1 Unit
