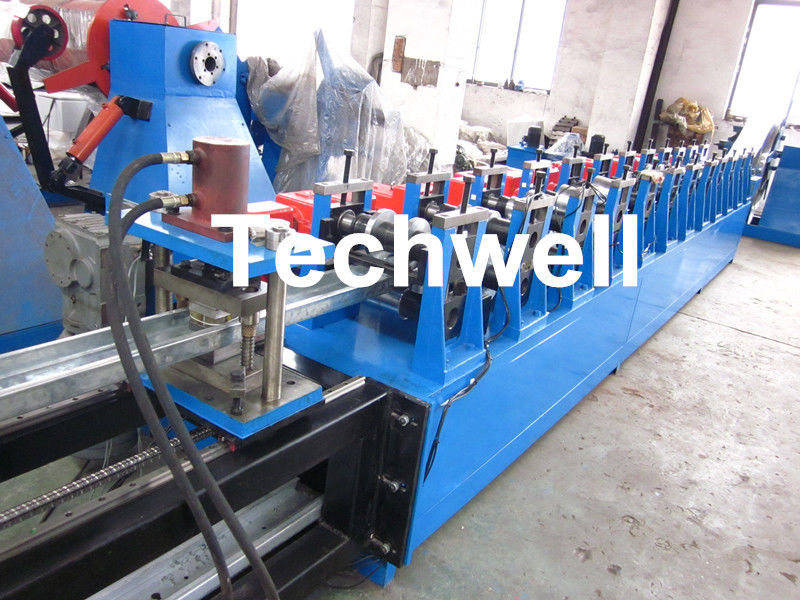

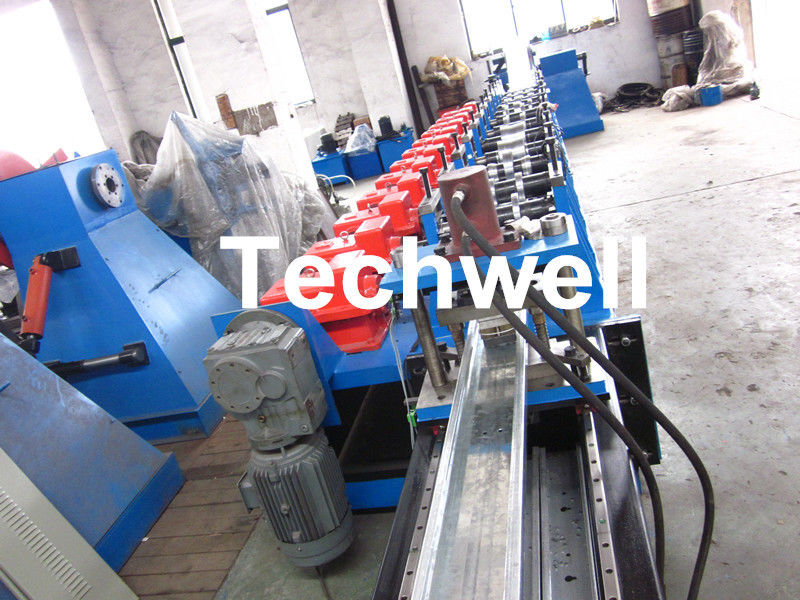

High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler

China High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler supplier
High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler supplier High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler supplier High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler supplier High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler supplier

Large Image :  High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: GI, Carbon Steel Forming Stations: About 16 Stations
Working Speed: About 0-15m/min Shaft Diameter: 80mm
Punching Type: Hydraulic Punching Machine Frame: High Grade Steel Welded And Tempering Treatment

GI, Carbon Steel High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler

   Main Specifications

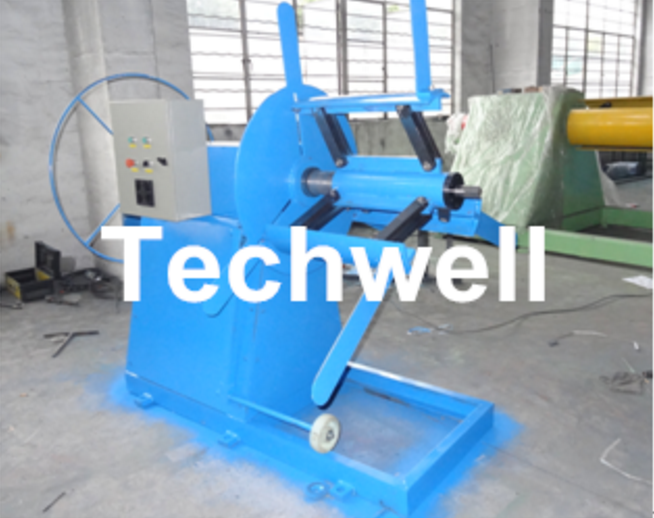

 1). 5Ton Manual Decoiler

  1. Machine frame: welding structure with shot lasting treatment
  2. Components: Base, brake device, inner hole support, Expanding / tighten device
  3. Weight capacity of decoiler: 5Ton Max.
  4. Max. coil width: 500mm
  5. Inner diameter of coil: 400-530mm
  6. Outer diameter of coil: Max. 1500mm

High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler


 2). Pinch Feeding & Leveling Device

  1. 2 Rollers pinch feeding
  2. 7 Rollers leveling ( Upper 3 rollers, lower 4 rollers)
  3. Leveling roller diameter: about Φ 90mm
  4. Leveling roller material: high grade 40Cr
  5. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  6. Motor power: about 4KW
  7. The purpose of this unit is to guide the metal sheet into the roll forming machine and make sure the metal sheet at the correct position with the roll forming system.
  8. It can be left and right adjusted the screw. Also the left and right adjusting can be independent operating.


 3). Hydraulic Punching Device

  1. Punchign type: Hydraulic punching type
  2. Punching Mould size: according to drawing
  3. Hydraulic power: 5.5KW


 4). Hydraulic Pre-Cutting Device

  1. Cutting type: Hydraulic flat cutting type, before roll forming after punching
  2. Material of blade: Cr12Mov with heat treatment ( HRC58-62 )
  3. Length measuring: Automatic encoder length measuring, brand: Omron
  4. Tolerance of length:+/-1.5mm
  5. No waste when cutting
  6. And no need to change cutting die


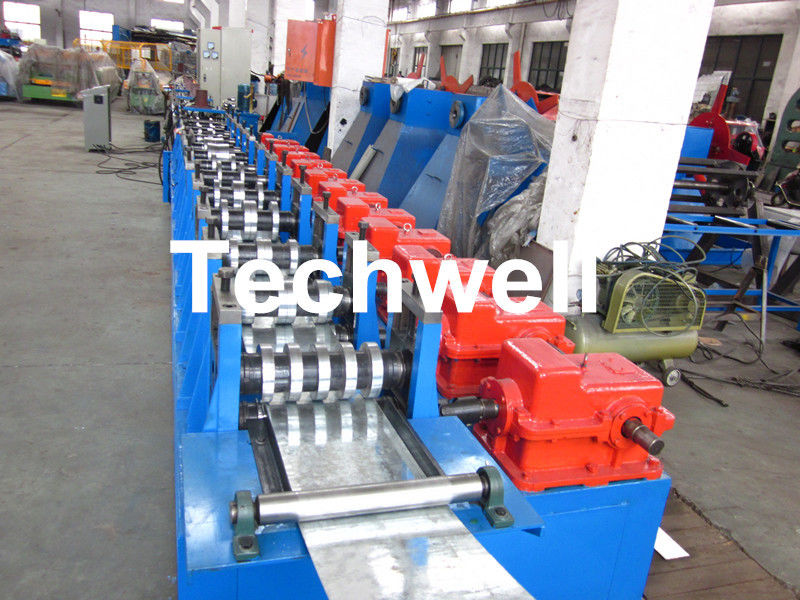

 5). Main Roll Forming Part

  1. Forming material thickness: 1.5-3.0mm
  2. Forming material type: Mild steel. GI
  3. Machine frame: high grade steel welded and tempering treatment
  4. Forming motor: about 15KW
  5. Drive type: Chain drive
  6. Shaft material: high grade 45# steel
  7. Shaft diameter: Φ 80mm
  8. Roller Material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm
  9. Forming speed: about 0-15m/min ( excluding cutting time )
  10. Forming station: ≈ 16 stations
  11. Calibration station: ≈ 2 stations
  12. The gap between upper rollers and bottom rollers can be adjusted by screw according to different thickness sheet


 6). Electrical Control System

  1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.
  2. Provide good man and machine screen, which can set the batches, plate length, and quantity.
  3. Operation type: Touching screen + Button
  4. Using encoder to calculate the number and measuring the length
  5. Electrical control: PLC frequency control system with touch screen
  6. PLC: PANASONIC Brand
  7. Encoder: OMRON Brand
  8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)


 7). Run-out Table

  1. It is used to support the finished panels
  2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition
  3. The frame of supporter is welded by square-steel
  4. Simple non-power table type

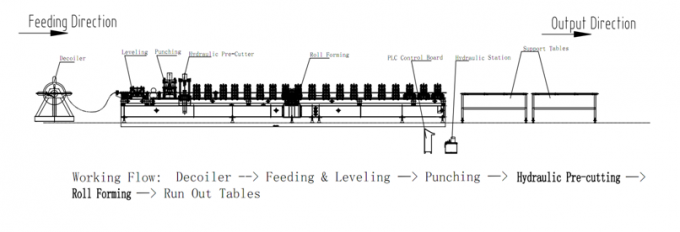

   Working Flowing

Decoiler ---- Pinch Feeding --- Leveling --- Hydraulic Punching --- Pre-cutting --- Main Roll Forming ---
Calibration Device --- Support Table

High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler

   Main Components


  • Decoiler / Uncoiler ------------------------------------------------------1 Unit
  • Pinch Feeding------------------------------------------------------------1 Unit
  • 7 Rollers Leveling -------------------------------------------------------1 Unit
  • Hydraulic Punching -----------------------------------------------------1 Unit
  • Pre-cutting ----------------------------------------------------------------1 Unit
  • Main Roll Fomring -------------------------------------------------------1 Unit
  • Hydraulic Station ---------------------------------------------------------1 Unit
  • Electrical Control Board ------------------------------------------------1 Unit
  • Run-out Table ------------------------------------------------------------1 Unit

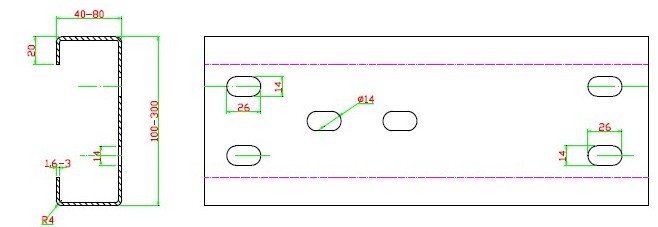

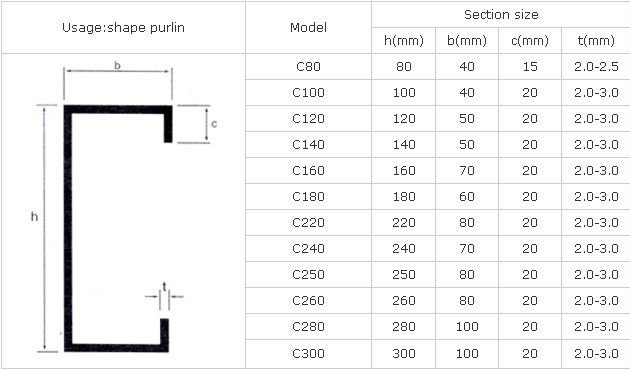

   Reference Profile Drawing

High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler
High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler



   Competitive Advantages


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

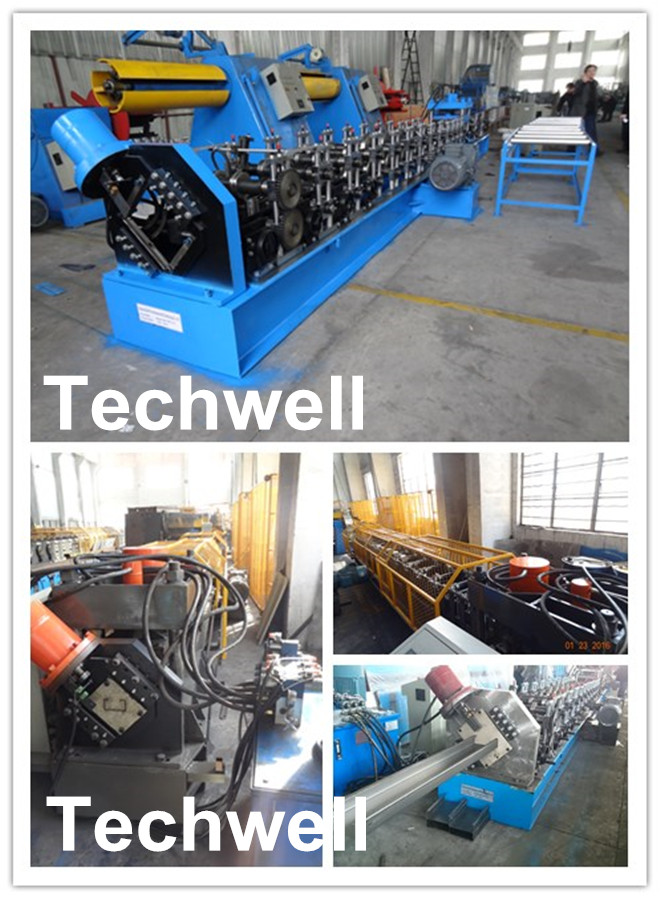

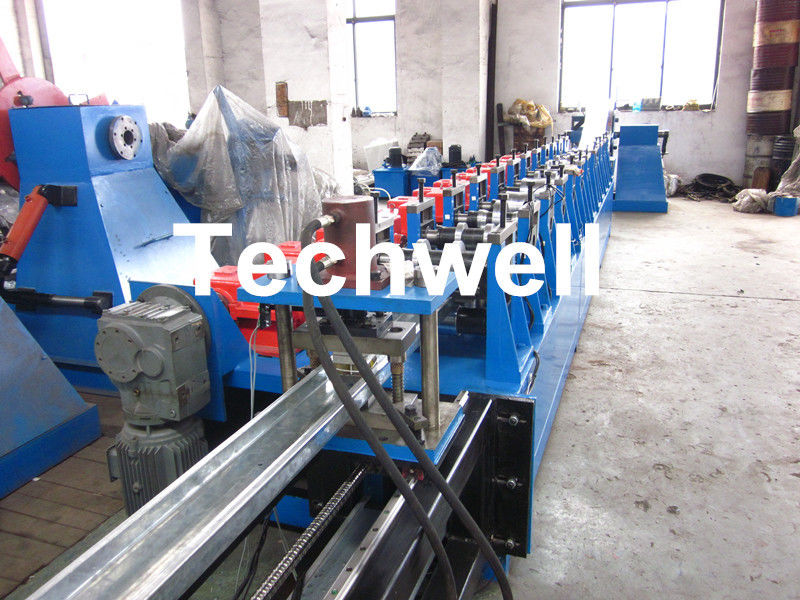

   More Machine Pictures

High Productivity C Purlin Roll Forming Machine With Manual Or Hydraulic Decoiler

   Contacts of WUXI TECHWELL


CompanyWuxi Techwell Machinery Co.,LTD
Websitewww.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile0086-15861597732( Lemon )
E-Mail / Skypesales@wxtechwell.com
Reference Video Linkhttps://youtu.be/K4RN47lJIaQ
https://youtu.be/4wyKGnTM1O0
https://youtu.be/SuMEdaBsX_U
https://youtu.be/c6uGKnAYBcg
