0-15M / Min C Shaped Purlin Roll Forming Machine , Gcr15 Steel Roller Material

0-15m/min Forming Speed C Shaped Purlin Roll Forming Machine With GCr15 Steel Roller Material

   Description of C Profile Roll Former

• This C purlin roll forming machine adopt coil production material to form C Profiles through 5 Ton manual decoiler, pinch feeding, leveling rollers, Punching unit, Pre-cutting, main roll forming part, hydraulic station, PLC control system and Non-power type support table.
• The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
• Forming Speed: about 0-15 m/min ( excluding punching & cutting time);

   Working Flowing of C Profile Roll Former

Decoiler ---- Pinch Feeding --- Leveling --- Hydraulic Punching --- Pre-cutting --- Main Roll Forming ---

Calibration Device --- Support Table

   Main Specifications

• Material: GI, Carbon steel
• Material thickness: 1.5-3.0mm
• Machine diameter: about 11500x1500x1300mm ( LXWXH )
• Weight of machine: about 10 Ton
• Decoiler: Manual or hydraulic decoiler ( customer can choose )
• Weight capacity of decoiler: 5 Ton
• Forming station: 14
• Principle axis: 75mm diameter
• Forming speed: 0-15m/min
• Drive type: 1.5' chain transmission
• Roller material: GCr15 steel, quenched and heated process
• Main power: 15KW
• Hydraulic power: 11KW
• Punching: hydraulic punching
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand

   Main Components

   Reference Profile Drawing

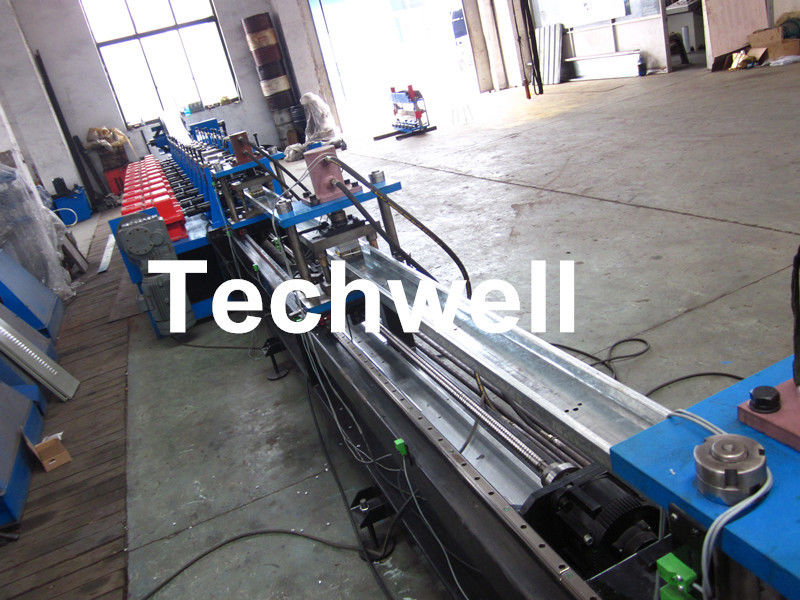

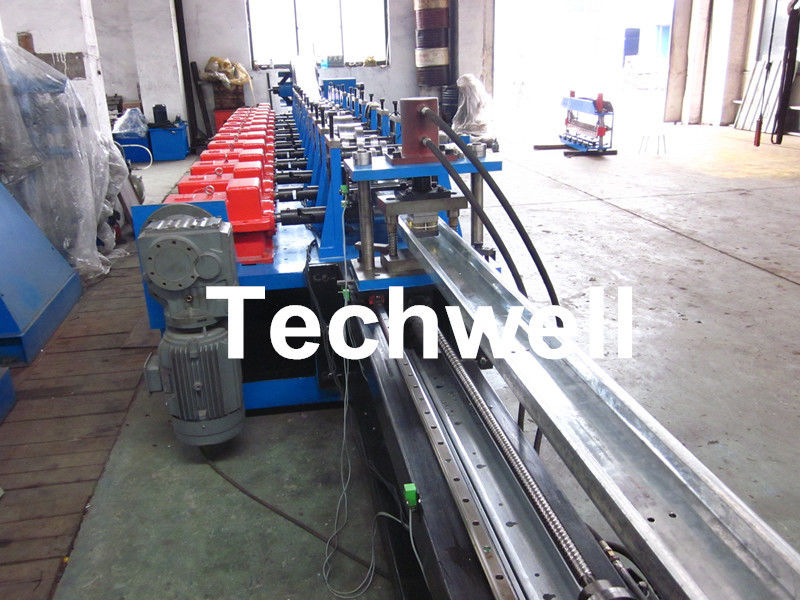

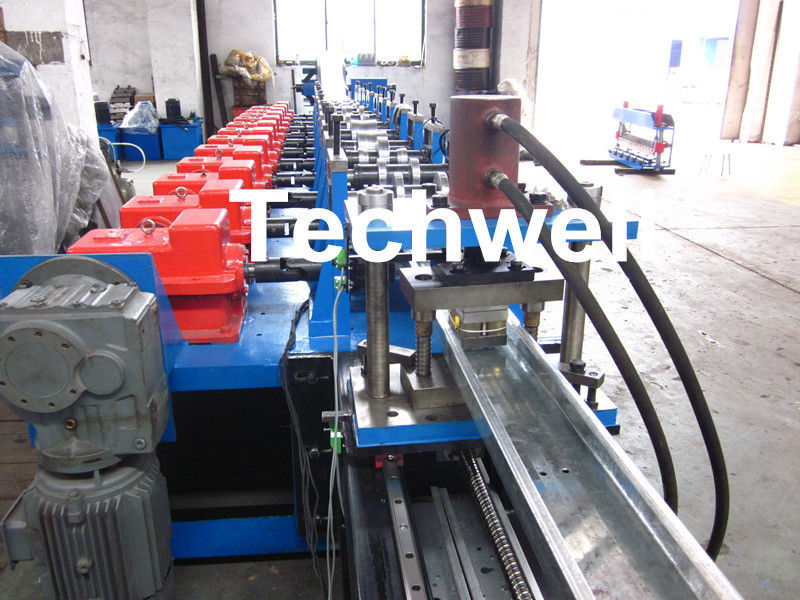

   More Machine Pictures
