Galvanized Color Steel Raw Material Continuous PU Sandwich Panel Production Line With PU Insulation And Aluminum Foil

Galvanized Color Steel Raw Material Continuous PU Sandwich Panel Production Line With PU Insulation And Aluminum Foil

Sandwich Panel Roll Forming Machine

Continuous Sandwich Panel Line

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-GTM

Contact Us

Request A Quote
Product Details
Sheet Thickness:
0.4-0.7mm
Width Of Panel:
400-1250mm
Core Density:
40-42 Kg/m2
Length Of Panel:
6m, 12m, 15m And Customized
Drive System:
Rubber Belt Drive Type
Total Power:
About 220KW
Product Description

Galvanized Color Steel Raw Material Continuous PU Sandwich Panel Production Line With PU Insulation And Aluminum Foil



   Description of PU Sandwich Panel Machine



  • Equipment shown here is used for continuously making sandwich panels with the facing layer (s) of color steel or galvanized sheet and the core material of polyurethane. Whole equipment is divided into PU insulation part and Facing sheet profiling part.
  • This line is easy to operate, high productivity, and reasonable price. Suitable for making roof wall color coated pu insulated sandwich panels and cool room insulated panels.
  • Whole line adopt PLC program control, with the communication module and inverter synchronization, highly automatically. Main machine adopt touch screen, simple operation. Productin line from uncoiler, roll forming, pu foaming, solidifying, automatically cutting, runout table ( opetional: auto stacker, auto packing ) to realize the auotmatically production process.



   Main Technical Specifications



1. (a) Thickness : roof steel panel 30-200mm and wall steel panel 30-200mm.

(b) PU foam density : 40±5 kg/m³

(c) Panel width : 50-1150mm

(d) Thickness of galvanizes color steel coil : 0.4mm~0.7mm



2. The production speed is different according to the panel thickness.



Recommended speed is 6M/min for 50mm thickness, 4M/min for 75mm thickness.



3. Speed of forming machine is 0~12m/min and adjustable. The length and amount of production can be set and count automatically by control panel.



4. Hydraulic material discharge stand can feed steel sheets automatically and keep accuracy during long time operation.

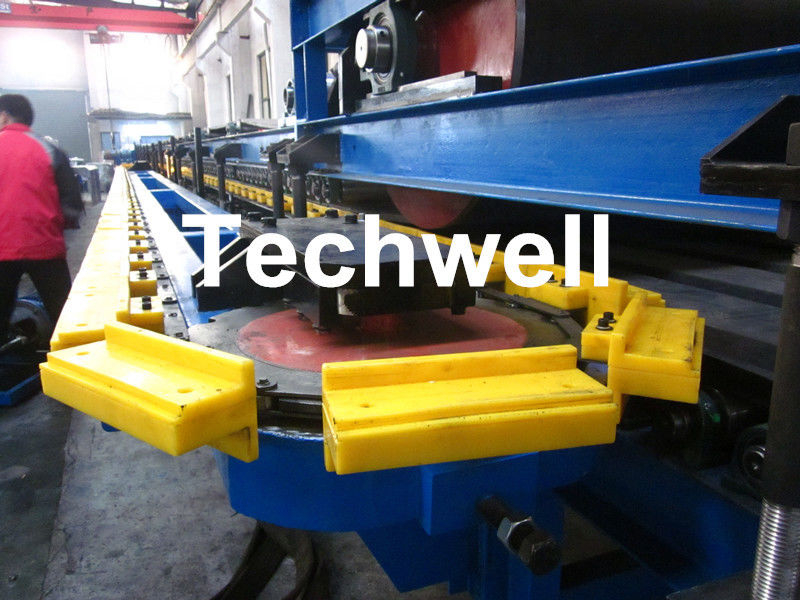

5. Caterpillar conveyor contains upper/lower construction and double-sided block belt. The effective thickness can be up to 200mm so it can provide a large variety of roof and wall products easily by changing the spec of the side blocks.



6. Bend saw cutter : Maximum thickness is 200mm. The suction channel is reserved for additional suction system to prevent the dust pollution.



7. The characteristic of this continuous rubber belt sandwich line is ALL parts including forming machine, lamination, conveyor, cutter and auto stacking equipment are synchronized by a central Ratio Setter control system. The user can easily control the speed through the main speed controller (VR).





   Working Flow Chart



Galvanized Color Steel Raw Material Continuous PU Sandwich Panel Production Line With PU Insulation And Aluminum Foil 0





   Applications



Roof wall sandwich panel, insulated sandwich panel, prefabricated house, prefab house, mobile house, cool room ...



Galvanized Color Steel Raw Material Continuous PU Sandwich Panel Production Line With PU Insulation And Aluminum Foil 1

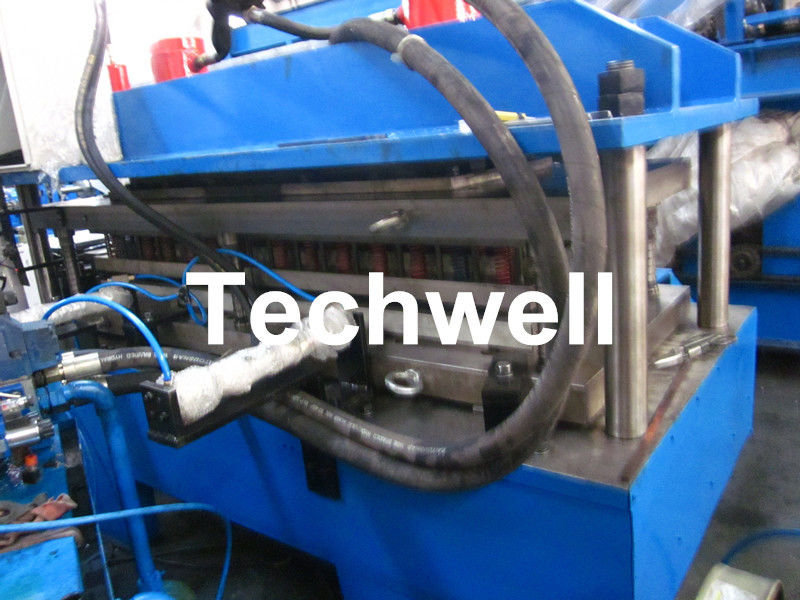

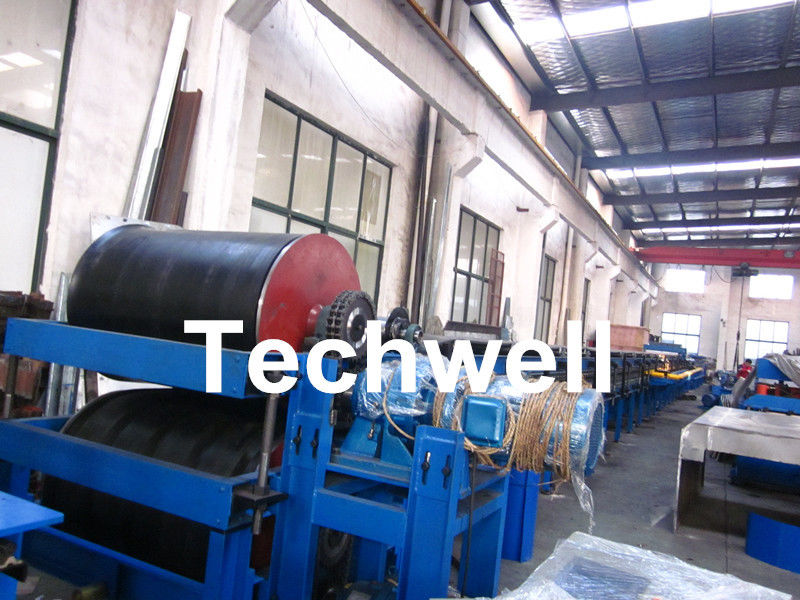

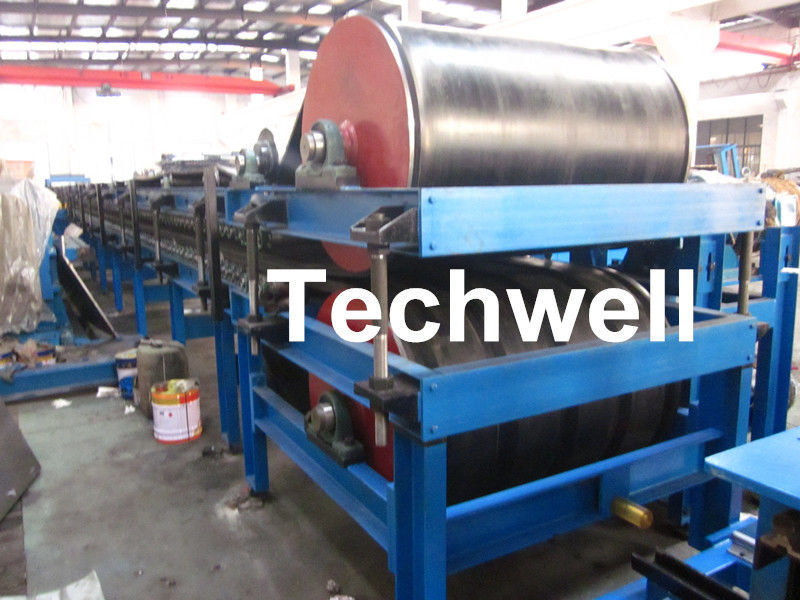

   More Machine Pictures



Galvanized Color Steel Raw Material Continuous PU Sandwich Panel Production Line With PU Insulation And Aluminum Foil 2
