Forming Material Type: GI Or Carbon Steel Leveling Device: 7 Rollers Leveling
Punching: Hydraulic Pre-Punching Shaft Diameter: 80mm
Forming Speed: 0-15m/min Hydraulic Power: 11KW

GI Or Carbon Steel Coil Forming Material Cable Profile Roll Forming Machine For Making Steel Cable Tray Sheets



   Introduction of Cable Ladder Roll Former





 1. This cable ladder roll forming machine adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.



 2. The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.



 3. Working Speed: about 0-15 m/min ( excluding punching & cutting time);

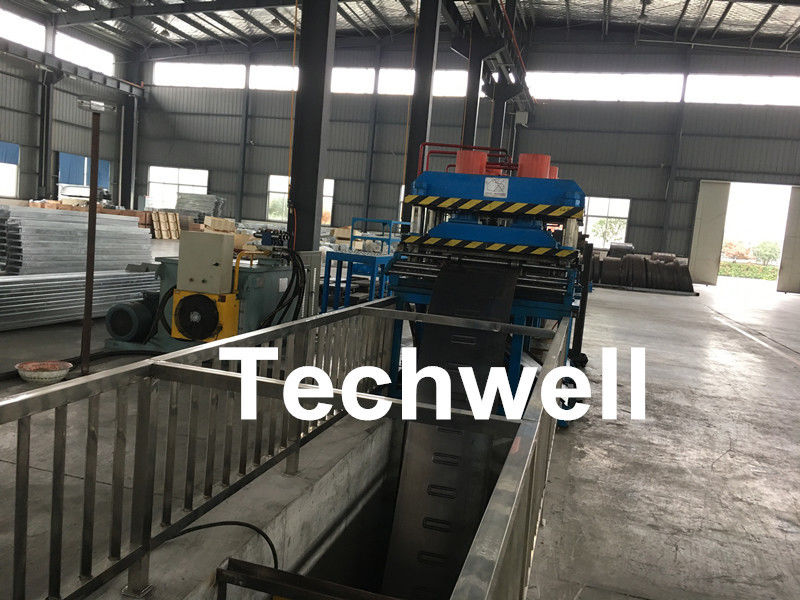

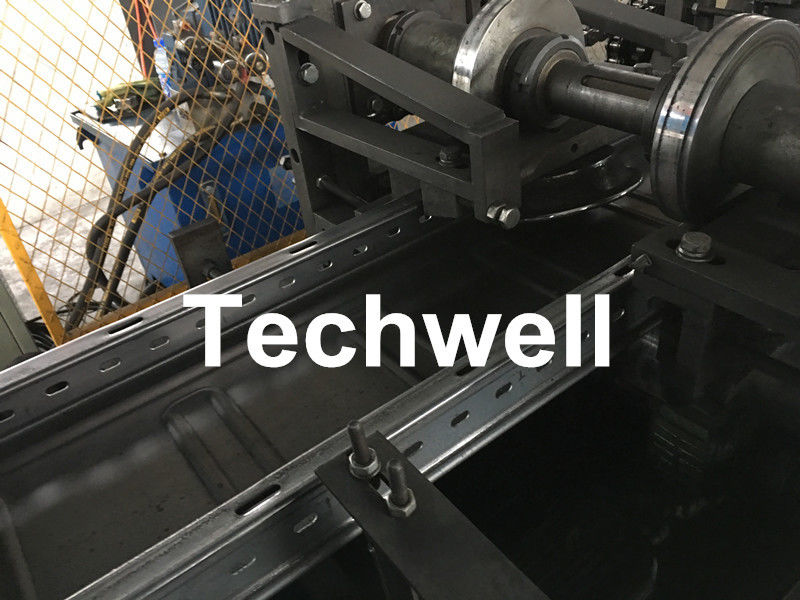

   Cable Tray Profile & Finished Cable Ladder Sheets



High Speed GI / Carbon Steel Coil Profile / Cable Tray Forming Machine 11KW

High Speed GI / Carbon Steel Coil Profile / Cable Tray Forming Machine 11KW



   Main Specifications



1) Forming material thickness: 1.5-2.5mm

2) Forming material type: GI or Carbon Steel

3) Yield Strength: 230-300Mpa

4) Machine Frame: high grade steel welded and tempering treatment

5) Forming Speed: 0-15m/min (excluding punching / cutting time)

6) Forming Motor: 15KW

7) Width adjustable motor 1.5KW

8) Size adjustment: electrical power adjustment

9) Drive type: Chain Drive

10) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

11) Shaft Diameter: Φ 85mm

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Punching TYpe: Hydraulic Pre-punching

15) Hydraulic Power: 11Kw

16) Cutting Blade: Hydraulic Cutting

17) Cutting Blade Material: Cr12Mov, Quench treatment, HRC58-62

18) Finished profile straightness tolerance ≤±1.5mm/10m

19) Finished profile angle tolerance ≤±1.5 degree/10m



   Working Flow Chart



Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table



   Main Components



  • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
  • Leveling Device ------------------------------------------------------------ 1 Unit
  • Servo Feeding -------------------------------------------------------------- 1 Unit
  • Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
  • Main Roll Forming Machine ---------------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------------------------1 Unit
  • PLC Electrical Control Board -------------------------------------------- 1 Unit
  • Hydraulic Stations ---------------------------------------------------------- 1 Unit
  • Run Out Table --------------------------------------------------------------- 1 Unit

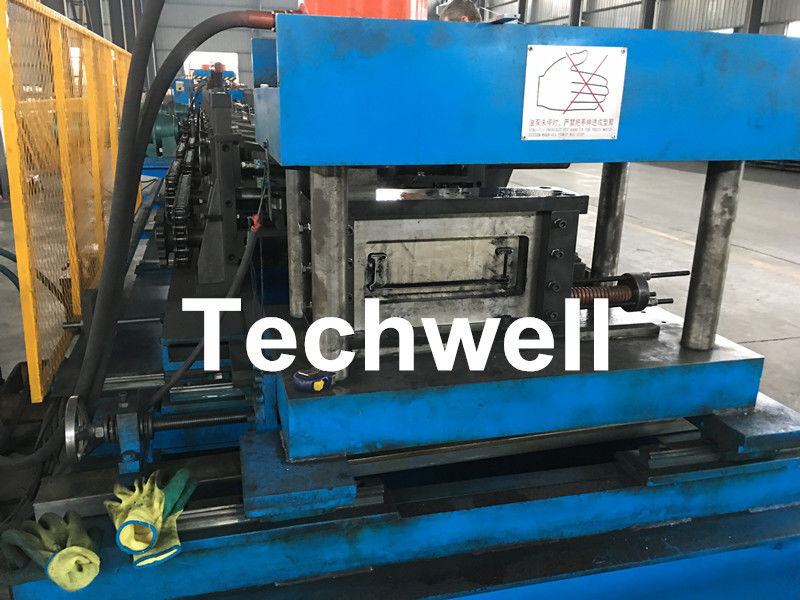

   More Machine Pictures
