1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler

China 1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler supplier
1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler supplier 1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler supplier 1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler supplier 1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler supplier

Large Image :  1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CBT300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: bare package
Delivery Time: 60-80 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 Sets
Contact Now
Detailed Product Description
Forming Material Thickness: 1.0-2.5mm Forming Material Type: GI Or Carbon Steel
Machine Frame: High Grade Steel Welded And Tempering Treatment Forming Speed: 0-15m/min (excluding Punching / Cutting Time)
Forming Motor: 15KW Roller Material: High Grade GCr15 Steel, And Roller Surface With Hard Chrome ≥ 0.05mm

1.5-2.5mm Material Thickness Steel Metal Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler



   Introduction

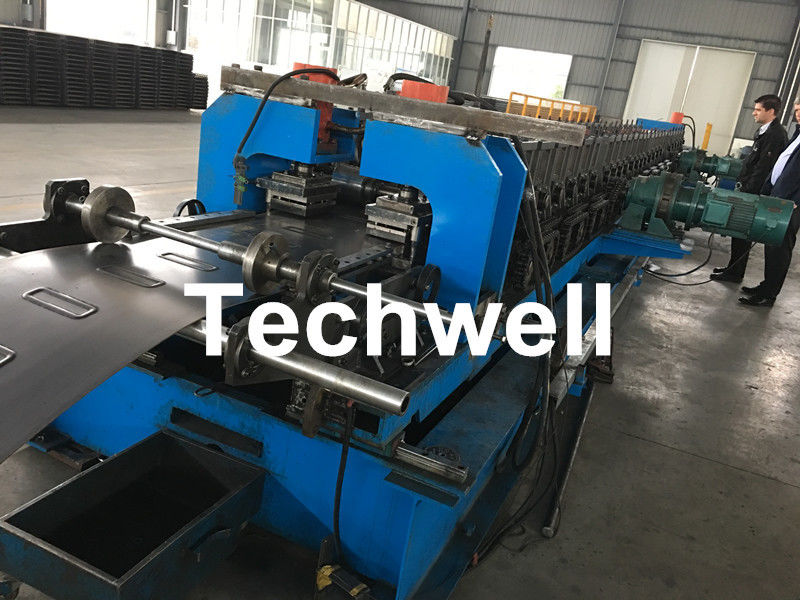

Cable tray roll forming machine is used to produce sheet metal by continuous cold rolling.This type of colored tile forming machine is composed decoiler, Pront-cutting device, feeding device, machine base, punching device, roll forming unit, and back- cutting device, run out table, hydraulic system and electronic control system.



   Main Specifications



1) Forming material thickness: 1.0-2.5mm

2) Forming material type: GI or Carbon Steel

3) Yield Strength: 230-300Mpa

4) Machine Frame: high grade steel welded and tempering treatment

5) Forming Speed: 0-15m/min (excluding punching / cutting time)

6) Forming Motor: 15KW

7) Width adjustable motor 1.5KW

8) Size adjustment: electrical power adjustment

9) Drive type: Chain Drive

10) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

11) Shaft Diameter: Φ 80mm

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Punching TYpe: Hydraulic Pre-punching

15) Hydraulic Power: 15Kw

16) Cutting Blade: Hydraulic Cutting

17) Cutting Blade Material: Cr12Mov, Quench treatment, HRC58-62

18) Finished profile straightness tolerance ≤±1.5mm/10m

19) Finished profile angle tolerance ≤±1.5 degree/10m



   Main Components



Components of Cable Tray Roll Forming Machine Quantity
5 Ton Hydraulic Uncoiler 1 Unit

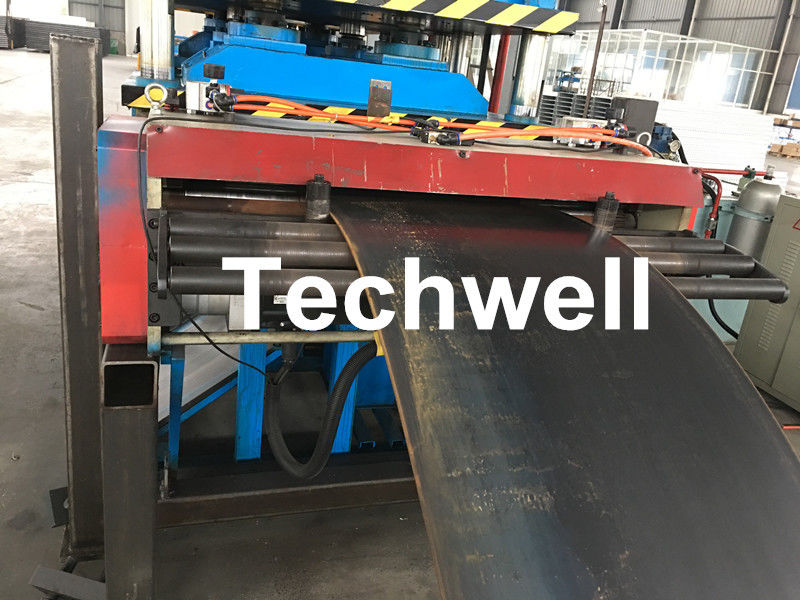

7 Rollers Leveling 1 Unit
Servo Feeding 1 Unit
Hydraulic Punching 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Hydraulic Stations 1 Unit
Run Out Tables 1 Unit



   Cable Tray Profile Drawing



1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler

1.5-2.5mm Carbon Steel Cable Tray Roll Forming Machine With 5 Ton Hydraulic Uncoiler



   Applications



Cable tray, cable ladder, cable profile, tray profile



   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
