0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control

China 0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control supplier
0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control supplier 0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control supplier 0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control supplier 0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control supplier

Large Image :  0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CBT300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: bare package
Delivery Time: 60-80 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 Sets
Contact Now
Detailed Product Description
Machine Frame: High Grade Steel Welded And Tempering Treatment Forming Speed: 0-15m/min (excluding Punching / Cutting Time)
Roller Material: High Grade GCr15 Steel, And Roller Surface With Hard Chrome ≥ 0.05mm Shaft Diameter: 80mm
Hydraulic Power: 11KW Punching: Hydraulic Pre-Punching

Cable Ladder Roll Forming Machine with Panasonic PLC Frequency Control, Hydraulic Pre-Punching Device



   Main Technical Specifications



NO   Technical Specifications Remark
1 Hydraulic Decoiler Decoiler Type Hydraulic decoiler
Weight capacity of decoiler 7 Ton
Electric releasing coil, hydraulic expanding, tension
Motor power 5.5KW
Hydraulic system power 4.0KW
2 7 Roller Leveling Machine Leveling device 2 Rollers pinch feeding, 7 rollers leveling
Leveling roller diameter about Φ 90mm
Leveling roller material high grade 40Cr
Heat treatment of leveling roller surface Hi-frequency quench treatment
Leveling motor power 4.0KW
3 Servo Feeding Machine Servo motor power 3.0KW
To exact accurately feed the sheet into punching machine according to the set program
4 Hydraulic Pre-Punching Machine Punching Die Cr12 Mov, quenching process
Punching Die size according to drawing
Punching power 15KW
Punching controlled by PLC
5 Main Roll Forming Machine Raw material GI or Carbon Steel
Coil thickness 1.0-2.5mm
Roller stands approx 18 stations
Type of forming machine Chain transmission
Roller material high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
Shaft diameter ¢75mm
Material of Shaft 40Cr high grade Steel tempering treatment (HB220-260)
Motor power 15 KW
Cutting type Hydrauluic cutting
Hydraulic power 15 KW
Forming speed about 0-15m/min
6 Hydraulic Cutting & Hydraulic Station Cutting type Hydraulic Post-cutting
Cutting blade material Cr12Mov, Quench treatment, HRC58-62
Hydraulic power 15 KW
Length measuring Automatic encoder length measuring
Tolerance of length +/-1.5mm for each piece end product
Encoder OMRON Brand
7 Electrical System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
8 Hydraulic Station Hydraulic station Famous Chinese brand
9 Support Tables Table type Simple nonpower type
Function To support the finished corrugated panels





   Cable Tray Profile Drawing



0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control

0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control



   Main Components



  • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
  • Leveling Device ------------------------------------------------------------ 1 Unit
  • Servo Feeding -------------------------------------------------------------- 1 Unit
  • Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
  • Main Roll Forming Machine ---------------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------------------------1 Unit
  • PLC Electrical Control Board -------------------------------------------- 1 Unit
  • Hydraulic Stations ---------------------------------------------------------- 1 Unit
  • Run Out Table --------------------------------------------------------------- 1 Unit

   Working Flow Chart



Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table



   Applications

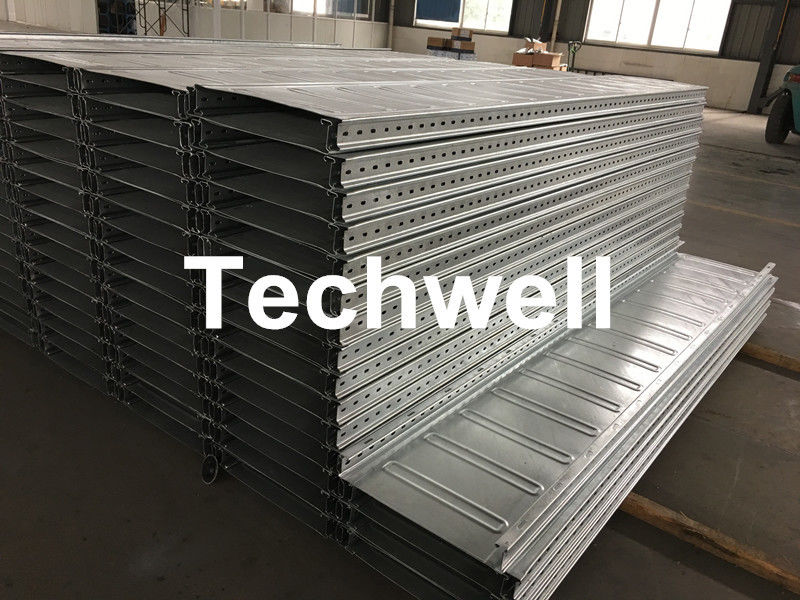

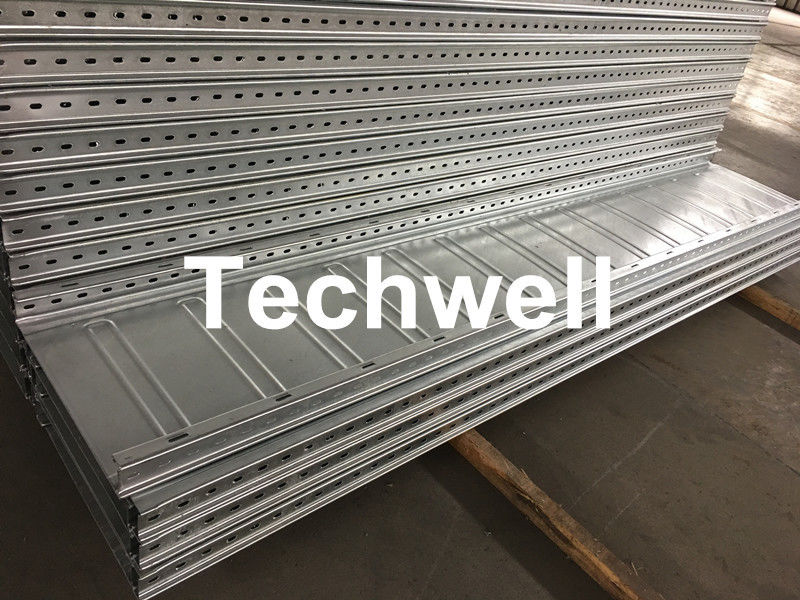

Cable tray, cable ladder, cable profile, tray profile

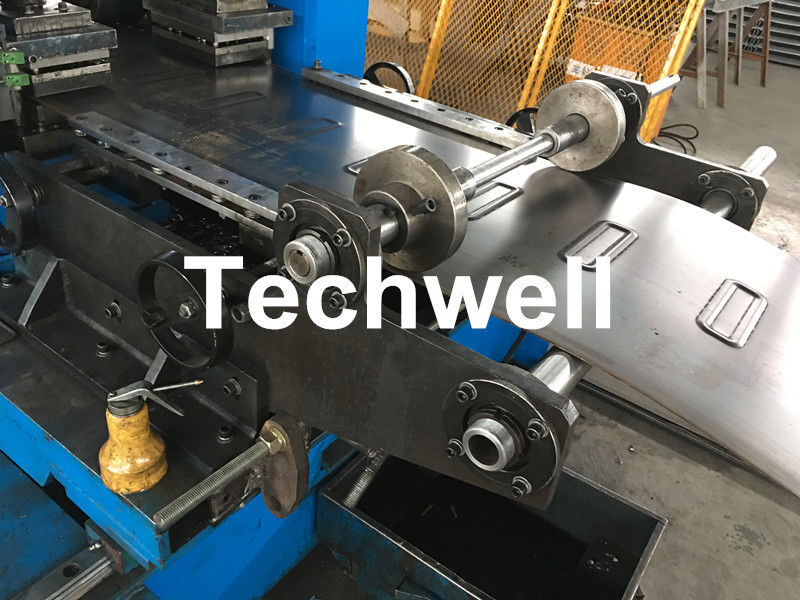

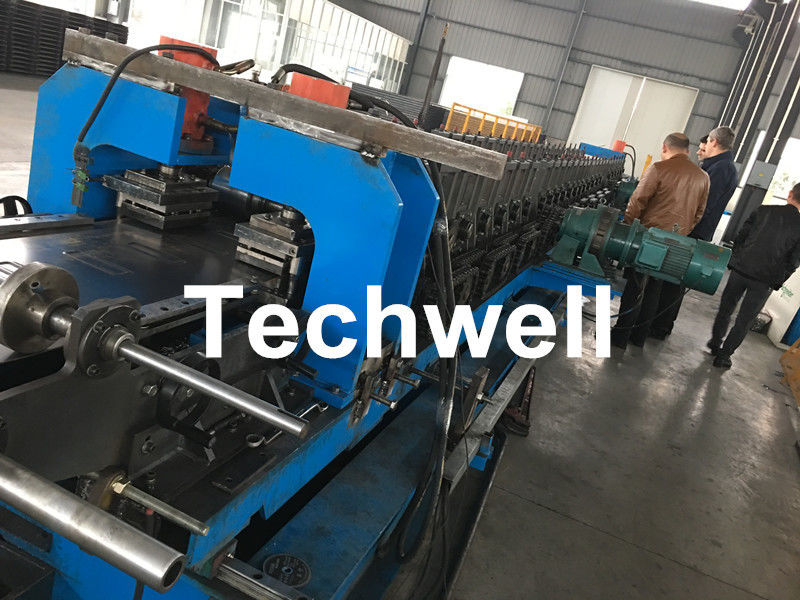

   More Machine Pictures



0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control
