GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine

China GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine supplier
GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine supplier GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine supplier GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine supplier GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine supplier

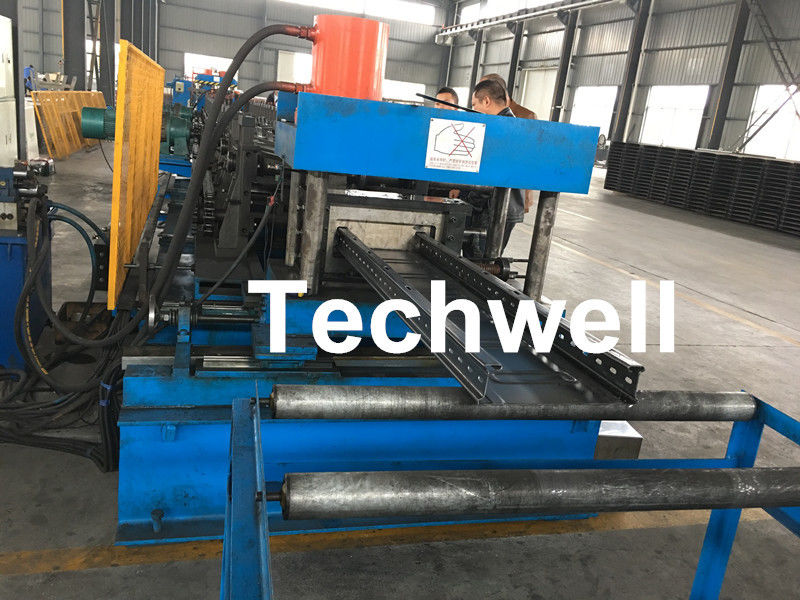

Large Image :  GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CBT300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: bare package
Delivery Time: 60-80 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 Sets
Contact Now
Detailed Product Description
Roller Stations: 20 Stations Width Of The Profile: 100-600mm
Rolling Speed: 0-15m/min Roller Material: High Grade GCr15 Steel, And Roller Surface With Hard Chrome ≥ 0.05mm
Machine Frame: High Grade Steel Welded And Tempering Treatment Shaft Diameter: 80mm

GCr Quench Treatment Roller Cable Profile Roll Forming Machine With Punching Press Machine For 100-600mm Width



   Main Specifications



NO   Technical Specifications Remark
1 Hydraulic Decoiler Decoiler Type Hydraulic decoiler
Weight capacity of decoiler 7 Ton
Electric releasing coil, hydraulic expanding, tension
Motor power 5.5KW
Hydraulic system power 4.0KW
2 7 Roller Leveling Machine Leveling device 2 Rollers pinch feeding, 7 rollers leveling
Leveling roller diameter about Φ 90mm
Leveling roller material high grade 40Cr
Heat treatment of leveling roller surface Hi-frequency quench treatment
Leveling motor power 4.0KW
3 Servo Feeding Machine Servo motor power 3.0KW
To exact accurately feed the sheet into punching machine according to the set program
4 Hydraulic Pre-Punching Machine Punching Die Cr12 Mov, quenching process
Punching Die size according to drawing
Punching power 15KW
Punching controlled by PLC
5 Main Roll Forming Machine Raw material GI or Carbon Steel
Coil thickness 1.0-2.5mm
Roller stands approx 18 stations
Type of forming machine Chain transmission
Roller material high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
Shaft diameter ¢75mm
Material of Shaft 40Cr high grade Steel tempering treatment (HB220-260)
Motor power 15 KW
Cutting type Hydrauluic cutting
Hydraulic power 15 KW
Forming speed about 0-15m/min
6 Hydraulic Cutting & Hydraulic Station Cutting type Hydraulic Post-cutting
Cutting blade material Cr12Mov, Quench treatment,HRC58-62
Hydraulic power 15 KW
Length measuring Automatic encoder length measuring
Tolerance of length +/-1.5mm for each piece end product
Encoder OMRON Brand
7 Electrical System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
8 Hydraulic Station Hydraulic station Famous Chinese brand
9 Support Tables Table type Simple nonpower type
Function To support the finished corrugated panels



   Cable Tray Profile Drawing



GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine



   Main Components



  • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
  • Leveling Device ------------------------------------------------------------ 1 Unit
  • Servo Feeding -------------------------------------------------------------- 1 Unit
  • Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
  • Main Roll Forming Machine ---------------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------------------------1 Unit
  • PLC Electrical Control Board -------------------------------------------- 1 Unit
  • Hydraulic Stations ---------------------------------------------------------- 1 Unit
  • Run Out Table --------------------------------------------------------------- 1 Unit



   Working Flow Chart



Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table

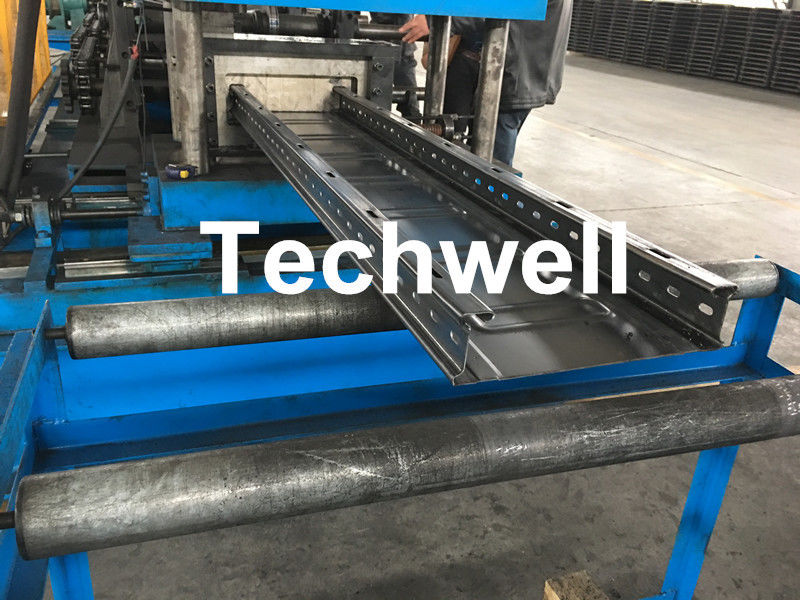

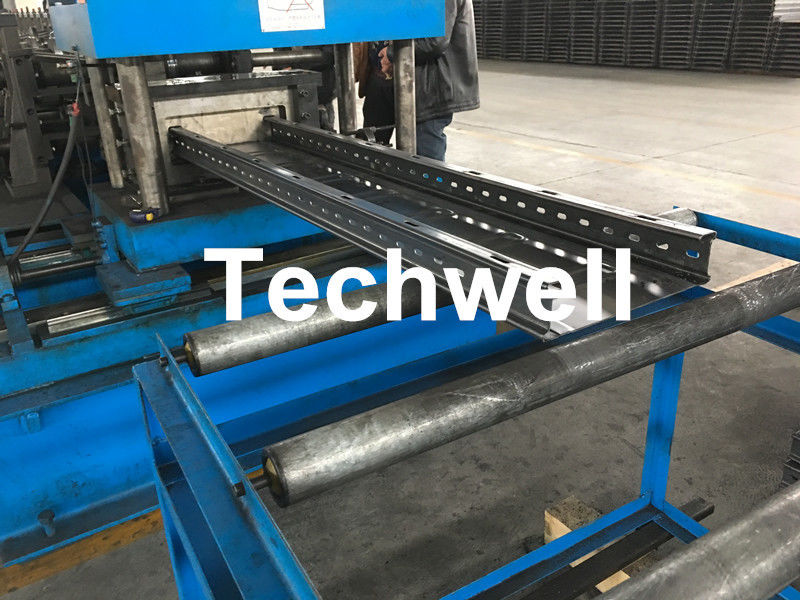

   Finished Cable Tray Pictures



GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine



   Applications



Cable tray, cable ladder, cable profile, tray profile



   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

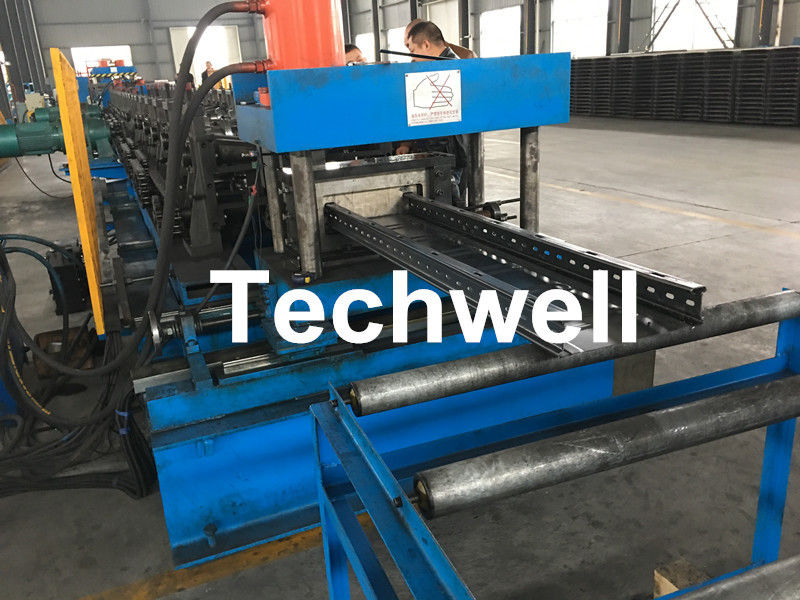

   More Machine Pictures



GCr Quench Treatment Roller Cable Tray Roll Forming Machine With Punching Press Machine
