Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control

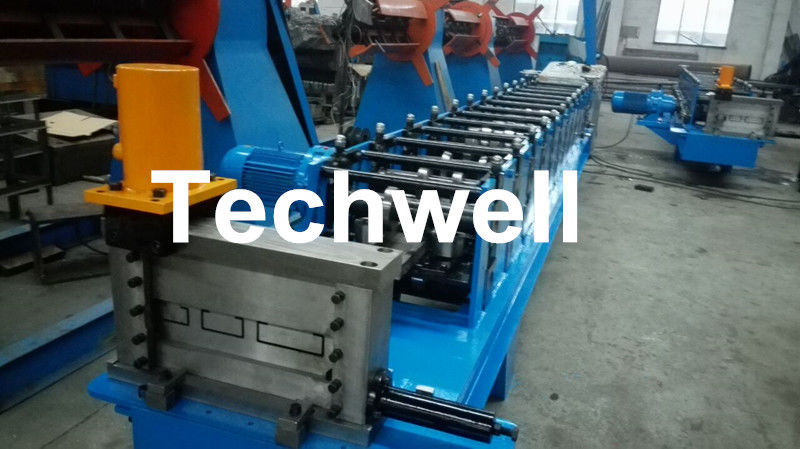

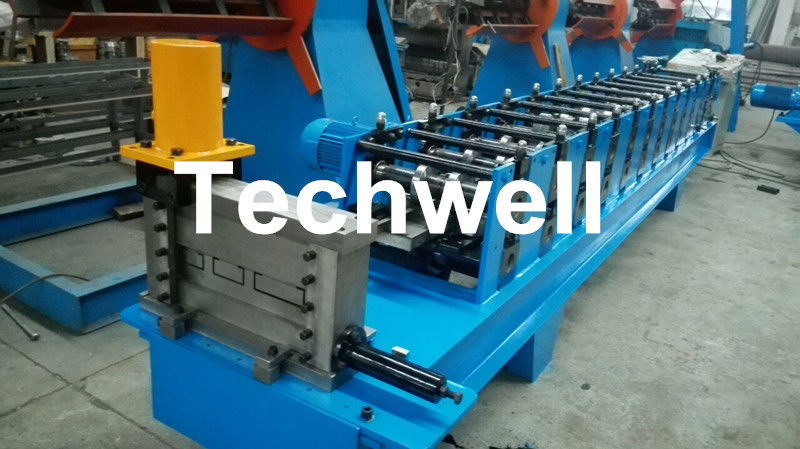

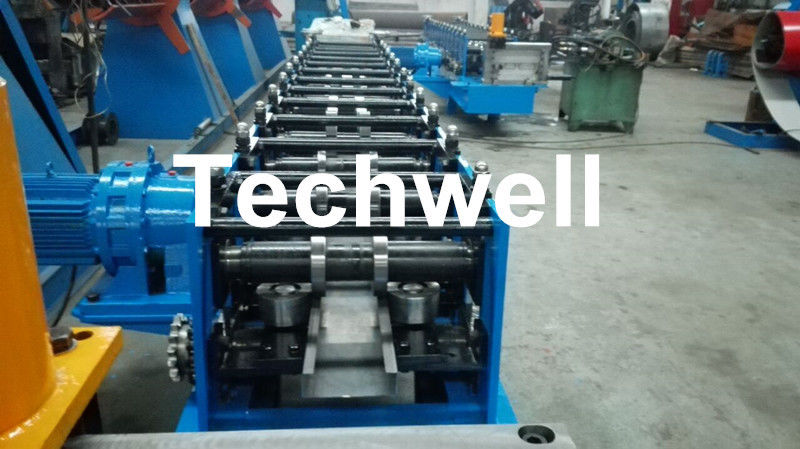

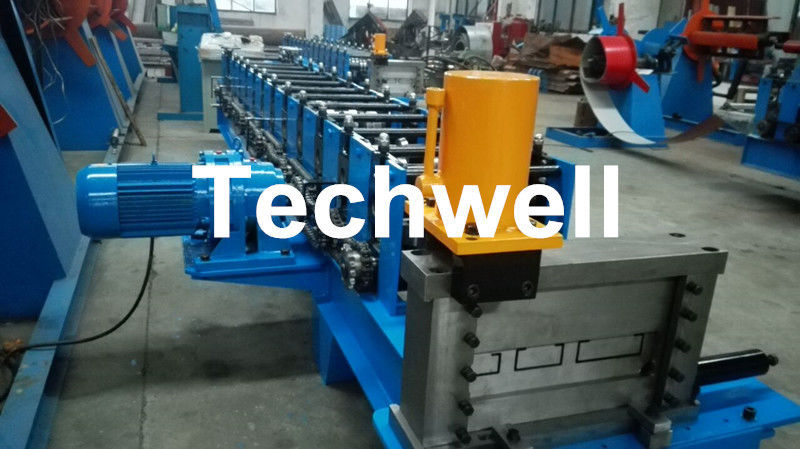

Large Image : Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE, ISO
Model Number:	TW-C300

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard Packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 Sets

Contact Now

Detailed Product Description

Roller Stations:	18 Stations	Cutting Type:	Hydraulic Cutting
Cutting Blade Material:	Cr12 Steel	Machine Weight:	About 10T
Main Power:	11KW	Hydraulic Power:	7.5KW
High Light:	Z Purlin Roll Forming Machine , CZ Purlin Roll Forming Machine

Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control

Main Specifications of C Purlin Roll Forming Machine

Material: GI, Carbon steel
Material thickness: 1.5-3.0mm
Machine diameter: about 11500x1500x1300mm ( LXWXH )
Weight of machine: about 10 Ton
Decoiler: Manual or hydraulic decoiler ( customer can choose )
Weight capacity of decoiler: 5 Ton
Forming station: 18 stations
Principle axis: 75mm diameter
Forming speed: 0-15m/min
Drive type: 1.5' chain transmission
Roller material: GCr15 steel, quenched and heated process
Main power: 11KW
Hydraulic power: 7.5KW
Punching: hydraulic punching
Cutting Type: Hydraulic cutting
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand

Profile Drawing

Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control 0

Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control 1

Main Components

Decoiler ----------------------------------------------------------------------- 1 Unit
Feeding & Leveling --------------------------------------------------------- 1 Unit
Main roll forming machine ------------------------------------------------- 1 Unit
Hydraulic punching device ------------------------------------------------ 1 Unit
Hydraulic cutting device --------------------------------------------------- 1 Unit
Hydraulic Station ------------------------------------------------------------ 1 Unit
PLC computer control ----------------------------------------------------- 1 Unit
Output table ------------------------------------------------------------------ 1 Unit

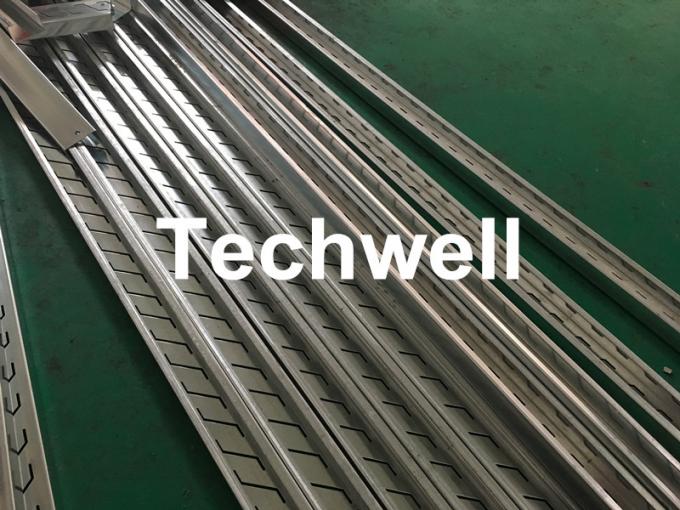

Applications

C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure

Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control 2

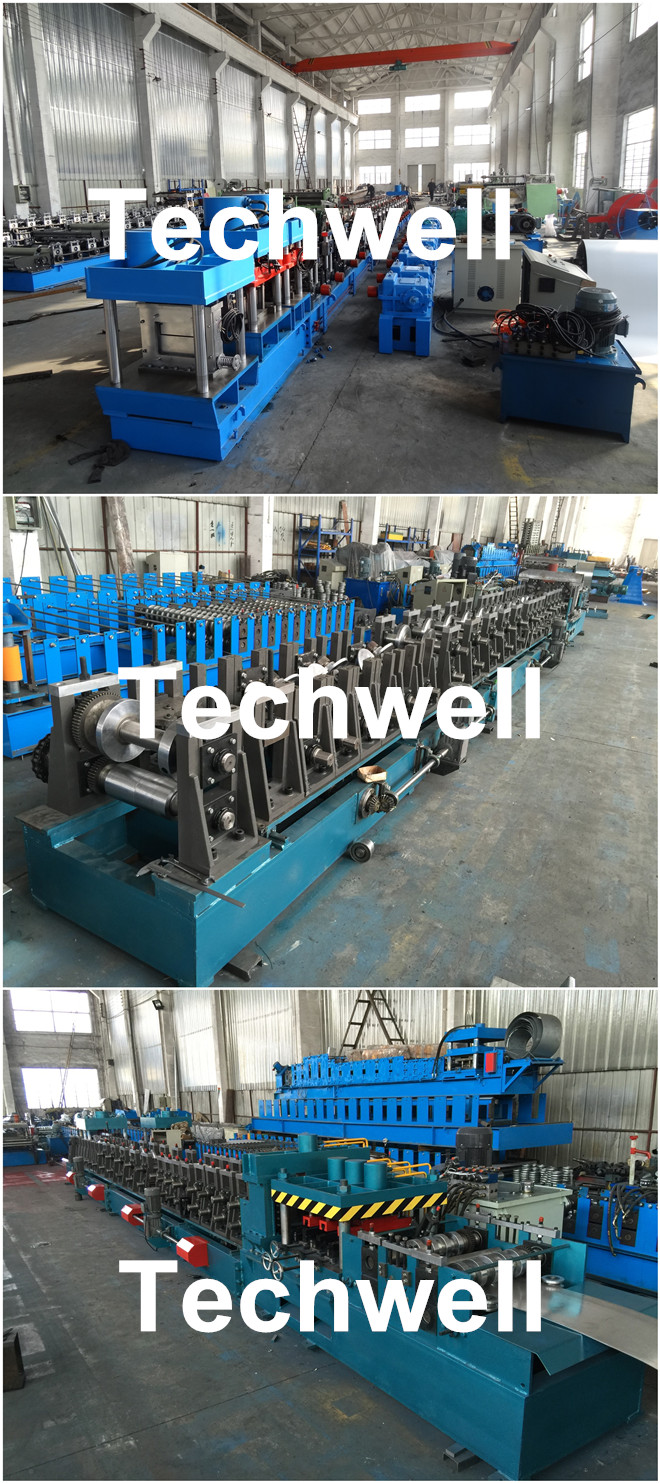

More Machine Pictures

Galvanized Stainless Steel C Channel Roll Forming Machine By PANASONIC PLC Frequency Control 3

Contact Details

Item	Contact Methods
Contact Person	Lemon
E-mail / Skype	sales@wxtechwell.com
Tel / Whatsapp/ IMO	+86-15861597732
Website	https://www.wxtechwell.com
