Place of Origin:
China
Brand Name:
TECHWELL
Certification:
CE, ISO
Model Number:
TW-C300
Contact Us

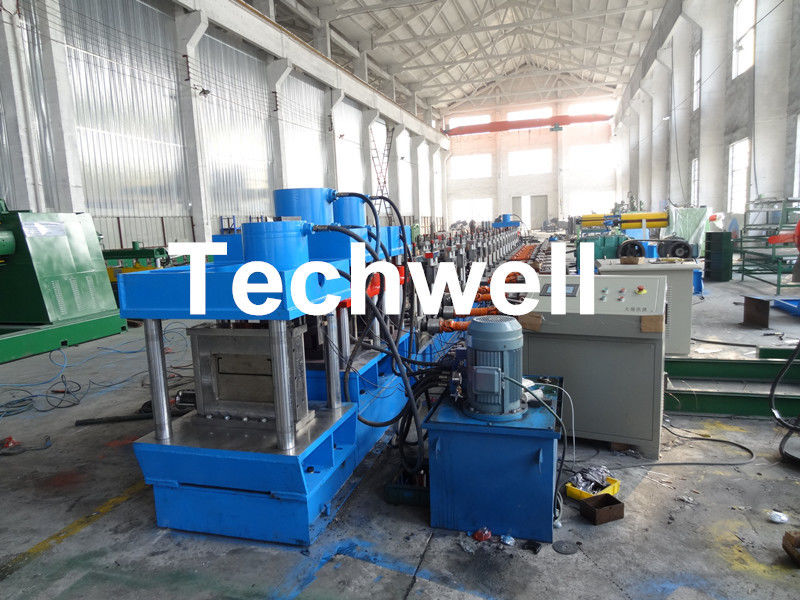

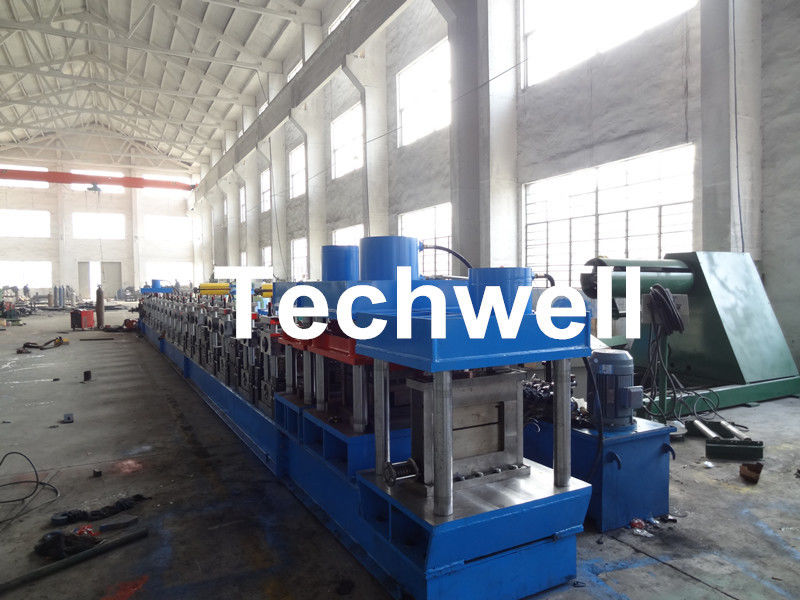

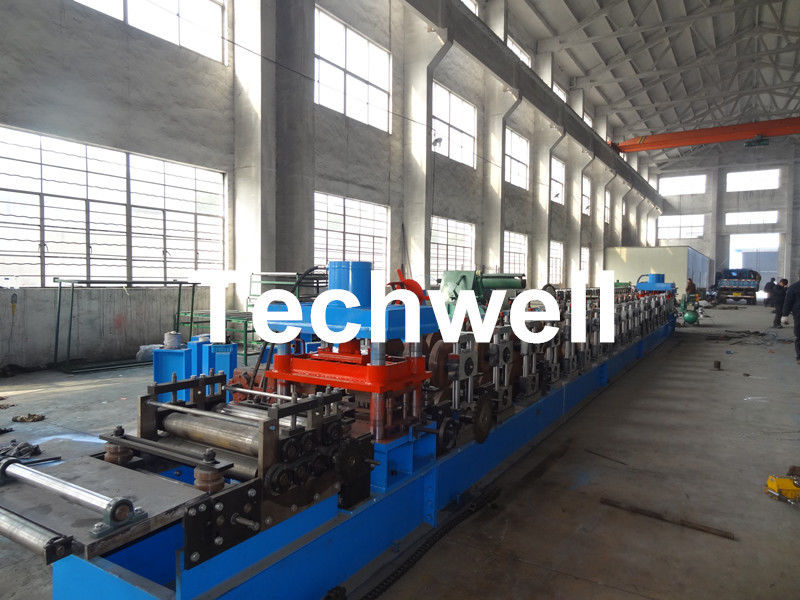

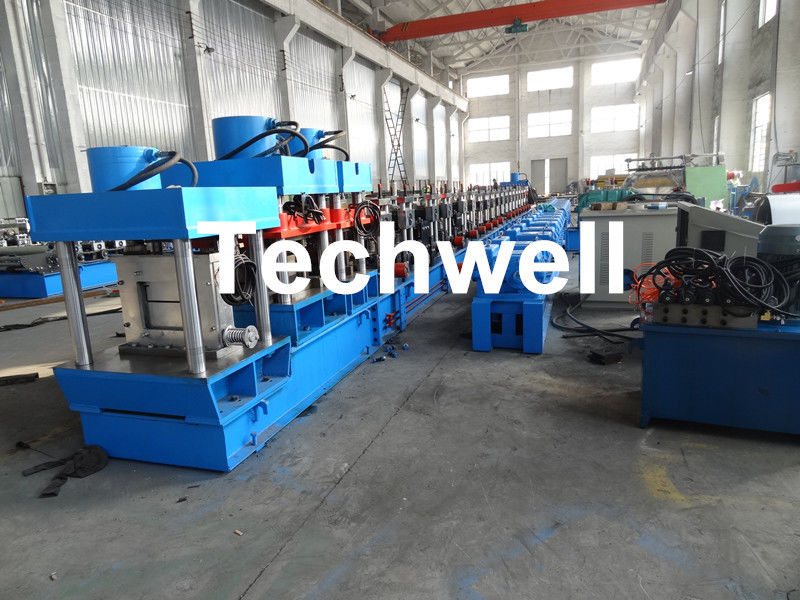

Gear Box Driving Type Purlin Roll Forming Machine For Making C / Z Channel With 1.5-3.0mm Thickness
Technical Parameter
| NO | Item | Parameter | Remark | |
| 1 | Suitable | Type | Galvanized Coil | |
| Width | Depend on profile | |||
| Thickness | 1.5-3.0mm | |||
| Yield Strength | Max. 350Mpa | |||
| 2 | Forming Station | about 18 Stations | Depend on final design | |
| 3 | Forming Speed | about 0-15m/min excluding punching, cutting time | ||
| 4 | Shaft Diameter | 80mm | ||
| 5 | Roller Material | GCr15 Steel | With Hard Chrome | |
| 6 | Drive Type | Gear Box Drive | ||
| 7 | Punching Model | Hydraullic Post Punching | ||
| 8 | Punching Groups | Depend on hole patterns | ||
| 9 | Cutting Model | Hydraulic Cutting | ||
| 10 | Power Source | Type | 380V/3PH/50HZ | Or Customized |
| Main Power | 11 KW | |||
| Hydraulic power | 7.5KW | |||
| 11 | PLC Control System | PANASONIC | Operation; Screen + Button | |
| 12 | Machine Weight | About 10T | ||
Working Flowing Process
Manual Decoiler --- Feeding Guide & Leveling Device --- Roll Forming --- Punchign & Cutting --- Run out table
Main Components
Applications
C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure
Reference Profile Drawing
Competitive Advantaegs
High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
Simple to operate when assemble
Easy to handle the products
Direct manufacturer, provide with high quality and best price.
