High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine

China High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine supplier
High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine supplier High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine supplier High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine supplier High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine supplier

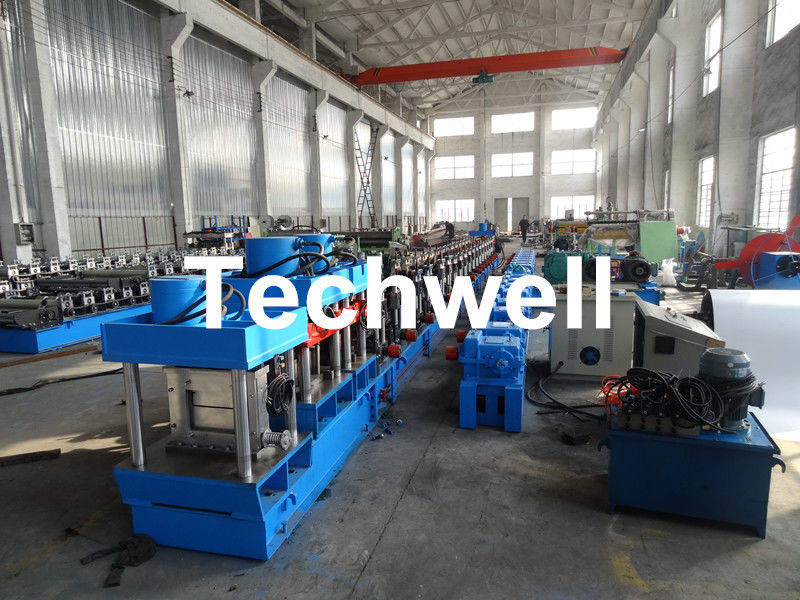

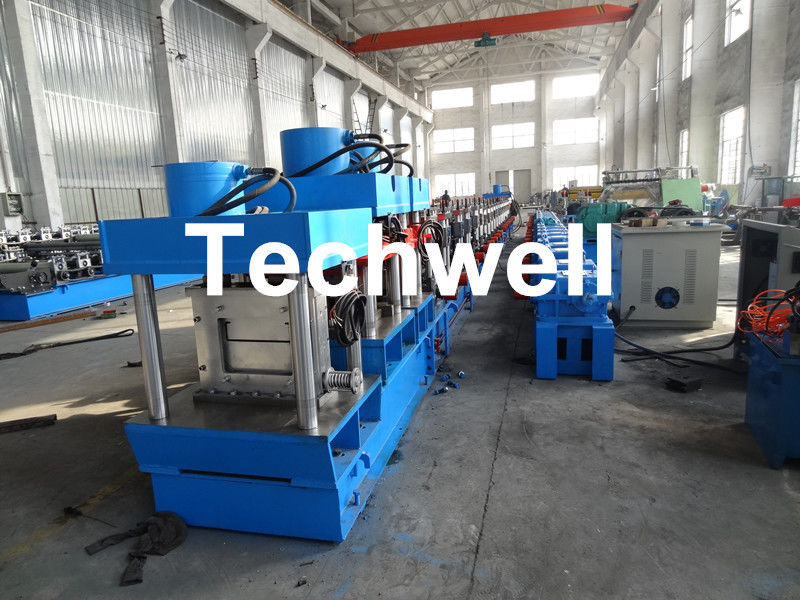

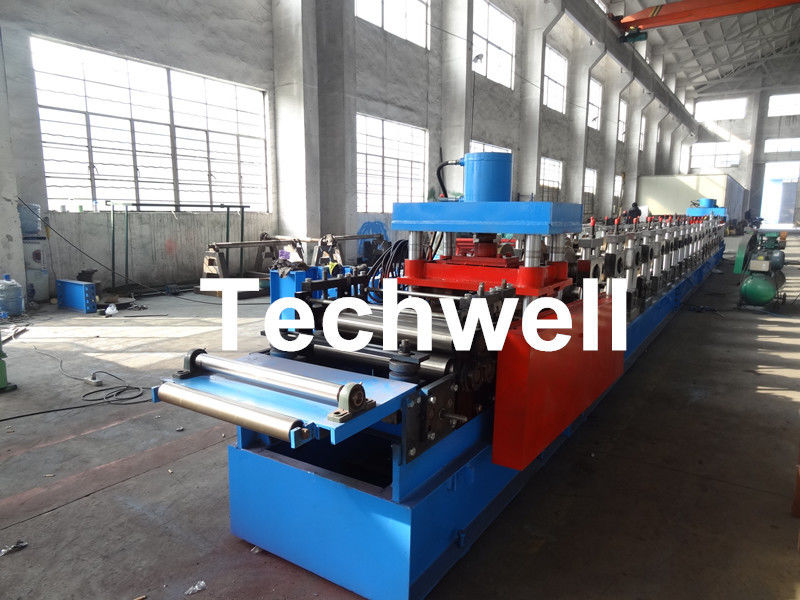

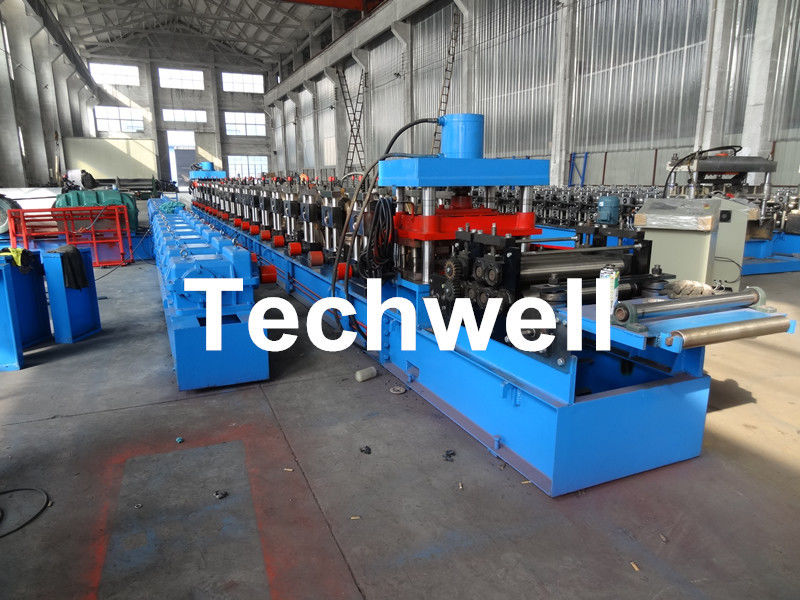

Large Image :  High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Material: GI, Carbon Steel Principle Axis: 80mm Diameter
Punching: Hydraulic Punching Forming Stations: About 17
Main Power: 18KW Roller Material: GCr15 Steel, Quenched And Heated Process

High Frequency PLC Control C / Z Purlin Roll Forming Machine, C Channel Roll Forming Machine



   Main Specifications



  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Machine diameter: about 11500x1500x1300mm ( LXWXH )
  • Weight of machine: about 12 Ton
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: about 17
  • Principle axis: 80mm diameter
  • Forming speed: 0-15m/min
  • Drive type: gear box transmission
  • Roller material: GCr15 steel, quenched and heated process
  • Main power: 18 KW
  • Hydraulic power: 11KW
  • Punching: hydraulic punching
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



   Working Flowing



Manual Decoiler --- Feeding Guide & Leveling Device --- Roll Forming --- Punchign & Cutting --- Run out table



   Main Components



Decoiler 1 Unit
Feeding & Leveling 1 Unit
Main roll forming machine 1 Unit
Hydraulic punching device 1 Unit
Hydraulic cutting device 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit





   Reference Profile Drawing



High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine





   Applications



C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure



   Competitive Advantages



High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

Simple to operate when assemble

Easy to handle the products

Direct manufacturer, provide with high quality and best price.



   Factory Pictures



High Frequency PLC Control C / Z Purlin Roll Forming Machine , C Channel Roll Forming Machine
