GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness

Good quality Purlin Roll Forming Machine for sales
Good quality Purlin Roll Forming Machine for sales
Wuxi TECHWELL provide good quality roll forming machines, till now, the machines have been working 3 years, no any break, we are very satisfied.

—— Javier

WUXI TECHWELL SUPPLY HIGH QUALITY MACHINES WITH GOOD AFTER SERVICE AND REASONABLE PRICE, WHO ARE A RELIABLE MANUFACTURER IN CHINA.

—— ROOFTECH CO., LIMITED

I'm Online Chat Now

GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness

China GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness supplier
GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness supplier GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness supplier GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness supplier GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness supplier

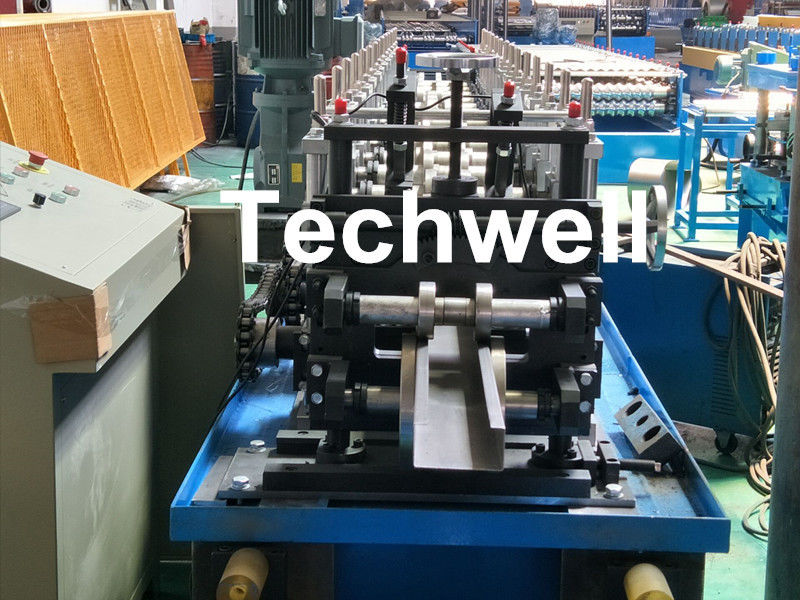

Large Image :  GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Coil Thickness: 1.5-3.0mm Raw Material: Mild Steel, GI
Forming Stations: 16 Stations (Depend On Profiles) Diameter Of Shaft: 80mm
Shaft Material: High Grade 45# Steel Drive Type: Chain Transmission

GI, Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed, 1.5-3.0mm Forming Thickness



   Technical Parameter



NO Item Parameter Remark
1 Suitable Type Galvanized Coil
Width Depend on profile
Thickness 1.5-3.0mm
Yield Strength Max. 350Mpa
2 Forming Station about 18 Stations Depend on final design
3 Forming Speed about 0-15m/min excluding punching, cutting time
4 Shaft Diameter 80mm
5 Roller Material GCr15 Steel With Hard Chrome
6 Drive Type Chain Drive
7 Punching Model Hydraullic Post Punching
8 Punching Groups Depend on hole patterns
9 Cutting Model Flying Cutting
10 Power Source Type 380V/3PH/50HZ Or Customized
Main Power 11 KW
Hydraulic power 7.5KW
11 PLC Control System PANASONIC Operation; Screen + Button





   Working Flowing



Manual Decoiler --- Feeding Guide & Leveling Device --- Roll Forming --- Punchign & Cutting --- Run out table



   Main Components



  • Decoiler ----------------------------------------------------------------------- 1 Unit
  • Feeding & Leveling --------------------------------------------------------- 1 Unit
  • Main roll forming machine ------------------------------------------------- 1 Unit
  • Hydraulic punching device ------------------------------------------------ 1 Unit
  • Cutting device --------------------------------------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------------------------------ 1 Unit
  • PLC computer control ----------------------------------------------------- 1 Unit
  • Output table ------------------------------------------------------------------ 1 Unit



   Applications



C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure



GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness





   Competitive Advantages



High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

Simple to operate when assemble

Easy to handle the products

Direct manufacturer, provide with high quality and best price.

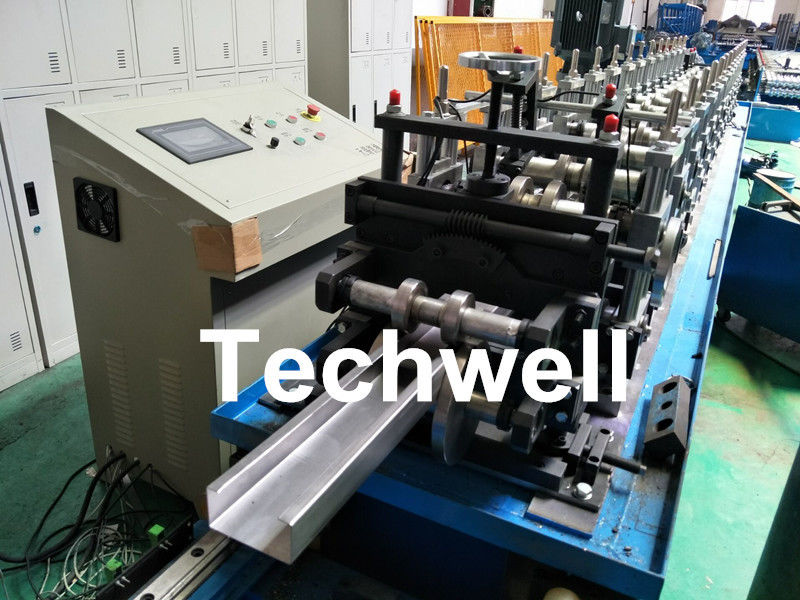

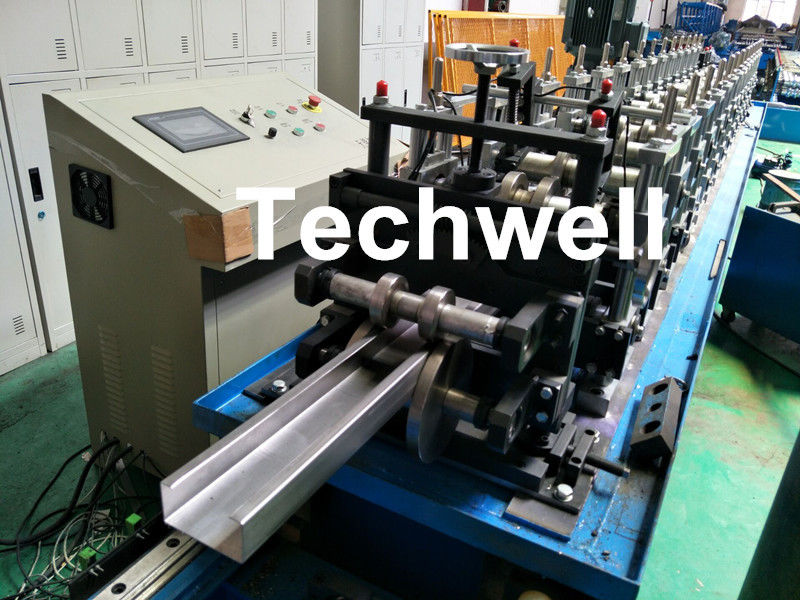

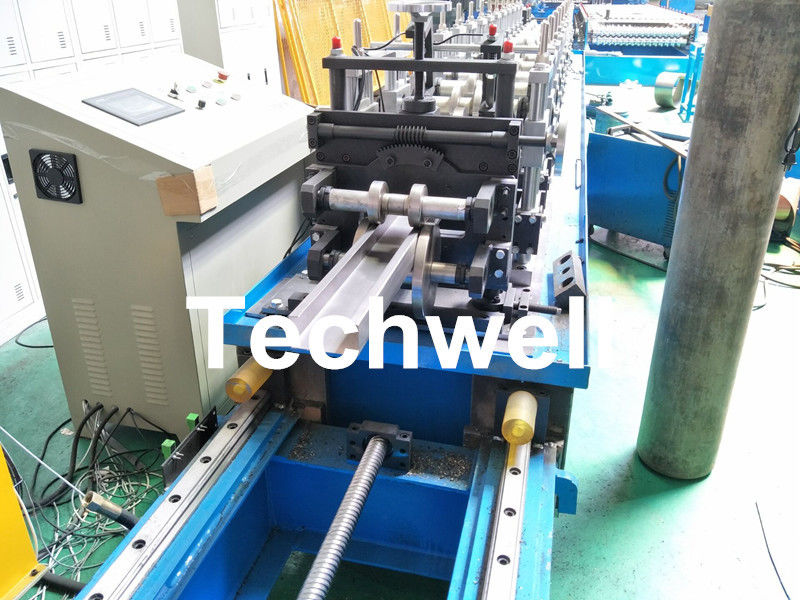

   More Machine Pictures



GI , Carbon Steel C Profile Roll Forming Machine With 0-15m/min Working Speed , 1.5-3.0mm Forming Thickness
