Auto Changeover Between 150 And 300mm Cable Tray Profile Roll Forming Machine

Auto Changeover Between 150 And 300mm Cable Tray Profile Roll Forming Machine

Cable Tray Making Machine

cable tray manufacturing machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-CBT300

Contact Us

Request A Quote
Product Details
Material Thickness:
1.5-2.5mm
Feeding Type:
Servo Feeding
Leveling Device:
7 Rollers Leveling
Forming Stations:
About 18 Stations
Control System:
Automatic PLC Control System
Yield Strength:
230-300Mpa
Product Description

Auto Changeover Between 150 And 300mm Cable Tray Profile Forming Machine / Cable Ladder Roll Forming Machine



   Main Technical Specifications of Cable Tray Roll Former



1). 4 Ton Hydraulic Decoiler

1. Machine frame: welding structure with shot lastingtreatment
2. Description: Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.
3. Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling
4. Electric releasing coil, hydraulic expanding, tension
5. I.D: 508mm, 610mm
6. Weight capacity: 4 Ton
7. Motor power: 4.0KW
8. Hydraulic system power: 3.0KW

2). Leveling Device

1. 2 Rollers pinch feeding, 7 rollers leveling
2. Leveling roller diameter: about Φ 90mm
3. Leveling roller material: high grade 40Cr
4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
5. Leveling motor power: 4KW

3). Servo Feeding Machine

1. Servo motor power: 3KW
2. Servo motor brand: YASKAWA (JAPAN)
3. To exact accurately feed the sheet into punching machine according to the set program

4). Hydraulic Pre-Punching Machine

1. Punching Die: Cr12 Mov, quenching process
2. Punching Die size: according to drawing
3. Punching Power: 15KW
4. Punching controlled by PLC

5). Main Cable Tray Roll Forming Machine

1. Forming material thickness: 1.0-2.5mm
2. Forming material type: GI or Carbon Steel
3. Machine Frame: high grade steel welded and tempering treatment
4. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
5. Shaft Diameter: Φ 70mm
6. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
7. Forming Station: ≈ 18 stations
8. Forming Speed: 0-15m/min excluding punching / cutting time
9. Forming Motor: 15KW
10. Size adjustment: electrical power adjustment
11. Drive type: Chain drive

6). Hydraulic Cutting & Hydraulic Station

1.Cutting type: Hydraulic Post-cutting after roll forming,
2. When Cutting, Machine stop
3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
4. Hydraulic Station Power: 15KW





   Main Components



Components of Cable Tray Roll Forming Machine Quantity
4 Ton Hydraulic Uncoiler 1 Unit
7 Rollers Leveling 1 Unit
Servo Feeding 1 Unit
Hydraulic Punching 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Hydraulic Stations 1 Unit
Run Out Table 1 Unit





   Reference Profile Drawing



 Auto Changeover Between 150 And 300mm Cable Tray Profile Roll Forming Machine 0

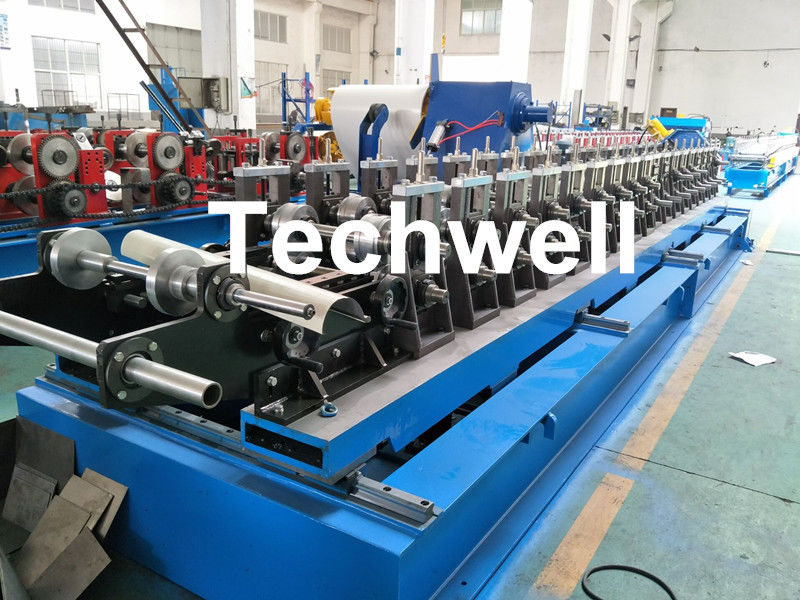

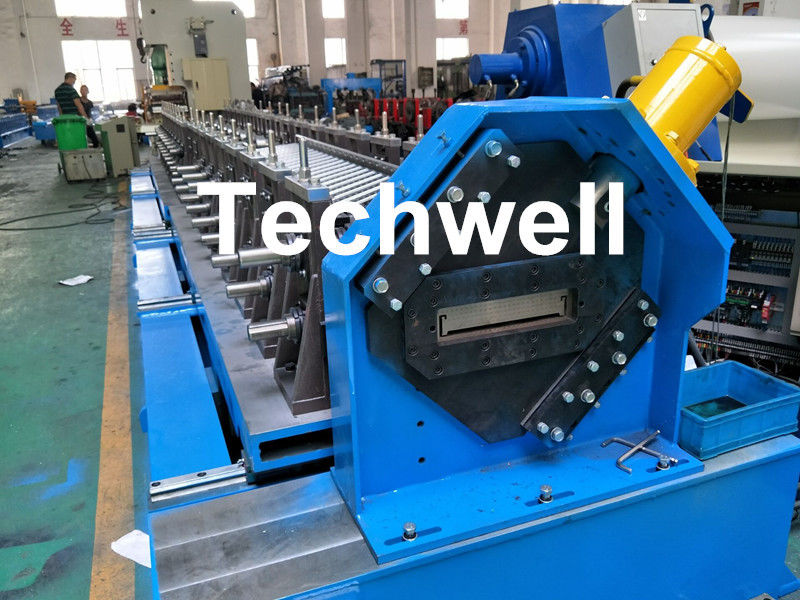

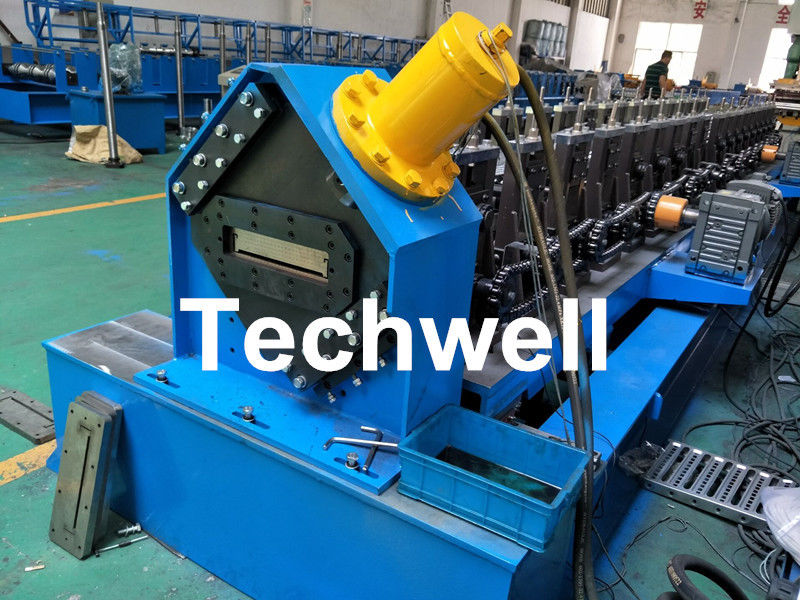

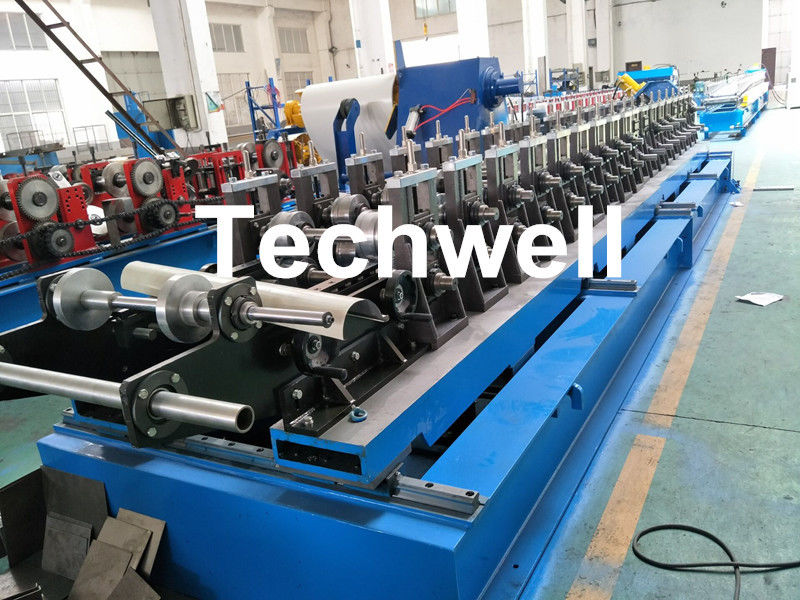

   Machine Pictures



Auto Changeover Between 150 And 300mm Cable Tray Profile Roll Forming Machine 1
