Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand

China Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand supplier
Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand supplier Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand supplier Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand supplier Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand supplier

Large Image :  Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CBT300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Bare Package
Delivery Time: 60-80 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 Sets
Contact Now
Detailed Product Description
Material: Hot-dip Galvanizing Steel Strip Rolling Product Length: 0 Limited, 0-any Mm
Working Speed: About 0-15m/min Forming Motor: 15KW
Roller Material: High Grade GCr15 Steel, And Roller Surface With Hard Chrome ≥ 0.05mm Machine Frame: High Grade Steel Welded And Tempering Treatment

Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand



   Main Specifications







 1). 4 Ton Hydraulic Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Description: Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.

  3. Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling

  4. Electric releasing coil, hydraulic expanding, tension

  5. Weight capacity: 4 Ton

  6. I.D: 508mm

  7. Motor Power: 4.0KW

  8. Hydraulic System Power: 3KW





 2). 7 Roller Leveling Machine

  1. 2 Rollers pinch feeding, 7 rollers leveling
  2. leveling roller diameter: about Φ 90mm
  3. Leveling roller material: high grade 40Cr
  4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  5. Leveling motor power: 3KW





 3). Servo Feeding Machine

  1. Servo motor power: 3KW
  2. Servo motor brand: YASKAWA (JAPAN)
  3. To exact accurately feed the sheet into punching machine according to the set program





 4). Hydraulic Pre-Punching Machine

  1. Punching Die: Cr12 Mov, quenching process
  2. Punching Die size: according to drawing
  3. Punching Power: 15KW
  4. Punching controlled by PLC





 5). Main Cable Tray Roll Forming Machine

  1. Forming material thickness: 1.5-2.5mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
  5. Shaft Diameter: Φ85mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 18 stations
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 15KW
  11. Width adjustable motor 1.5KW
  12. Size adjustment: electrical power adjustment
  13. Drive type: Chain Drive





 6). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: Hydraulic Post-cutting after roll forming,
  2. When Cutting, Machine stop
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic Station Power: 15KW





   Main Components



  • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
  • Leveling Device ------------------------------------------------------------ 1 Unit
  • Servo Feeding -------------------------------------------------------------- 1 Unit
  • Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
  • Main Roll Forming Machine ---------------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------------------------1 Unit
  • PLC Electrical Control Board -------------------------------------------- 1 Unit
  • Hydraulic Stations ---------------------------------------------------------- 1 Unit
  • Run Out Table --------------------------------------------------------------- 1 Unit



   Reference Profile Drawing

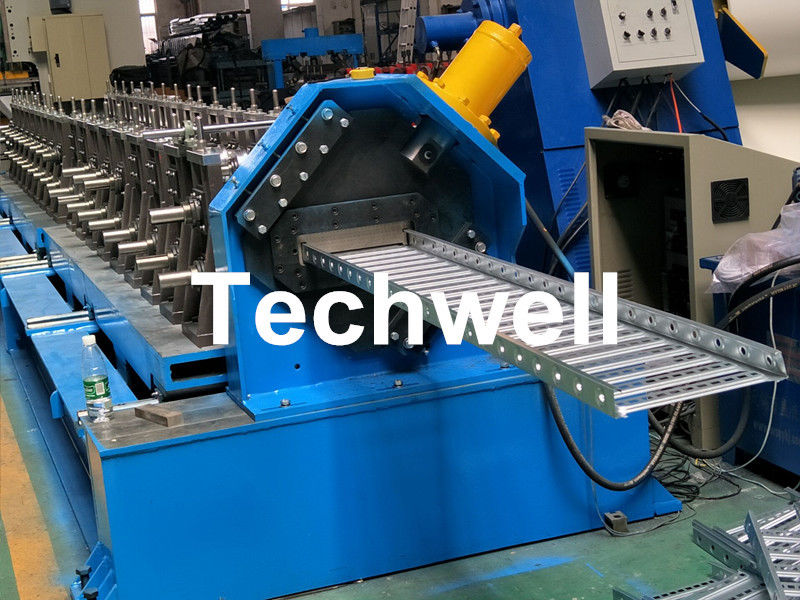

Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand





   More Machine Pictures

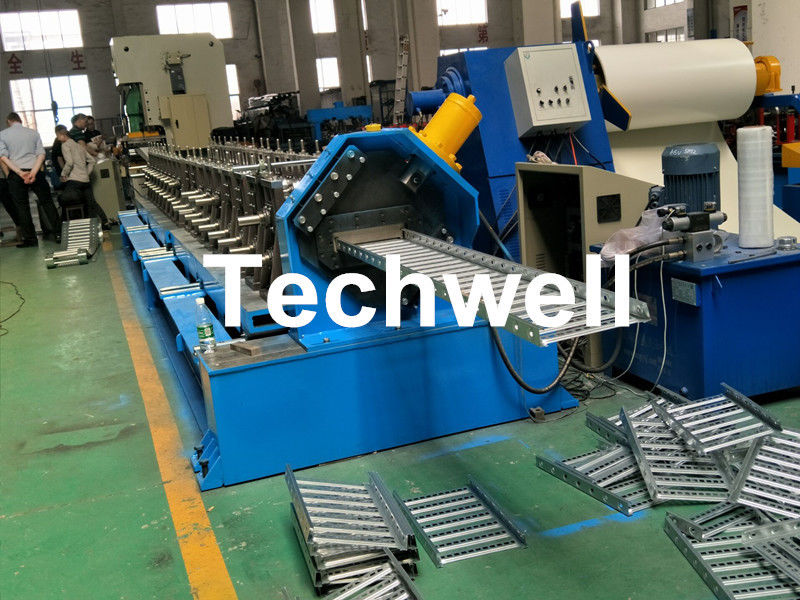

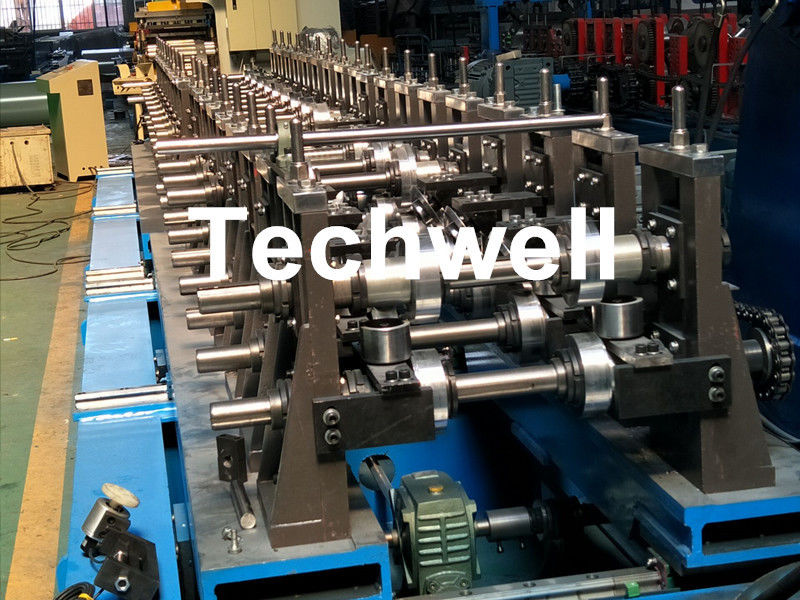

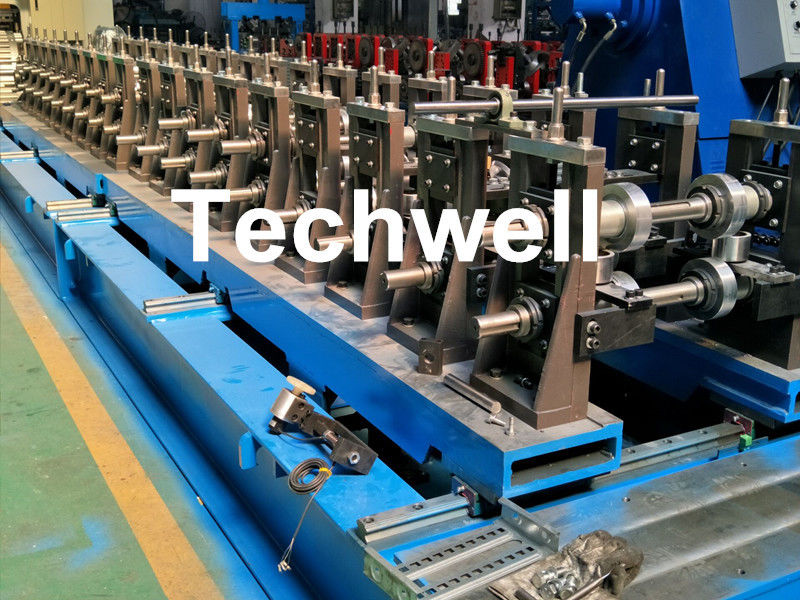

Galvanized Steel Cable Tray Roll Forming Machine With 18 Stations Forming Roller Stand
