Place of Origin:
China
Brand Name:
TECHWELL
Certification:
CE, ISO
Model Number:
TW-C300
Contact Us

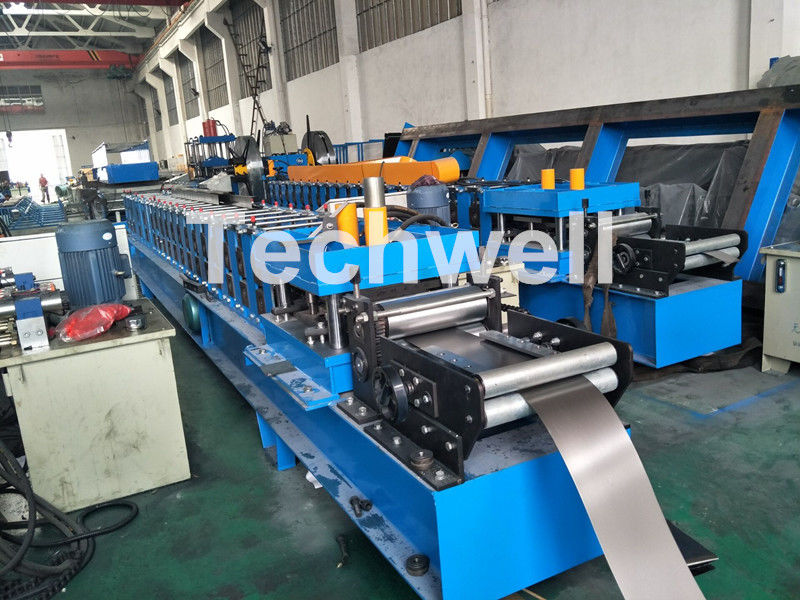

Customized Cold Roll Forming Machine For Making C Purlin Profile / C Channel Machine
Main Technical Specifications
| Items | Specifications | |
| Coil Material | Raw Material | 1.5-3.0mm, Galvanized Coils, Cold Rolled Coils |
| Decoiler / Uncoiler | Coil Width | Max. 1500mm |
| I.D | 400-520mm | |
| O.D | Max. 1500mm | |
| Weight capacity | Max. 5 Ton | |
| Main Roll Forming Part | Forming Stations | 16 Stations ( Depend on Profiles ) |
| Roller material | GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm | |
| Diameter of shaft | Φ80mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 15KW | |
| Hydraulic Punching Device | Punching type | Hydraulic punching type |
| Punching mould size | According to drawing | |
| Hydraulic power | 11KW | |
| Cutting | Cutting type | Hydraulic cutting |
| When cutting, machine stop | ||
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
Working Flowing Chart
Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table
Main Components
Applications
C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure

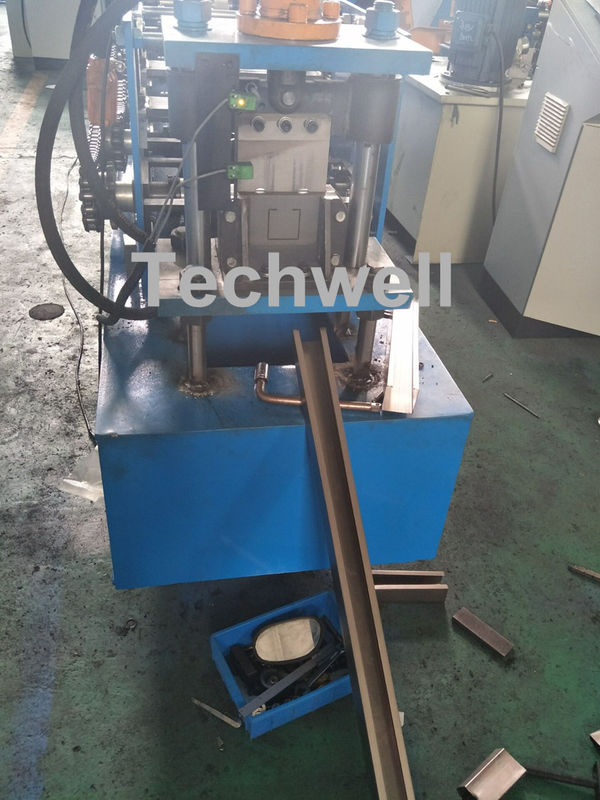

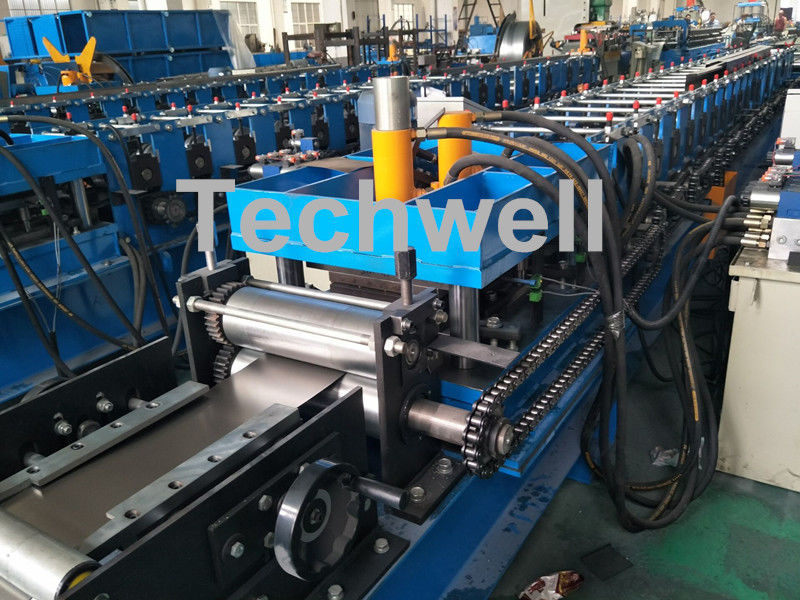

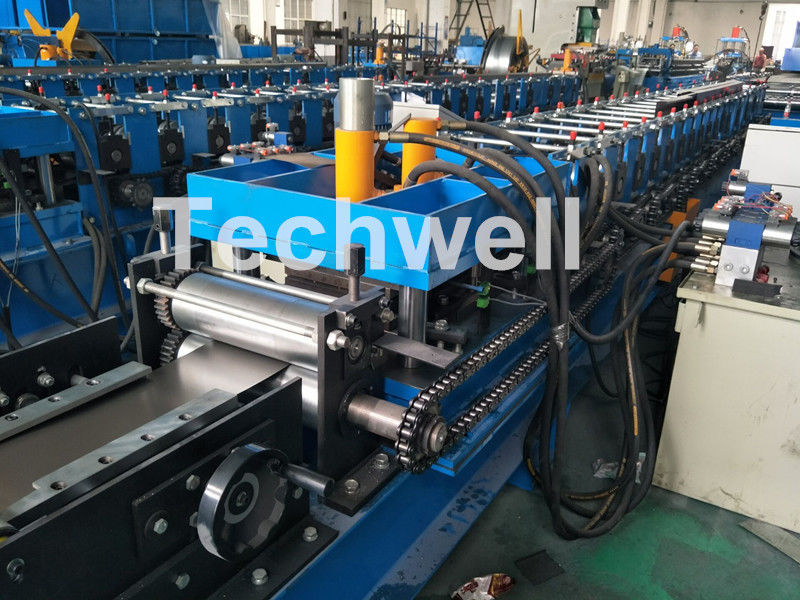

More Machine Pictures
