Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil

China Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil supplier
Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil supplier Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil supplier Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil supplier Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil supplier

Large Image :  Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Roller Material: GCr15 Steel, Quenched And Heated Process Decoiler: Manual Or Hydraulic Decoiler ( Customer Can Choose )
Principle Axis: 75mm Diameter Forming Speed: 0-15m/min
Main Power: 18KW Electrical Control: PLC Frequency Control System With Touch Screen

Forming Motor Power 15kw C Channel Cold Roll Forming Machine For GI Or Carbon Steel Coil





   Description of C Channel Profile





 1. This C purlin roll forming machine adopt coil production material to form C Profiles through 5 Ton manual decoiler, pinch feeding, leveling rollers, main roll forming part, Punching unit, flying cutting, PLC control system and Non-power type support table.



 2. The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.





   Working Flowing Chart



Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table





   Technical Specifications



  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: about 18
  • Principle axis: 80mm diameter
  • Forming speed: 0-15m/min
  • Drive type: gear box transmission
  • Roller material: GCr15 steel, quenched and heated process
  • Main power: 18 KW
  • Hydraulic power: 11KW
  • Punching: hydraulic punching
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



   Main Components



Decoiler 1 Unit
Feeding & Leveling 1 Unit
Hydraulic Pre-cutting Device 1 Unit
Main roll forming machine 1 Unit
Hydraulic punching device 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit





   Applications



C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure





   Competitive Advantages



  1. High Quality
  2. Reasonable Price
  3. Good after Service
  4. 1 Year Warranty
  5. More Than 10 Years Experience
  6. Simple to operate when assemble
  7. Easy to handle the products
  8. Direct manufacturer, provide with high quality and best price.

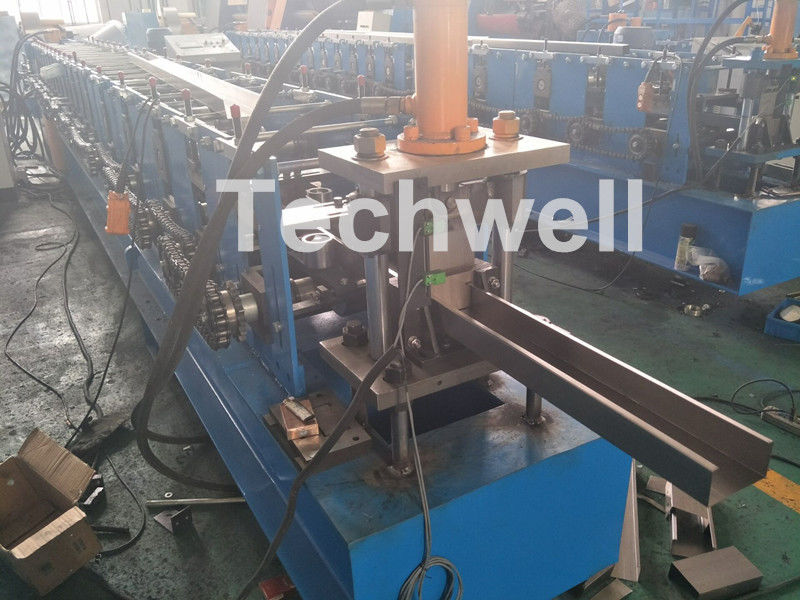

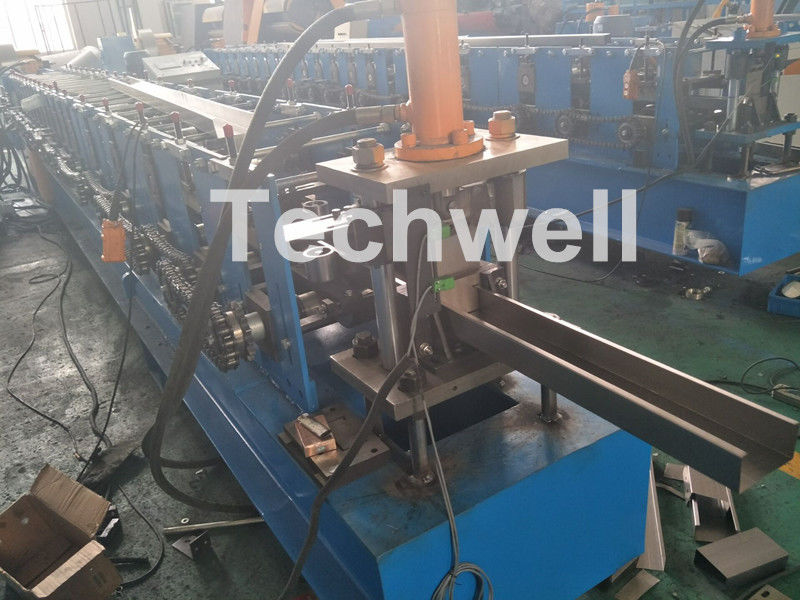

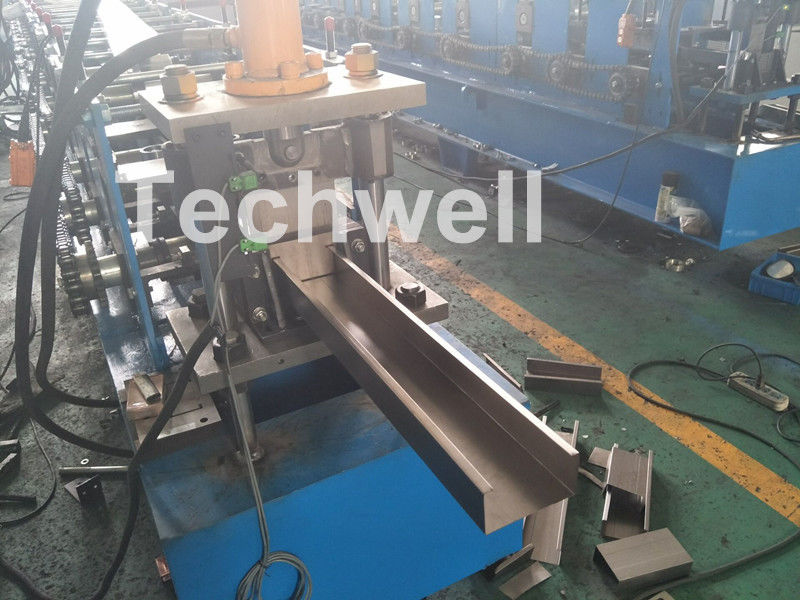

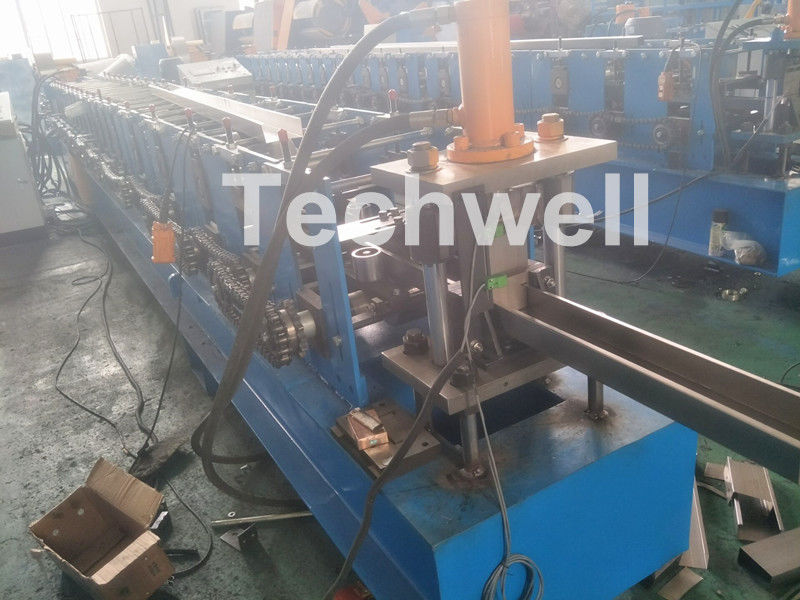

   Workshop Machine Pictures



Forming Motor Power 15kw C Channel Roll Forming Machine For GI Or Carbon Steel Coil
