85mm Shaft Diameter Cable Tray Roll Forming Machine With GI or Carbon Steel Raw Material

Main Technical Specifications

Uncoiling Machine
Decoiler Type	Hydraulic uncoiler
Electric releasing coil, hydraulic expanding, tension
I.D	508, 610mm
O.D	Max. 1500mm
Leveling Machine
Leveling	2 Rollers pinch feeding, 7 rollers leveling
Leveling roller diameter	about Φ 90mm
Leveling motor power	4KW
Leveling roller material	high grade 40Cr
Heat treatment of leveling roller	surface Hi-frequency quench treatment
Servo Feeding Machine
Feeding Type	Servo Feeding
Servo motor power	3KW
To exact accurately feed the sheet into punching machine according to the set program
Press Machine
Punching Die	Cr12 Mov, quenching process
Punching Die size	according to drawing
Punching Power	15KW
Punching controlled by PLC
Hydraulic Pre-Cutting Machine
Cutting blade material	Cr12Mov, Quench treatment, HRC58-62
Hydraulic Station Power	15KW
Main Cable Tray Roll Forming Machine
Forming material thickness	1.5-2.5mm
Forming material type	GI or Carbon Steel
Machine Frame	high grade steel welded and tempering treatment
Shaft Material	40Cr high grade Steel tempering treatment (HB220-260)
Shaft Diameter	Φ 85mm
Bearing	HRB bearing ( Top Chinese brand )
Roller Material	high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
Forming Station	18 stations
Forming Speed	0-15m/min
Forming Motor	15KW
Size adjustment: electrical power adjustment
Drive type	Chain Drive

Main Components

Hydraulic Decoiler --------------------------------------------------------- 1 Unit
Leveling Device ------------------------------------------------------------ 1 Unit
Servo Feeding -------------------------------------------------------------- 1 Unit
Punching Machine ---------------------------------------------------------- 1 Unit
Hydraulic Pre-Cutting -------------------------------------------------------1 Unit
Main Roll Forming Machine ---------------------------------------------- 1 Unit
PLC Electrical Control Board -------------------------------------------- 1 Unit
Hydraulic Stations ---------------------------------------------------------- 1 Unit
Run Out Table --------------------------------------------------------------- 1 Unit

Sample Pictures of Cable Tray Roll Forming Machine

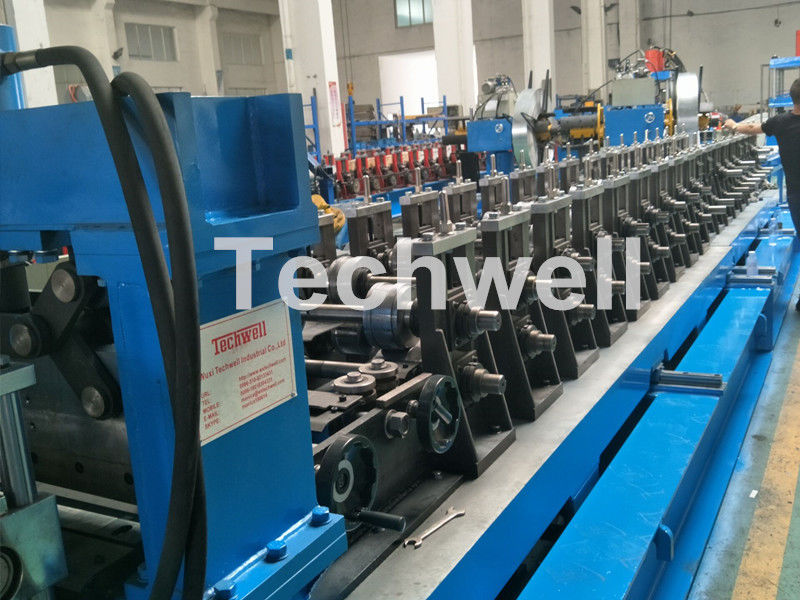

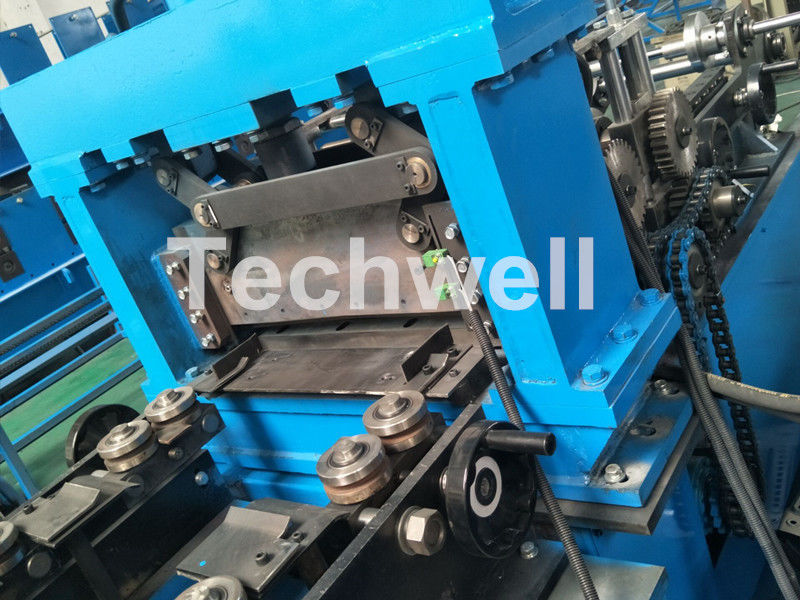

85mm Shaft Diameter Cable Tray Roll Forming Machine With GI or Carbon Steel Raw Material 0

More Machine Pictures

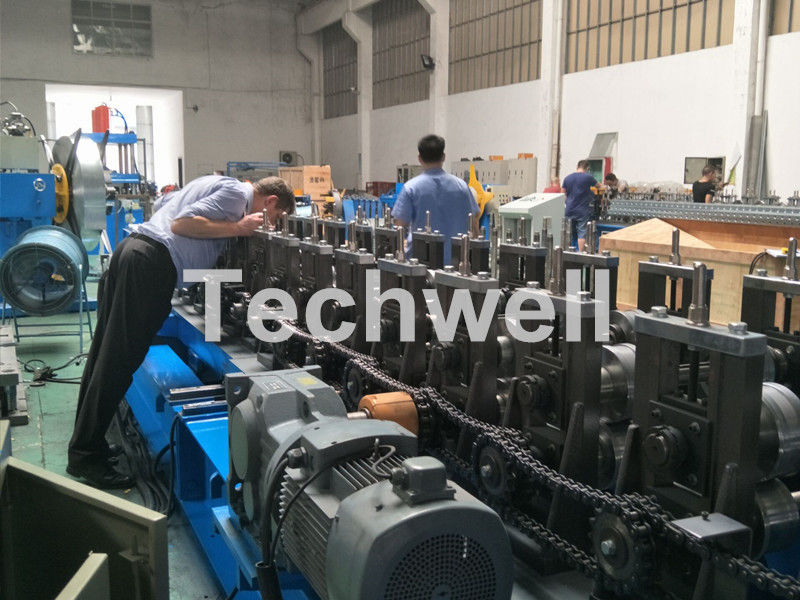

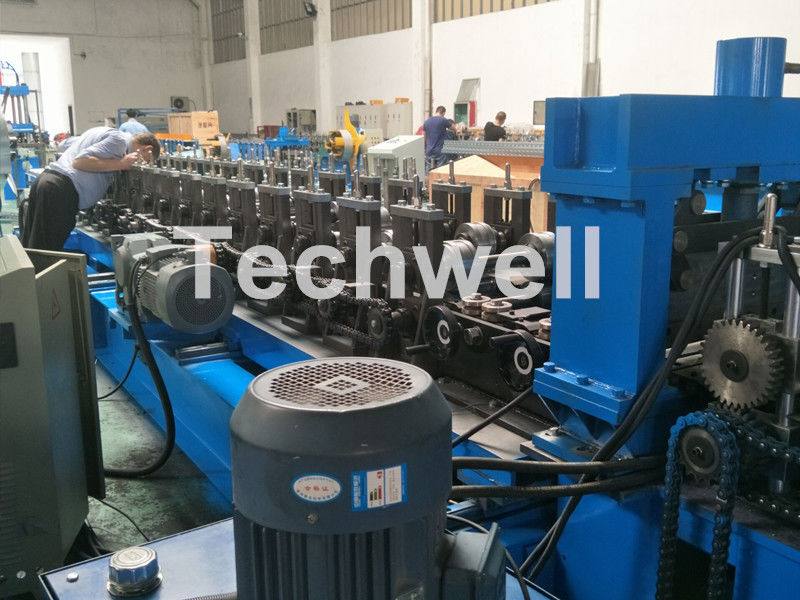

85mm Shaft Diameter Cable Tray Roll Forming Machine With GI or Carbon Steel Raw Material 1
