15 KW Tray Cable Cold Roll Forming Machine With 18 Stations Forming Roller Stand

15 KW Tray Cable Cold Roll Forming Machine With 18 Stations Forming Roller Stand

Cable Tray Making Machine

cable tray manufacturing machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-CBT300

Contact Us

Request A Quote
Product Details
Material Thickness:
1.5-2.5mm
Machine Frame:
High Grade Steel Welded And Tempering Treatment
Forming Material:
GI Or Carbon Steel
Shaft Diameter:
80mm
Punching:
Press Machine
Cutting:
Hydraulic Pre-Cutting
Product Description

15 KW Forming Motor Power Tray Cable Cold Roll Forming Machine With 18 Stations Forming Roller Stand





   Main Technical Specifications



Uncoiling Machine



Decoiler Type Hydraulic uncoiler
Electric releasing coil, hydraulic expanding, tension
I.D 508, 610mm
O.D Max. 1500mm

Leveling Machine



Leveling 2 Rollers pinch feeding, 7 rollers leveling
Leveling roller diameter about Φ 90mm
Leveling motor power 4KW
Leveling roller material high grade 40Cr
Heat treatment of leveling roller surface Hi-frequency quench treatment

Servo Feeding Machine



Feeding Type Servo Feeding
Servo motor power 3KW
To exact accurately feed the sheet into punching machine according to the set program

Press Machine



Punching Die Cr12 Mov, quenching process
Punching Die size according to drawing
Punching Power 15KW
Punching controlled by PLC

Hydraulic Pre-Cutting Machine



Cutting blade material Cr12Mov, Quench treatment, HRC58-62
Hydraulic Station Power 15KW

Main Cable Tray Roll Forming Machine



Forming material thickness 1.5-2.5mm
Forming material type GI or Carbon Steel
Machine Frame high grade steel welded and tempering treatment
Shaft Material 40Cr high grade Steel tempering treatment (HB220-260)
Shaft Diameter Φ 85mm
Bearing HRB bearing ( Top Chinese brand )
Roller Material high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
Forming Station 18 stations
Forming Speed 0-15m/min
Forming Motor 15KW
Size adjustment: electrical power adjustment
Drive type Chain Drive


   Working Flow Chart



Decoiling --- Guiding & Leveling --- Punching --- Hydraulic Pre-Cutting --- Roll Forming --- Run-out Table





   Sample Pictures

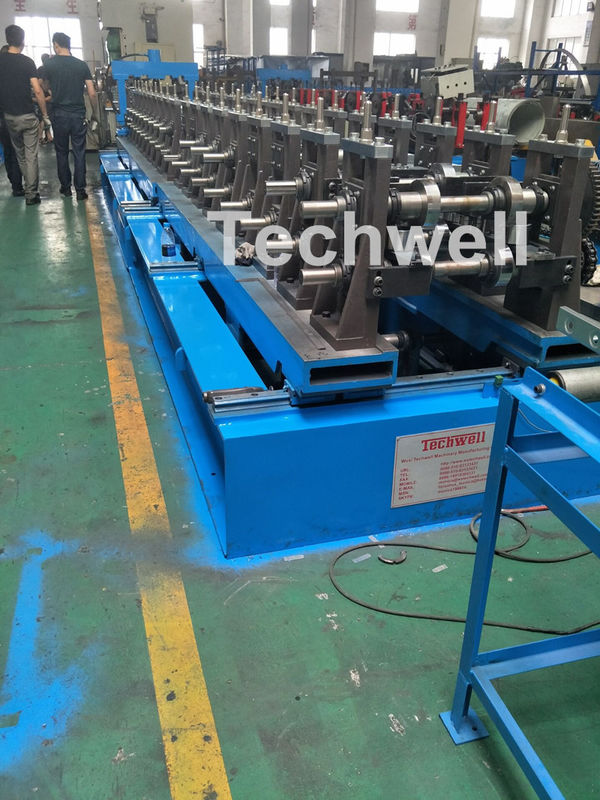

15 KW Tray Cable Cold Roll Forming Machine With 18 Stations Forming Roller Stand 0





   Applications


Cable tray, cable ladder, cable profile, tray profile


   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   More Machine Pictures

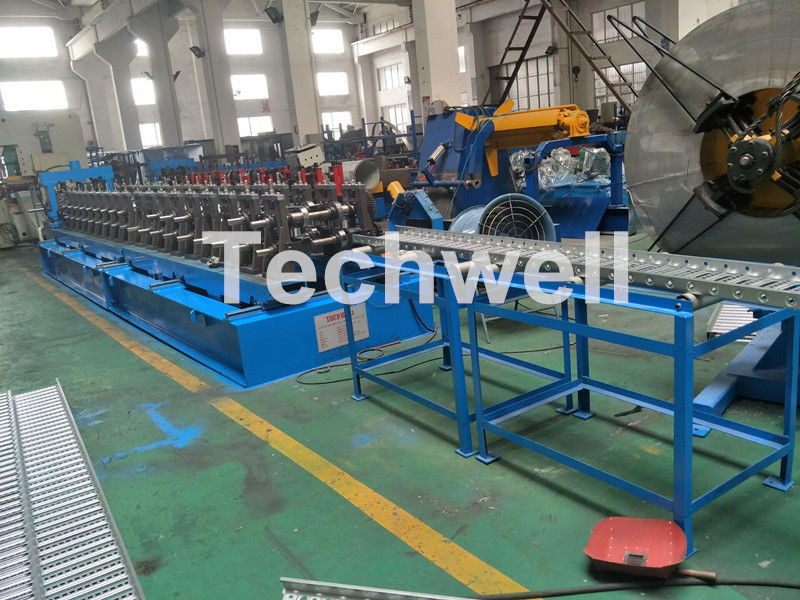

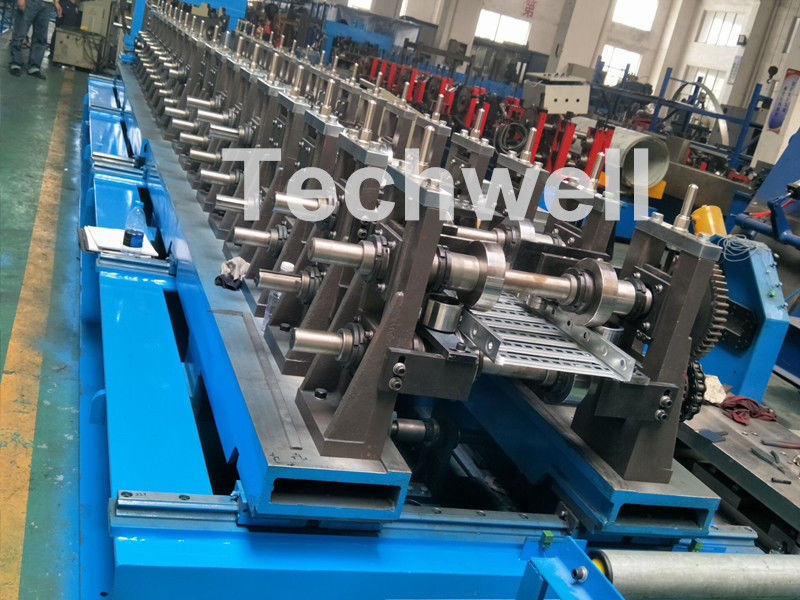

15 KW Tray Cable Cold Roll Forming Machine With 18 Stations Forming Roller Stand 1
