PLC Frequency Control Solar Strut Profile Roll Forming Machine With 24 Roller Stations

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

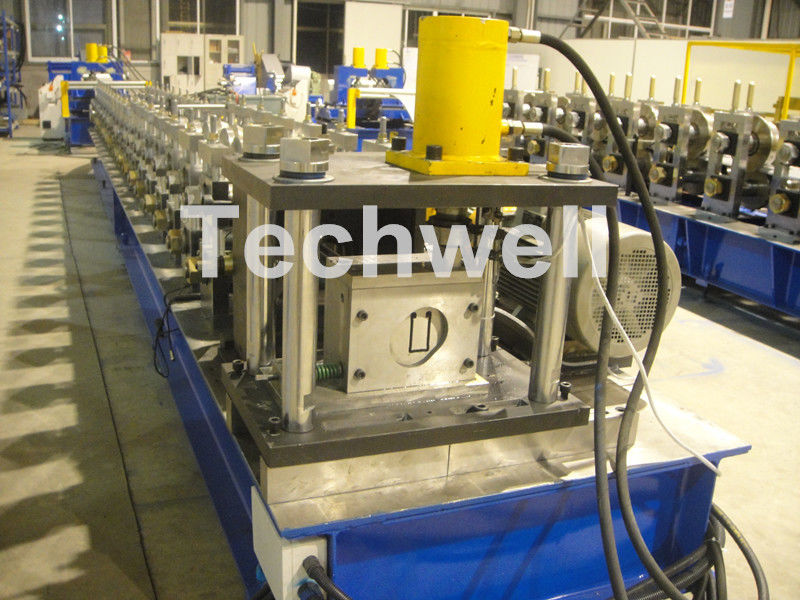

Large Image :  PLC Frequency Control Solar Strut Profile Roll Forming Machine With 24 Roller Stations

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CBT300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Bare Package
Delivery Time: 60-80 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Forming Material Thickness: 1.5-2.5mm Forming Motor: 22KW
Roller Material: GCr15 Steel, HRC58-62, And Roller Surface With Hard Chrome 0.05mm Punching Type: Press Punching Machine
Cutting Blade Material: Cr12Mov, Quench Treatment, HRC58-62 Cutting Power: 4.0KW
High Light:

Roll Former Machine

,

Roll Forming Equipment



PLC Frequency Control Solar Strut Profile Roll Forming Machine With 24 Roller Stations





   Main Technical Specifications



  1. Forming Material: GI
  2. Forming Material Thickness: 1.0-2.5mm
  3. Decoiler type: 3T manual decoiler
  4. I.D: 508-610mm
  5. Leveling device: 7 rollers type leveling (upper 3 rollers, lower 4 rollers)
  6. Feedign type: Servo feeding
  7. Servo motor power: 0.85KW
  8. Punching type: Press machine type
  9. Punching pressure: According to customer's requirements
  10. Punching mould size: According to drawing
  11. Punching Mould: 1 set
  12. Punching power: 7.5KW
  13. Shaft diameter: 70mm
  14. Shaft material: 40Cr high grade steel tempering treatment (HB220-260)
  15. Bearing: HRB bearing
  16. Roller Material: GCr15 steel, HRC 58-62 and roller surface with hard chrome 0.05mm
  17. Forming motor: 22KW
  18. Forming stations: about 24 stations
  19. Cutting type: Hydraulic post-cutting after roll forming
  20. Cuttign blade material: Cr12Mov, Quench treatment, HRC58-62
  21. Hydraulic power: 4.0KW
  22. Hydrualic pressure: 15MPa
  23. Cutting tolerance: +/-1.5mm
  24. Electrical control: PLC frequency control



   Main Components



Decoiler / Uncoiler 1 Unit
Leveling Device (7 Rollers) 1 Unit
Servo Feeding 1 Unit
Servo Control System 1 Unit
Press Machine 1 Unit
Main Roll Forming 1 Unit
Hydrauic Cutting 1 Unit
Hydraulic Station 1 Unit
PLC Electrical Control Board 1 Unit
Support Table 1 Unit

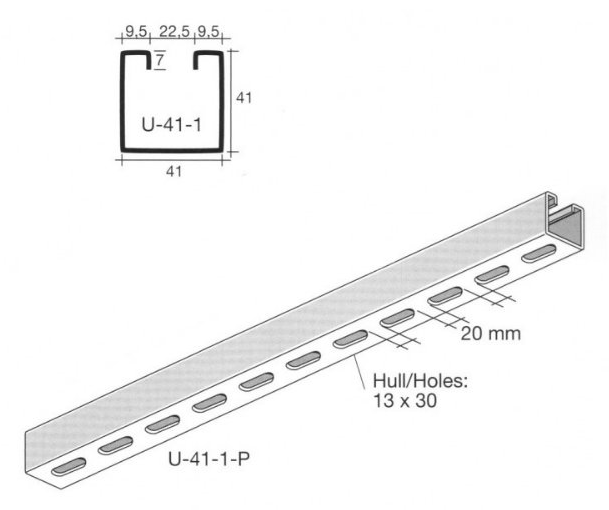

   Reference Profile Drawing



PLC Frequency Control Solar Strut Profile Roll Forming Machine With 24 Roller Stations 0





   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

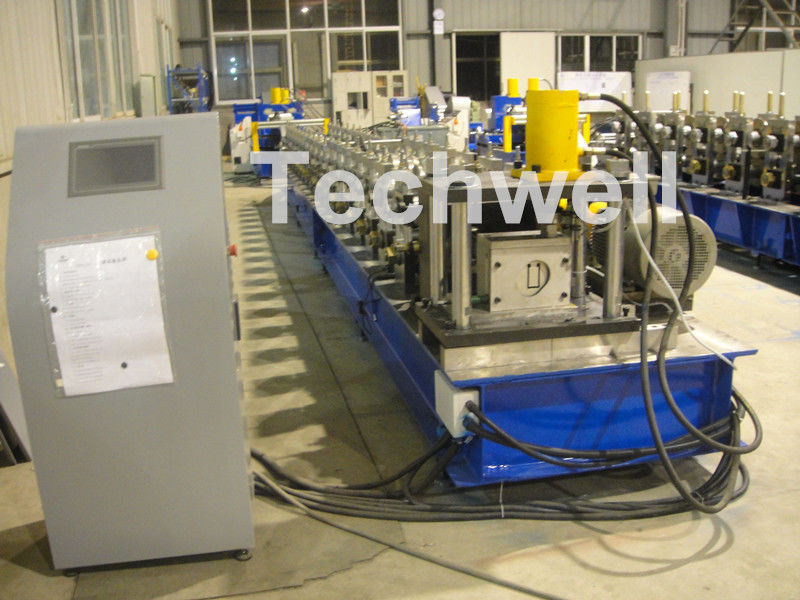

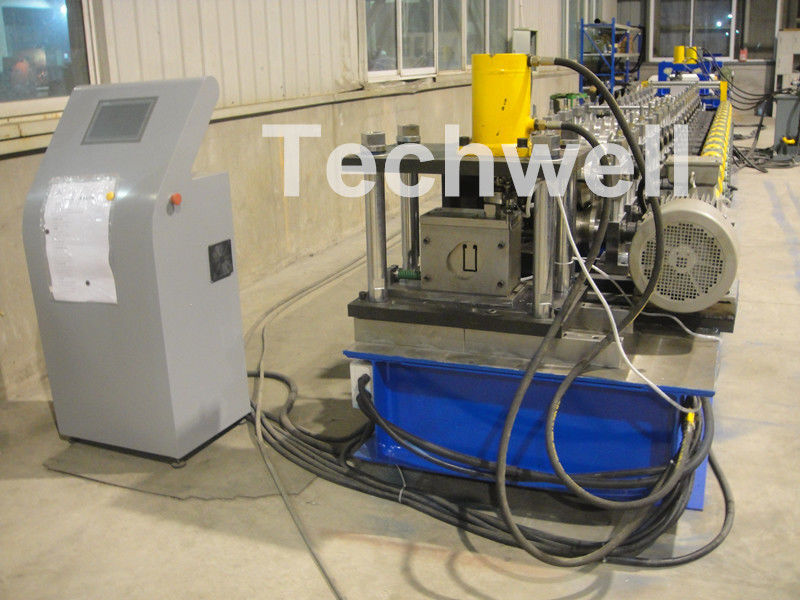

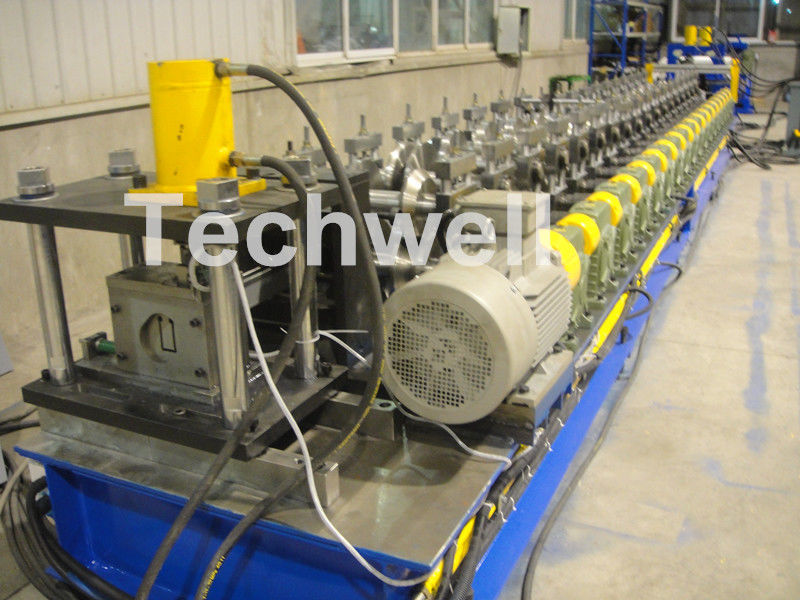

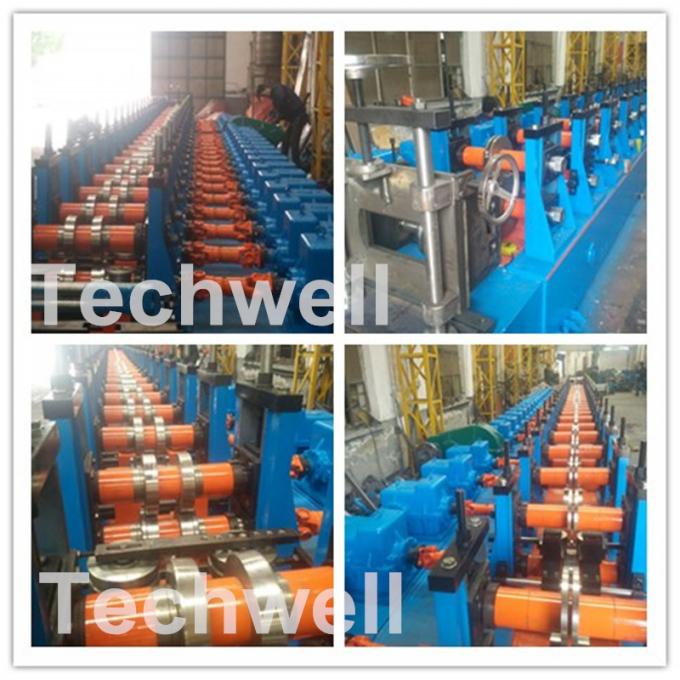

   More Machine Pictures



PLC Frequency Control Solar Strut Profile Roll Forming Machine With 24 Roller Stations 1
