Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets

Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets
Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets

Large Image :  Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RWM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Thickness Of Coil Sheet: 0.3-0.8mm Forming Station: 13-20 Stations (Depend On Drawing)
Drive Type: Chain Transmission Main Power: 5.5KW
Cutting Model: Hydraulic Cutting Hydraulic Power: 3.0KW
High Light:

Roof Sheet Roll Forming Machine

,

roof panel roll forming machine





Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets



   Main Technical Specifications



  1. Forming material type: PPGI, Color steel, GI
  2. Forming material thickness: 0.3-0.8mm, yield strength: 250-350Mpa
  3. Decoiler type: Manual or Hydraulic or Auto Type
  4. I.D: 508-610mm
  5. O.D: Max. 1500mm
  6. Forming stations: about 16 Stations ( Depend on Profiles )
  7. Roller material: 45# steel, surface coated with 0.05mm hard chrome
  8. Diameter of shaft: 76mm
  9. Shaft material: High grade 45# steel
  10. Drive type: chain of transmission
  11. Forming speed: 0-15m/min
  12. Main power: 5.5KW
  13. Cutting type: hydraulic cutting
  14. Cutting die material: Cr12Mov steel, HRC58-62
  15. Cutting power: 3.0KW
  16. Cutting tolerance: 10m+/-1.5mm
  17. Encoder: OMRON Brand
  18. PLC: PANASONIC Brand



   Working Flowing



Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table





   Main Components



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Corrugated Sheet Making Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Support Tables 2 Units





   Competitive Advantages



  • Copra designing software
  • 5-8 technicians every month specially do international installation and debugging
  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

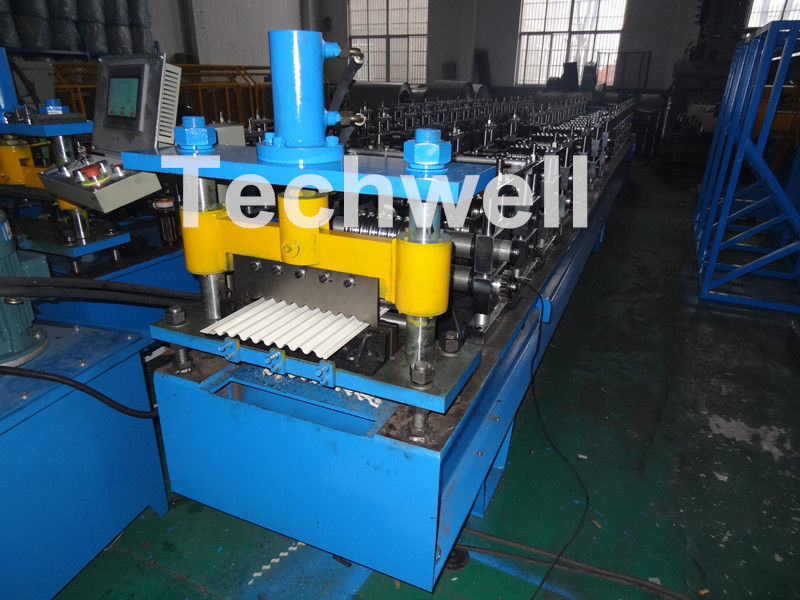

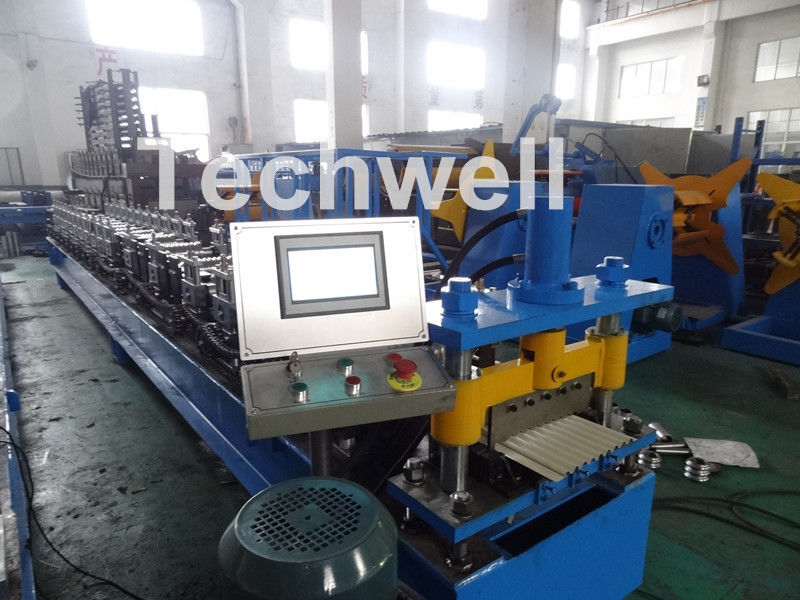

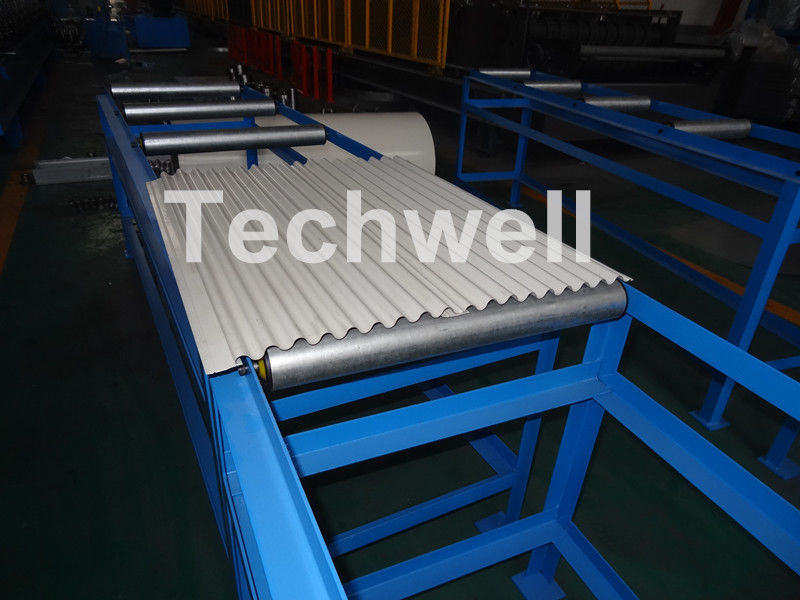

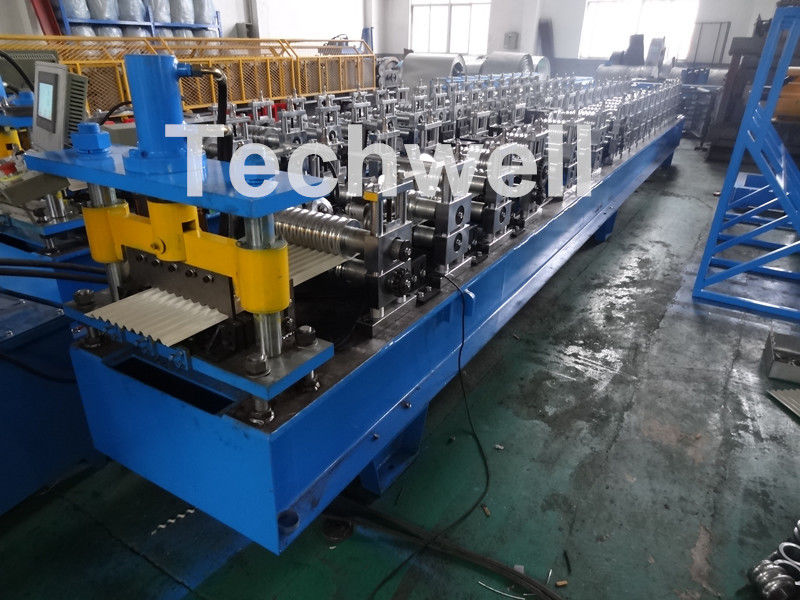

   More Machine Pictures



Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets 0

Corrugated Profile Roof Roll Forming Machine For Making The Corrugated Sheets 1
